Resistance/Operation Inspection

1. REMOVE V-BANK COVER
2. REMOVE BATTERY CLAMP COVER AND AIR CLEANER INLET
3. REMOVE INTAKE AIR CONNECTOR
4. INSPECT INJECTOR RESISTANCE
a. Disconnect the 8 injector connectors.

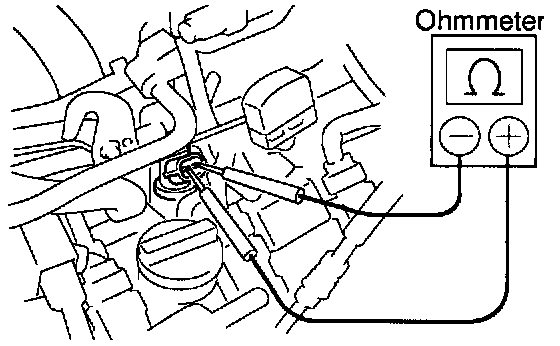

b. Using a ohmmeter, measure the resistance between the terminals.

Resistance: 13.4-14.2 ohm at 20°C (68°F)

If the resistance is not as specified, replace the injector.

c. Reconnect the 8 injector connectors.

5. REINSTALL INTAKE AIR CONNECTOR
6. REINSTALL BATTERY CLAMP COVER AND AIR CLEANER INLET
7. REINSTALL V-BANK COVER
