Leak Detection Solenoid: Testing and Inspection
VSV For Vapor Pressure Sensor1. REMOVE RH FRONT FENDER LINER
2. REMOVE VSV

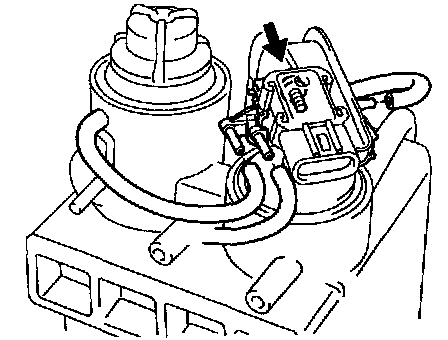

a. Disconnect the VSV connector.
b. Disconnect the 3 EVAP hoses from the VSV.
c. Remove the screw and VSV.
3. INSPECT VSV FOR OPEN CIRCUIT

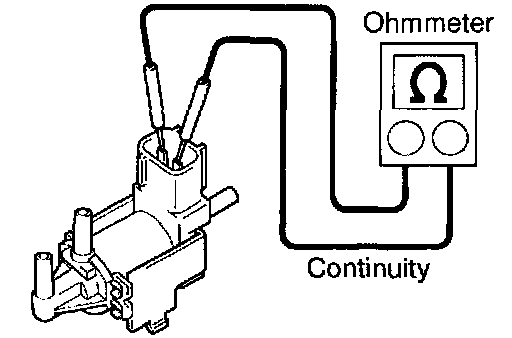

Using an ohmmeter, check that there is continuity between the terminals.
Resistance: 37-44 ohms at 20°C (68°F)
If there is no continuity, replace the VSV.
4. INSPECT VSV FOR GROUND

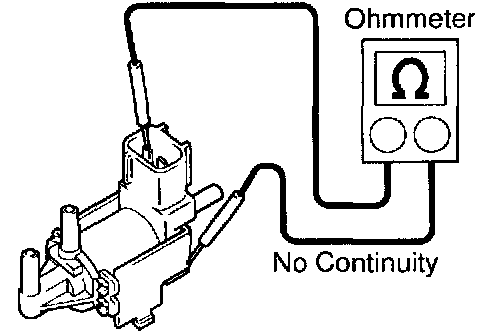

Using an ohmmeter, check that there is no continuity between each terminal and the body.
If there is continuity, replace the VSV.
5. INSPECT VSV OPERATION

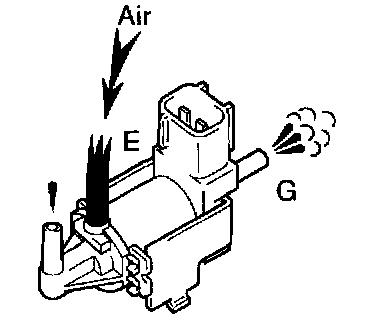

a. Check that the air flows from port E to G.

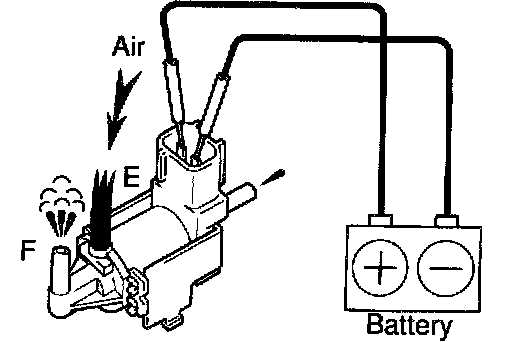

b. Apply battery voltage across the terminals.
c. Check that the air flows from port E to F.
If operation is not as specified, replace the VSV.
6. REINSTALL VSV
7. REINSTALL RH FRONT FENDER LINER
