Canister Purge Solenoid: Testing and Inspection

VSV For Evaporative Emission (EVAP)

1. REMOVE V-BANK COVER
2. REMOVE VSV
3. INSPECT VSV FOR OPEN CIRCUIT

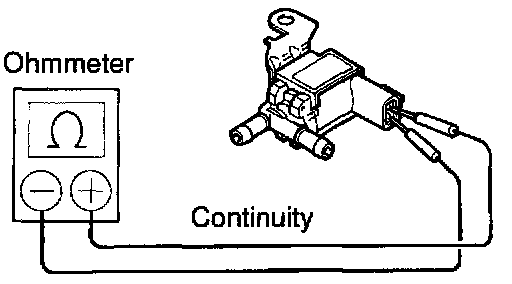

Using an ohmmeter, check that there is continuity between the terminals.

Resistance: 30-34 ohms at 20°C (68°F)

If there is no continuity, replace the VSV.

4.INSPECT VSV FOR GROUND

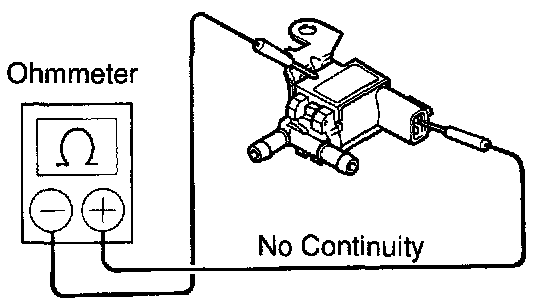

Using an ohmmeter, check that there is no continuity between each terminal and the body.
If there is continuity, replace the VSV.

5. INSPECT VSV OPERATION

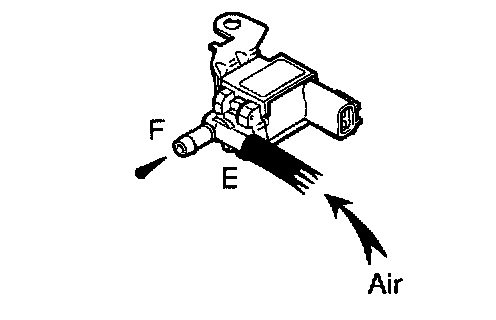

a. Check that the air flows with difficulty from port E to F.

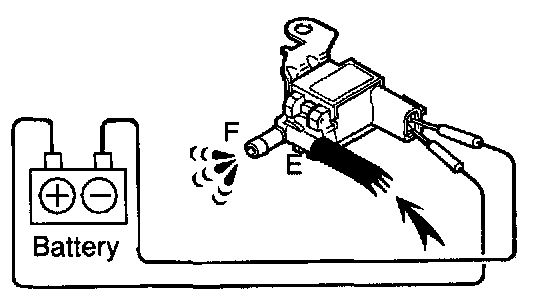

b. Apply battery voltage across the terminals.
c. Check that the air flows without resistance from port E to F.
If operation is not as specified, replace the VSV.

6. REINSTALL VSV

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

7. REINSTALL V-BANK COVER
