Home >> Lexus >> 1999 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Component Locations

Component Locations

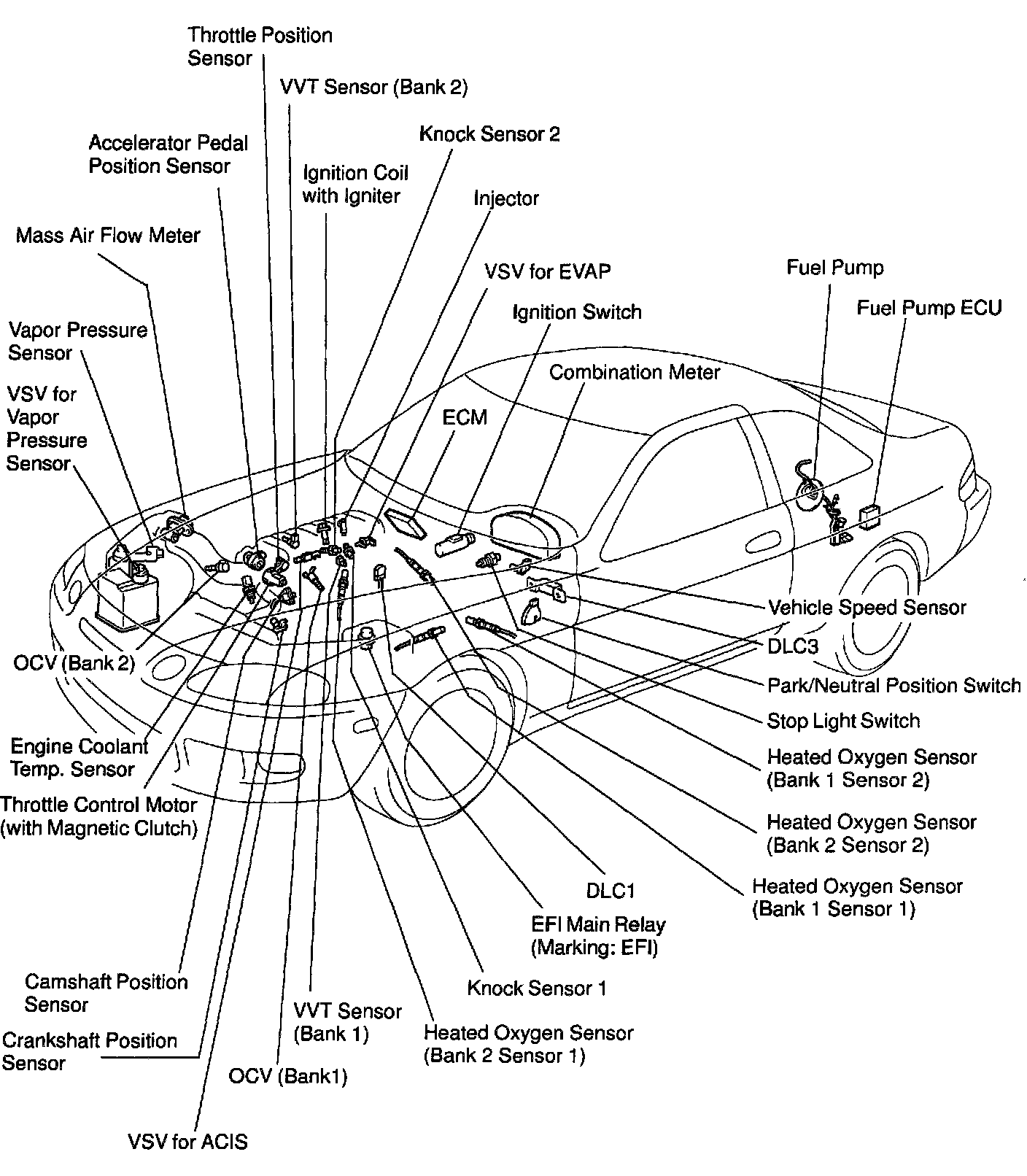

PARTS LOCATION




FIG 26




FIG 27




FIG 30




FIG 31




FIG 32
