Splice Points

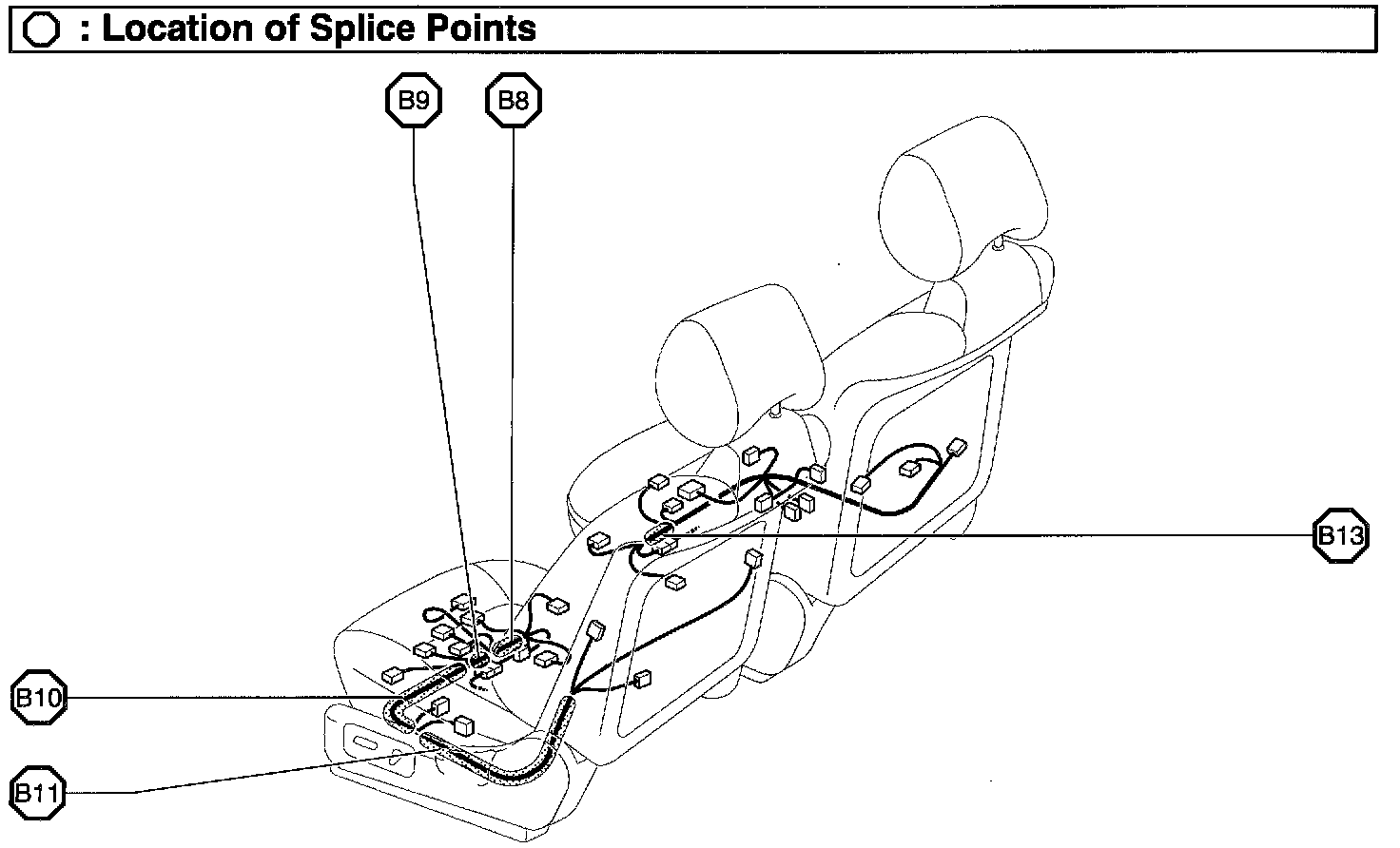

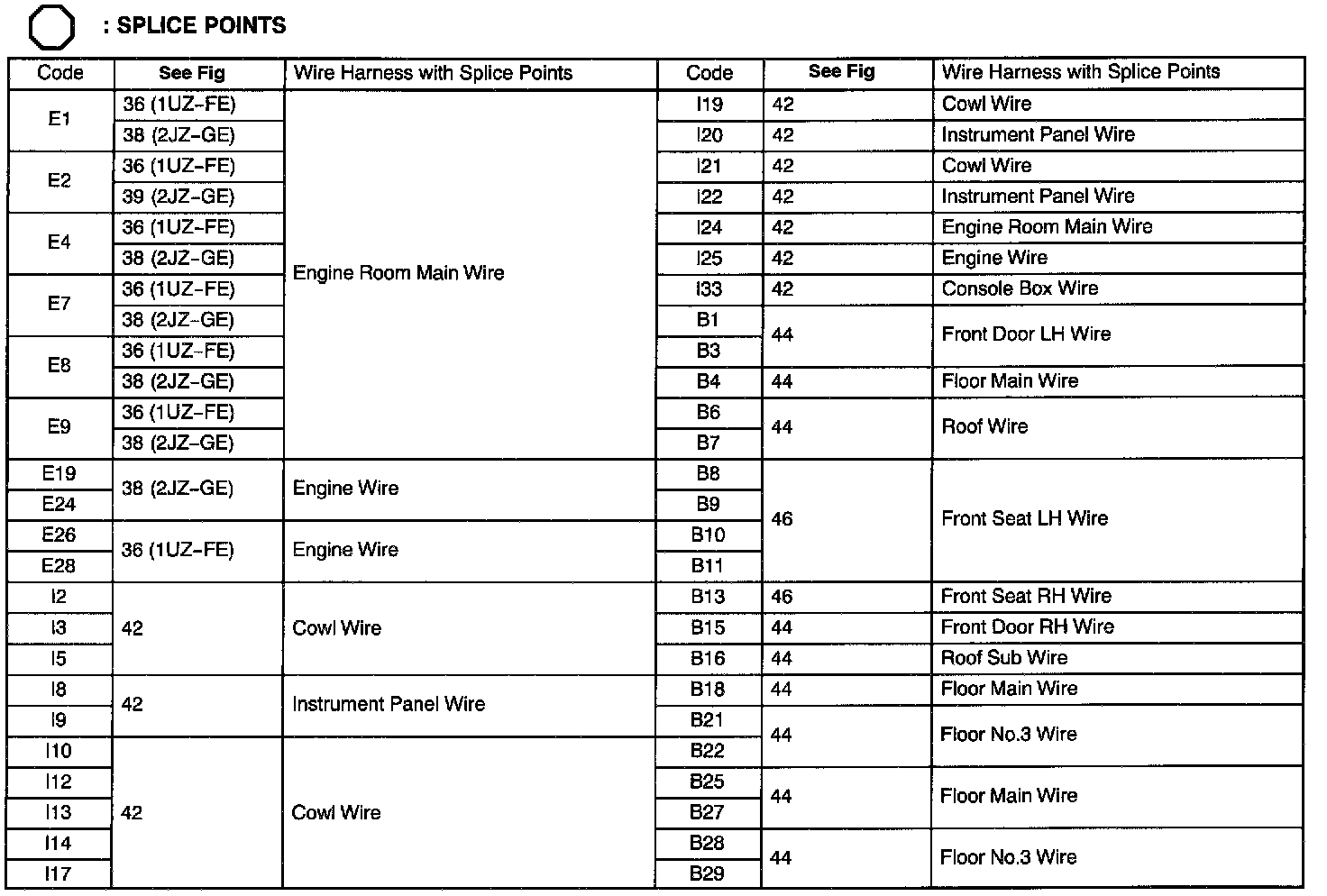

SPLICE POINTS

FIG 36

FIG 38

Location Of Ground Points (Fig 40):

FIG 40

FIG 42

FIG 44

FIG 46
