Front

REPLACEMENT
1. REMOVE FRONT WHEEL
2. REMOVE FRONT BRAKE CALIPER AND DISC

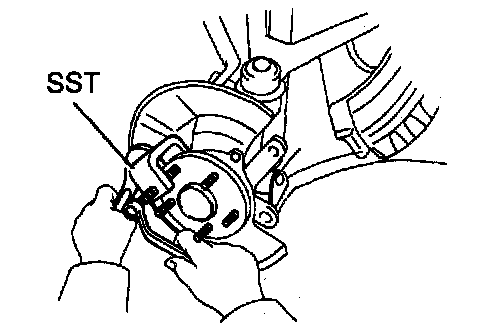

3. REMOVE HUB BOLT
Using SST, remove the hub bolt.
SST 09628-10011

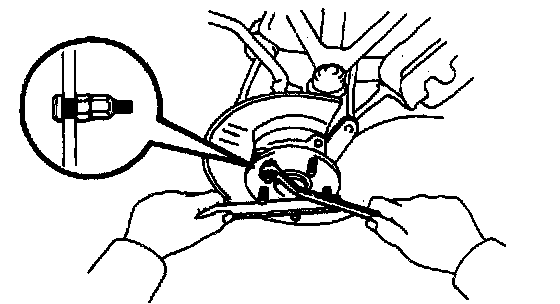

4. INSTALL HUB BOLT
Install a washer and nut to the bolt, as shown in the illustration, and install a new hub bolt by torquing the nut.
5. INSTALL FRONT DISC AND BRAKE CALIPER
6. INSTALL FRONT WHEEL

Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
