Component Inspection

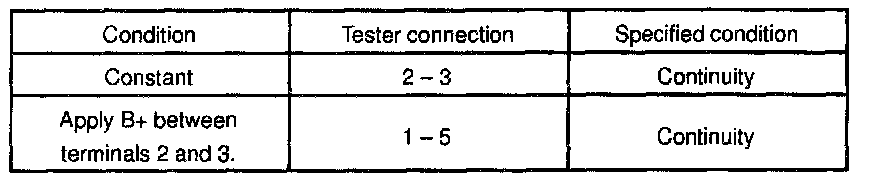

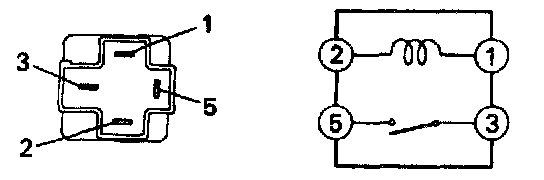

INSPECT TAILLIGHT CONTROL RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT TAILLIGHT CONTROL RELAY CIRCUIT
