Trunk Lamp Switch: Testing and Inspection

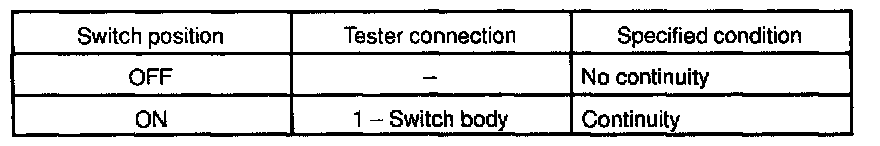

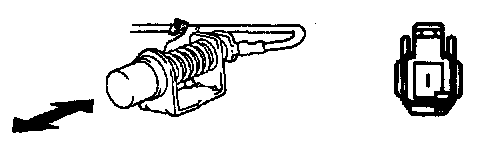

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY
If operation is not as specified, replace the switch.

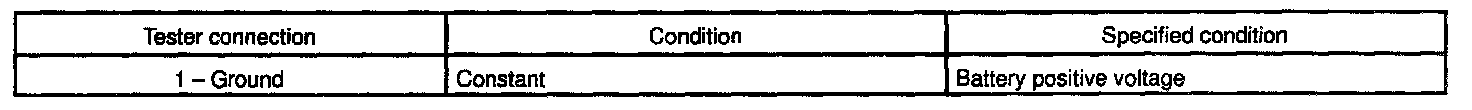

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CIRCUIT
Disconnect the connector from the switch and inspect the connector on the wire harness,
if circuit is not as specified, inspect the power source or wire harness.
