Home >> Lexus >> 1999 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Brake Light Switch >> Testing and Inspection >> Stop Light Circuit

Stop Light Circuit

49 - Stop Light Switch Circuit

CIRCUIT DESCRIPTION

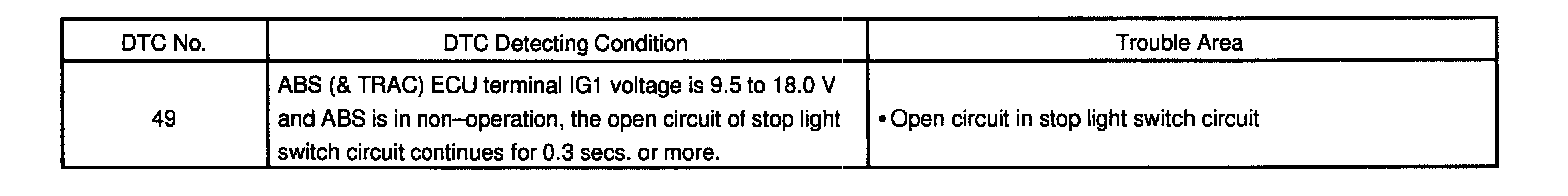

DETECTING CONDITIONS




WIRING DIAGRAM

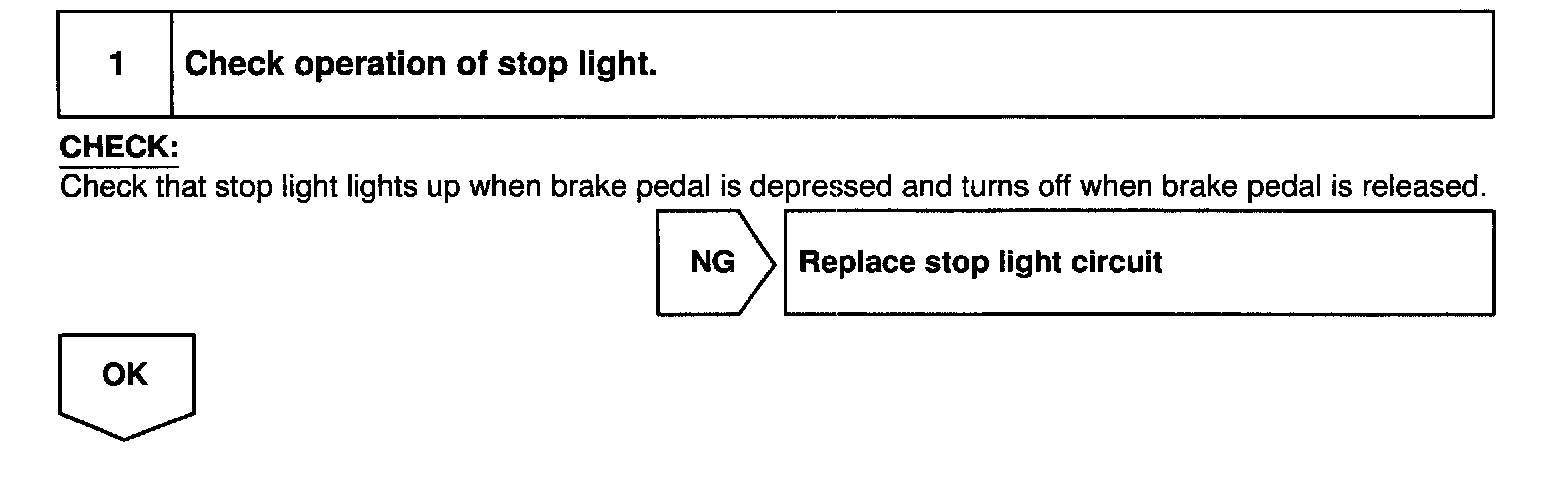

Step 1:

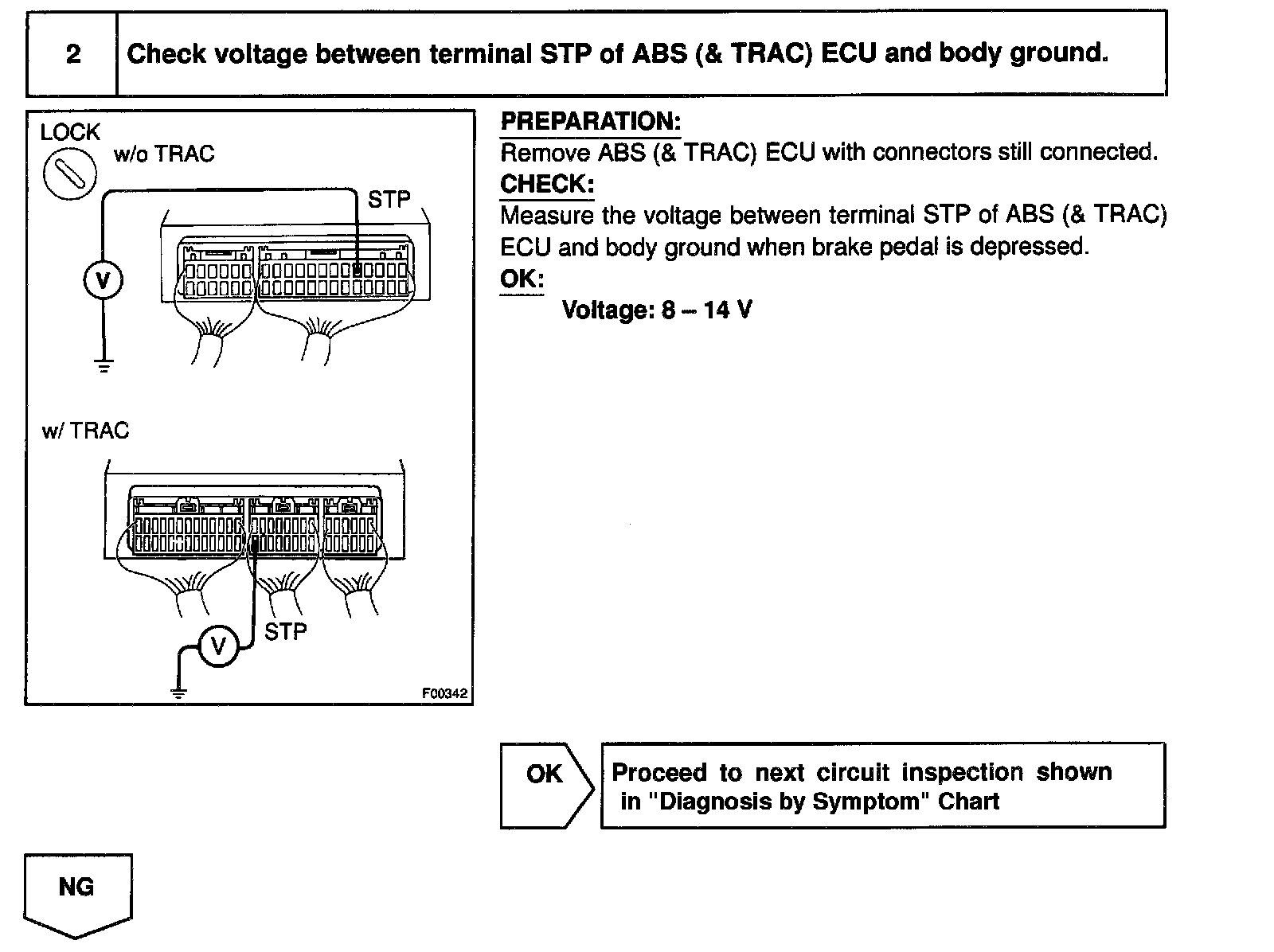

Step 2:

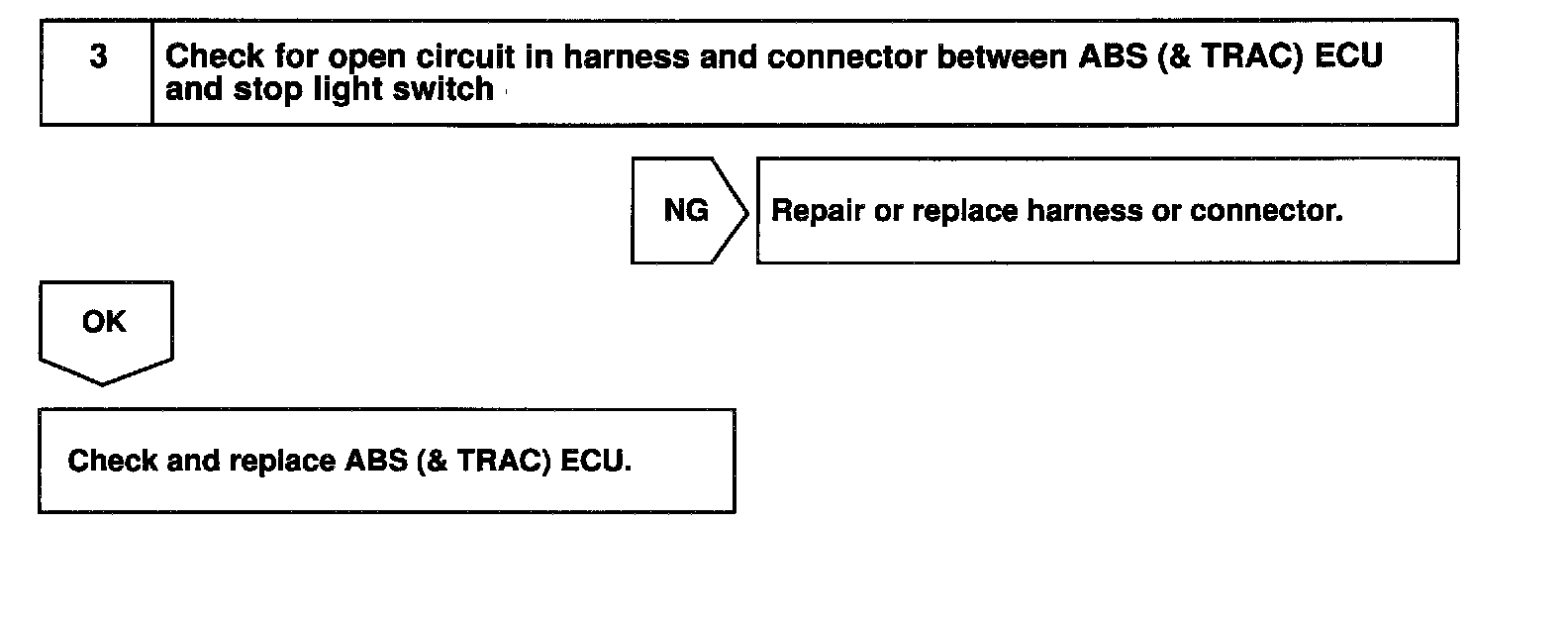

Step 3:




INSPECTION PROCEDURE
