Fog/Driving Lamp Relay: Testing and Inspection

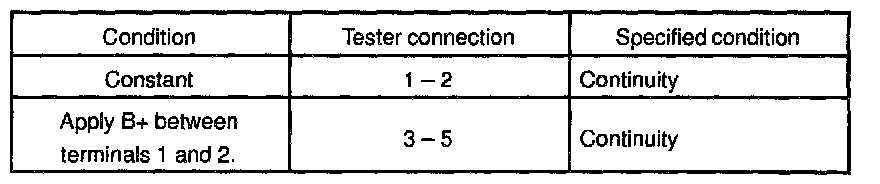

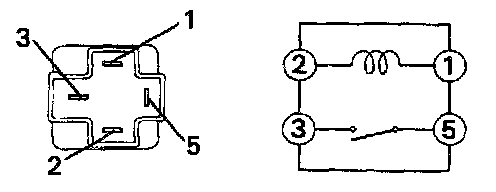

INSPECT FOG LIGHT RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT FOG LIGHT RELAY CIRCUIT
Refer to the Power and Ground Distribution.
