Glove Box Lamp Switch: Testing and Inspection

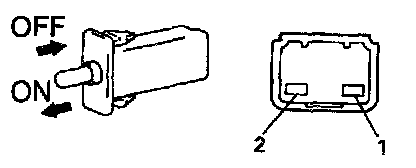

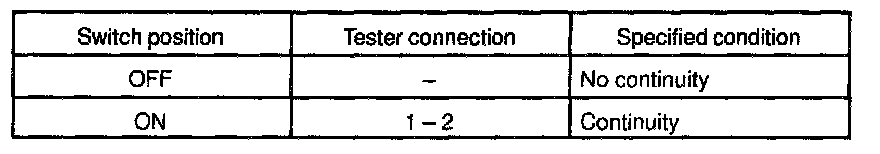

INSPECT GLOVE BOX LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

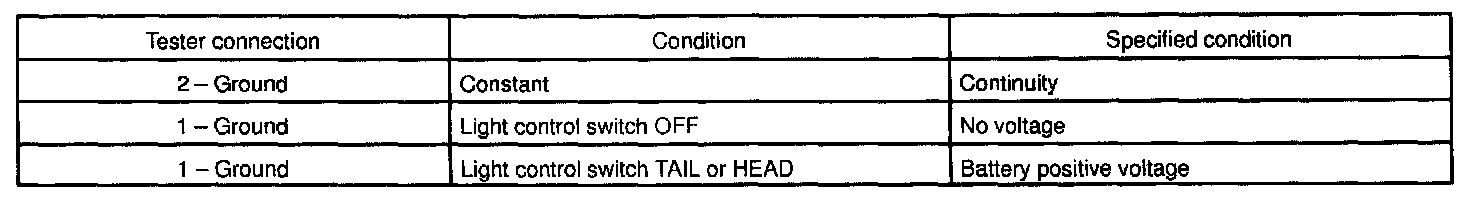

INSPECT GLOVE BOX LIGHT SWITCH CIRCUIT
Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
