Parking Brake Warning Lamp: Testing and Inspection

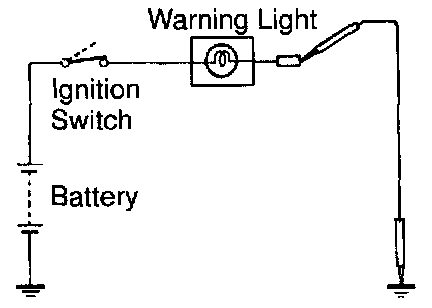

INSPECT PARKING BRAKE WARNING LIGHT
a. Disconnect the connector from the parking brake switch and brake fluid warning switch.
b. Ground terminal on the wire harness side connector.
c. Start the engine, check that the warning light lights up.
If the warning light does not light up, test the bulb or inspect wire harness.
