Circuit Inspection

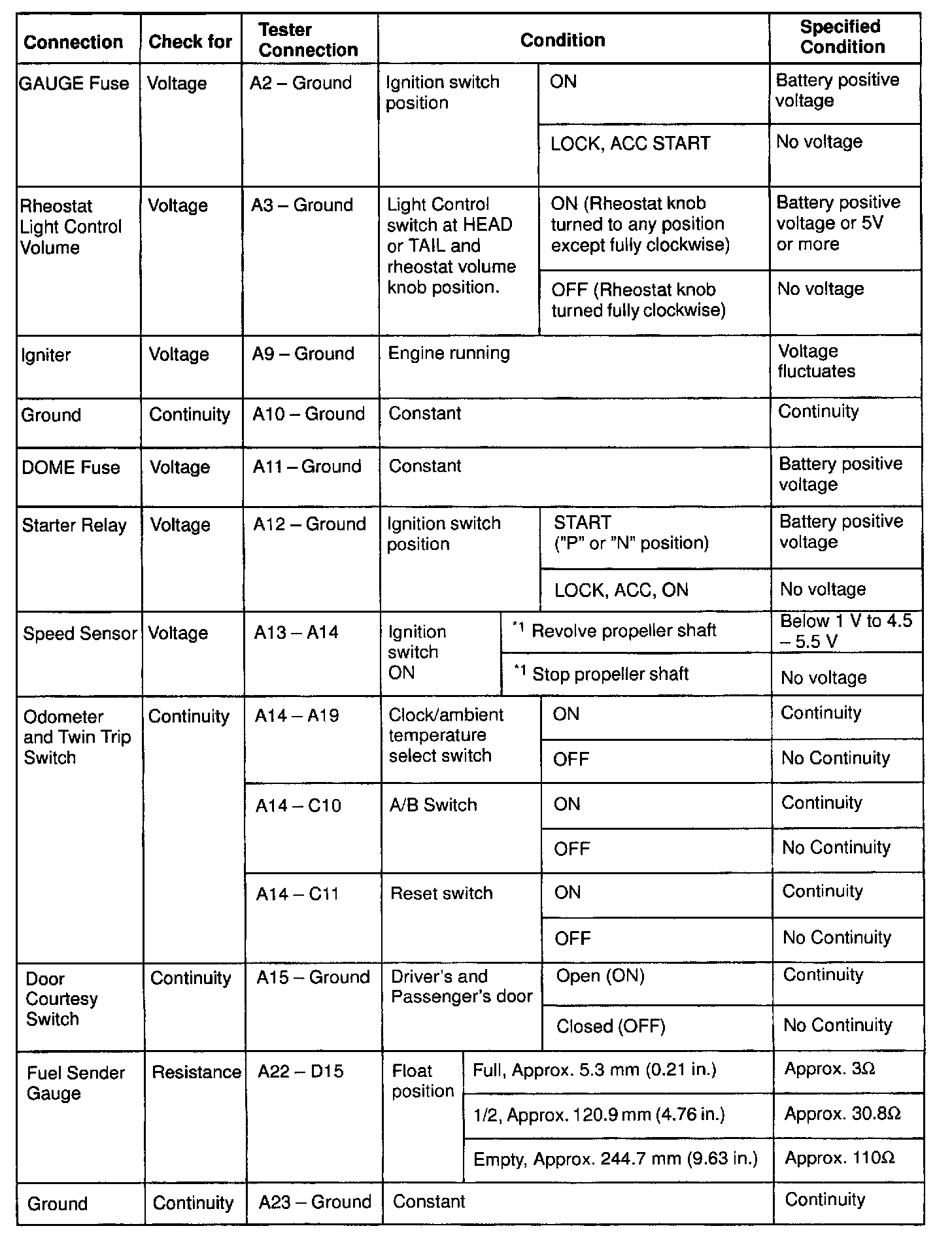

INSPECT COMBINATION METER WIRING CIRCUIT

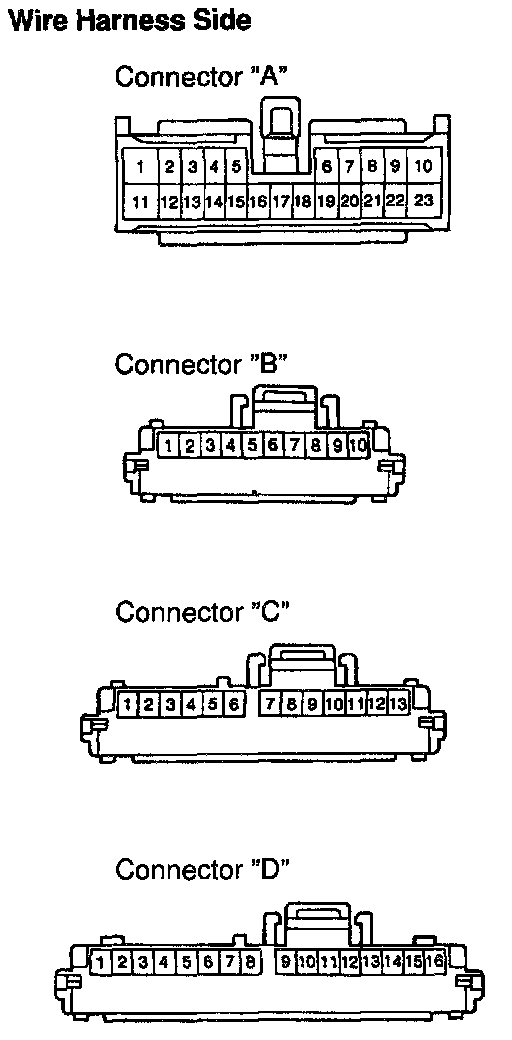

Disconnect connector A, connector B, connector and connector D from the combination meter and inspect the connectors or the wire harness side.
If circuit is not as specified, inspect the circuits connected to other parts.




INSPECT BUCKLE SWITCH

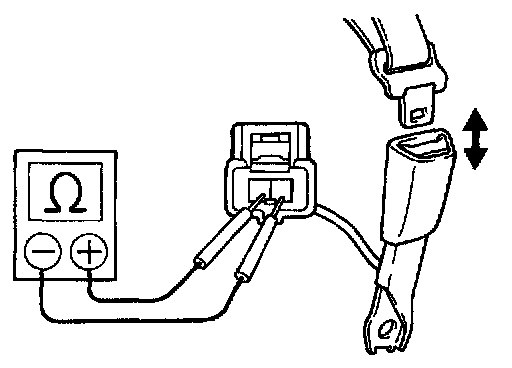

a. Check that there is continuity between terminals on the switch side connector with the switch ON (belt fastened).
b. Check that there is no continuity between terminals on the switch side connector with the switch OFF (belt unfastened).
If operation is not as specified, replace the seat belt inner.







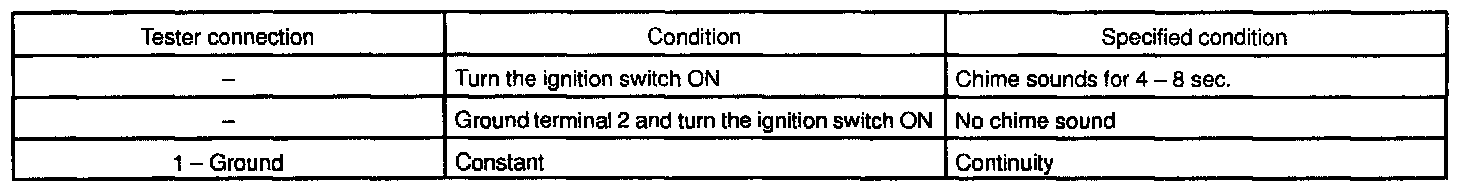

INSPECT BUCKLE SWITCH CIRCUIT

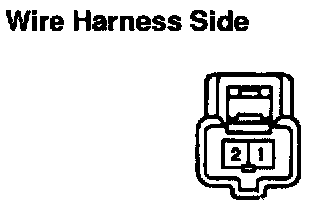

Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
