List of Operation Methods






LIST OF OPERATION METHODS

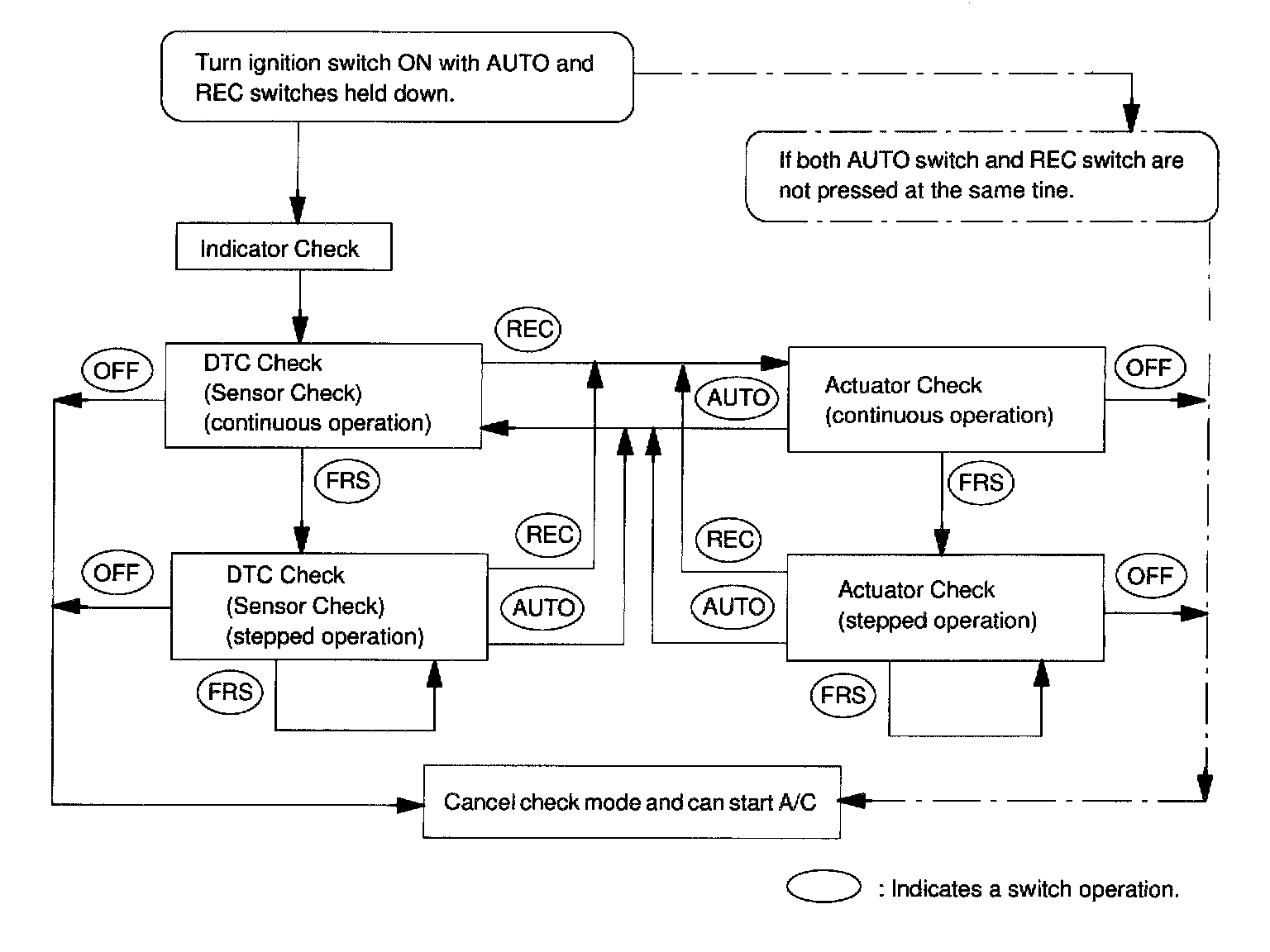

By operating each of the A/C control switches as shown the diagram, it is possible to enter the diagnosis check mode.
