ACC Power Source Circuit
CIRCUIT DESCRIPTIONThis circuit supplies power to the A/C control assembly (contains the A/C control assembly).

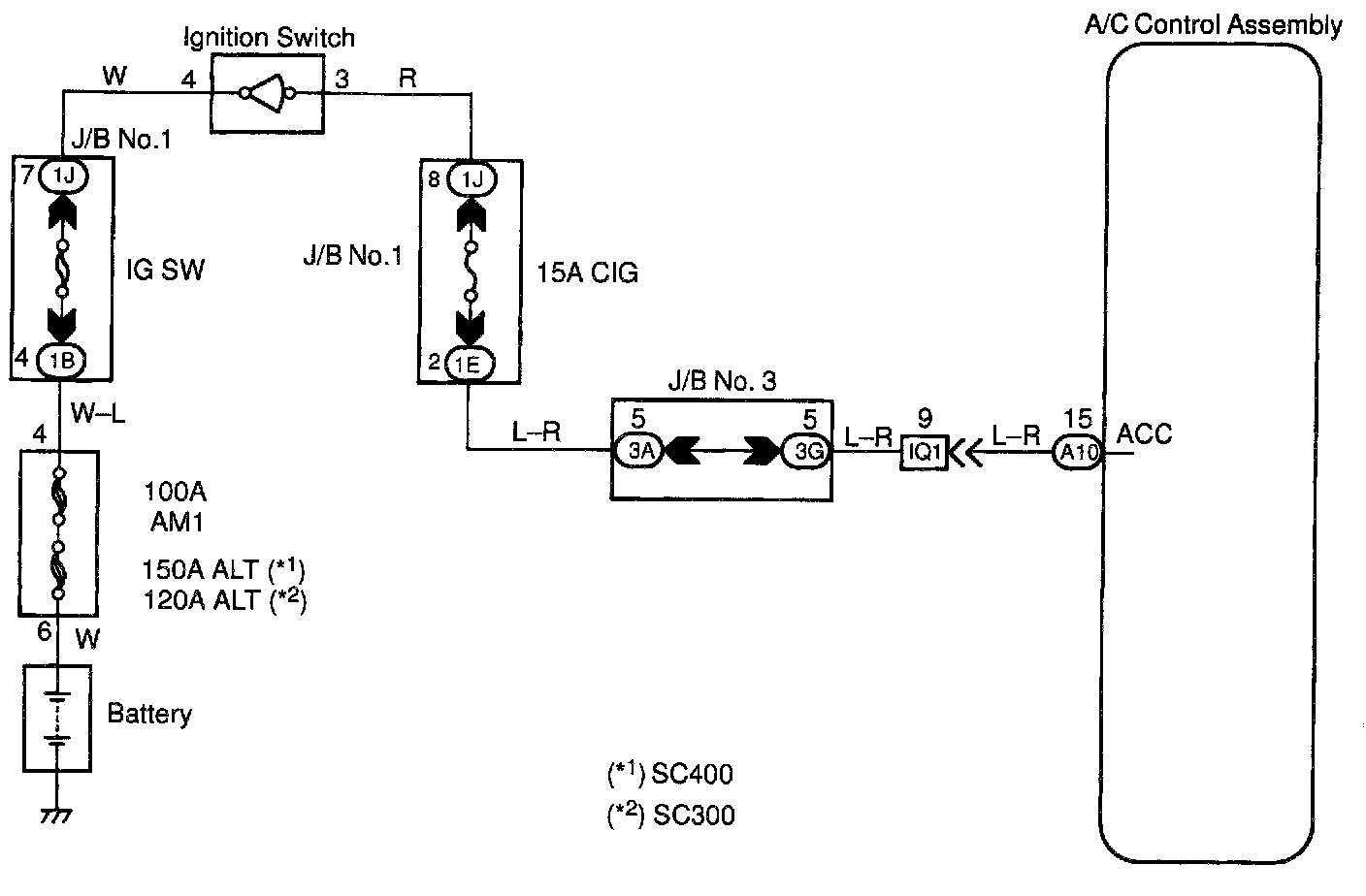

WIRING DIAGRAM

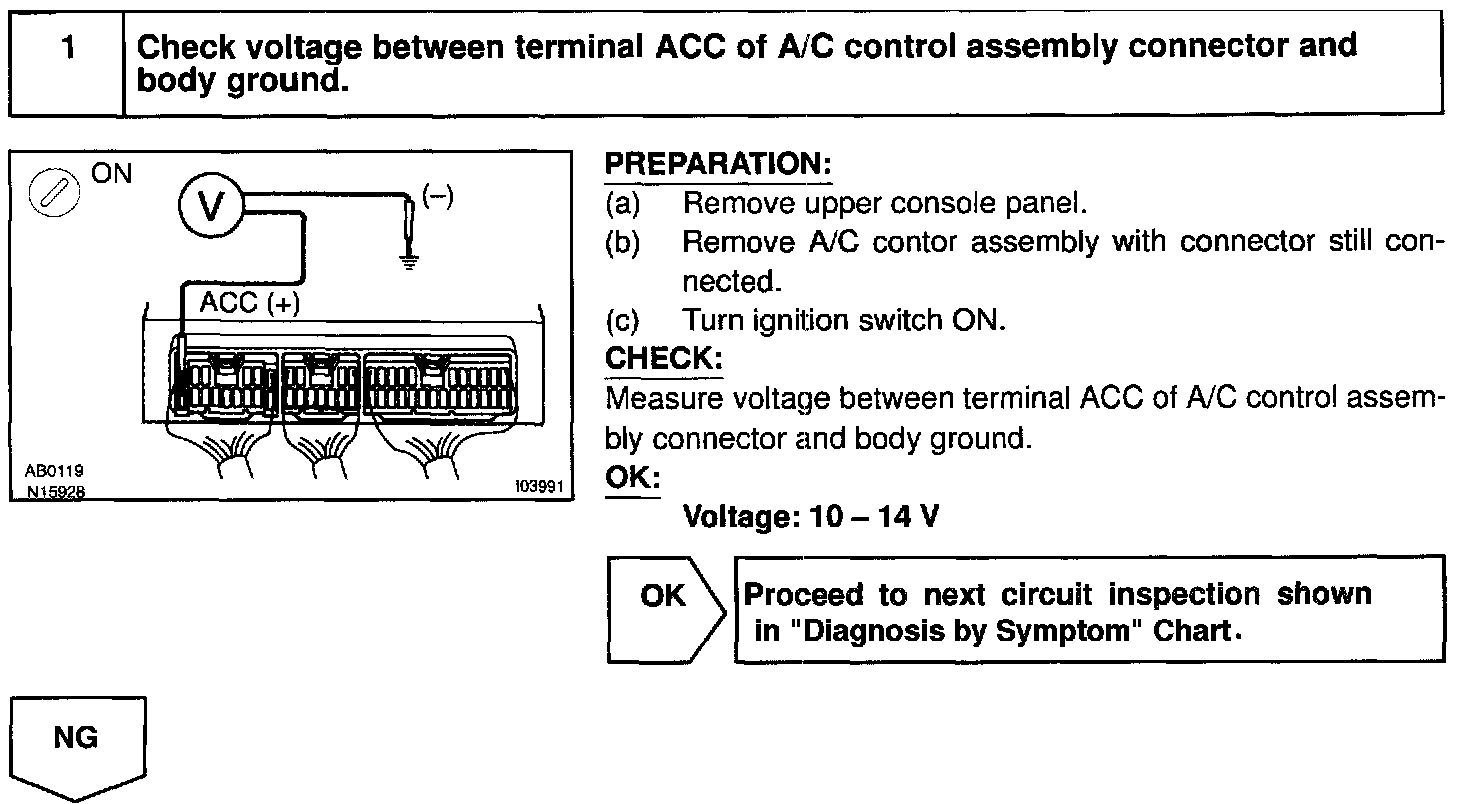

Step 1:

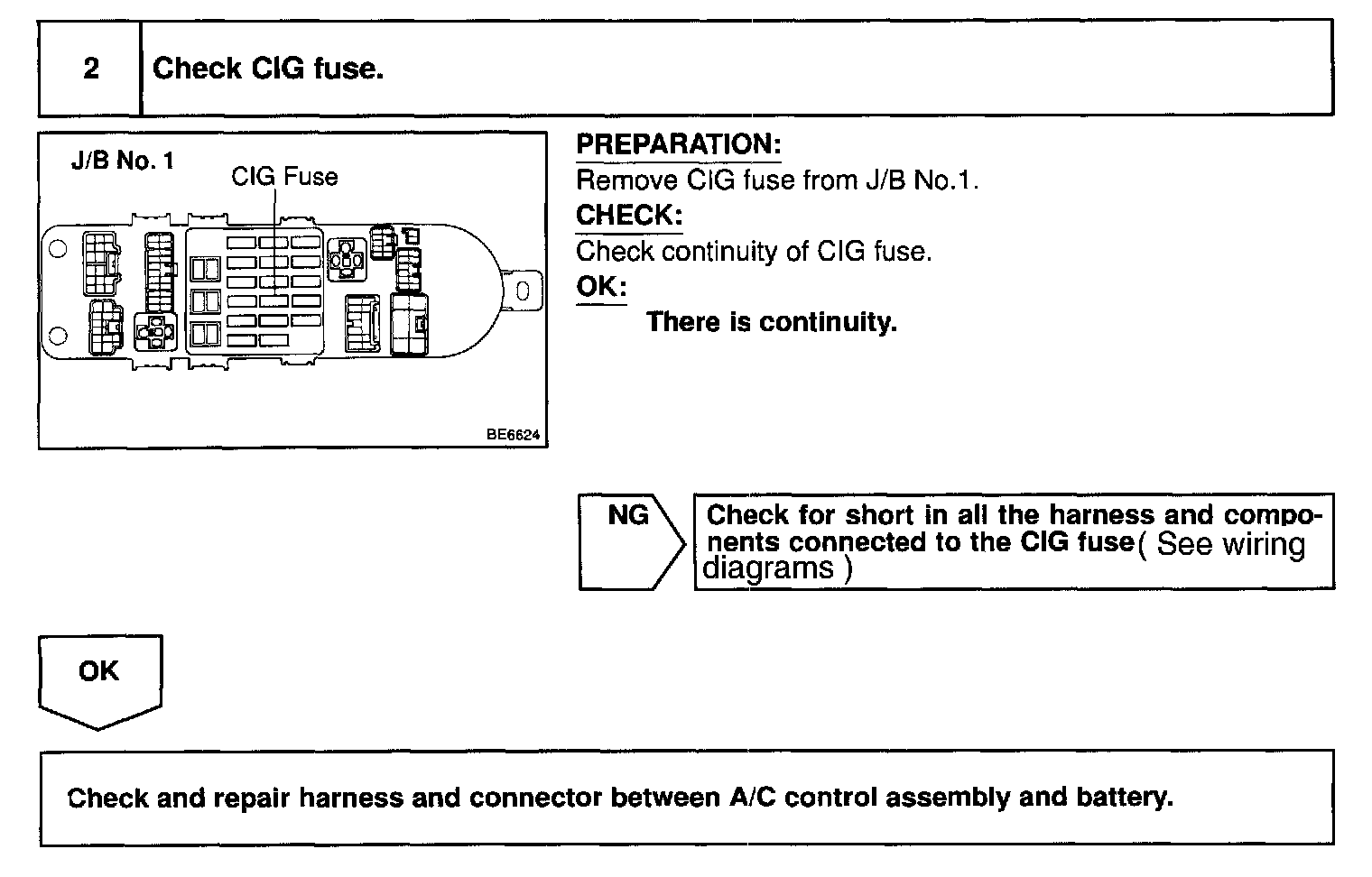

Step 2:
INSPECTION PROCEDURE
This circuit supplies power to the A/C control assembly (contains the A/C control assembly).
WIRING DIAGRAM
INSPECTION PROCEDURE
