Heater Core: Service and Repair

REMOVAL
1. SET TEMPERATURE CONTROL SWITCH TO MAX COOL
2. REMOVE A/C UNIT
3. REMOVE HEATER RADIATOR

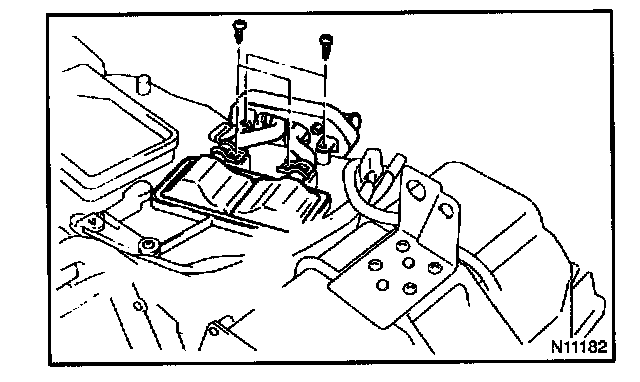

a. Remove the 2 screws and the plate.
b. Remove the 2 screws and the clamps.

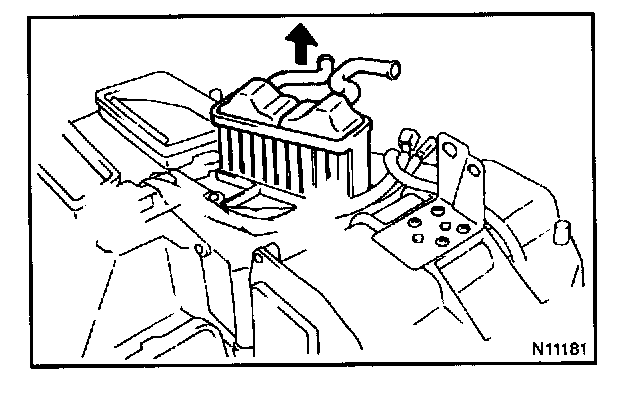

c. Pull out the radiator.

INSTALLATION
Installation is in the reverse order of removal
