Rear A/C Control Assembly

REMOVE REAR HEATER CONTROL ASSEMBLY

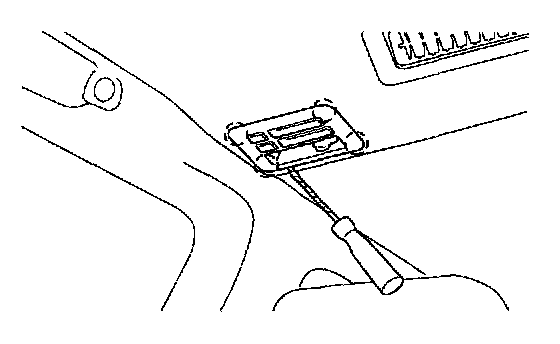

Using a screwdriver, release the 4 claws and pull out the heater control assembly, then disconnect the connector.




INSPECT ILLUMINATION OPERATION

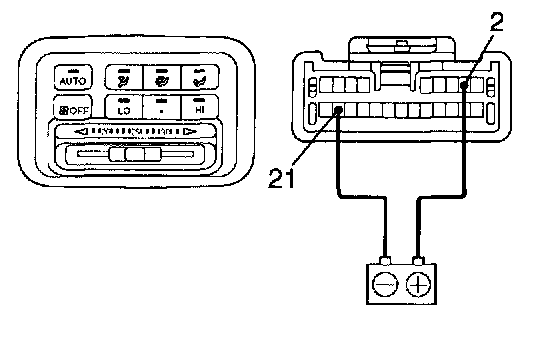

Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 21 then check that the illumination light up.
If operation is not as specified, replace the.

INSPECT INDICATOR OPERATION

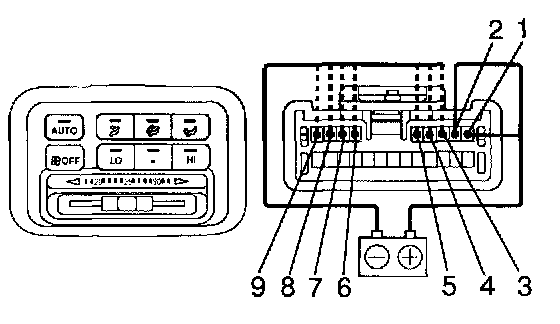

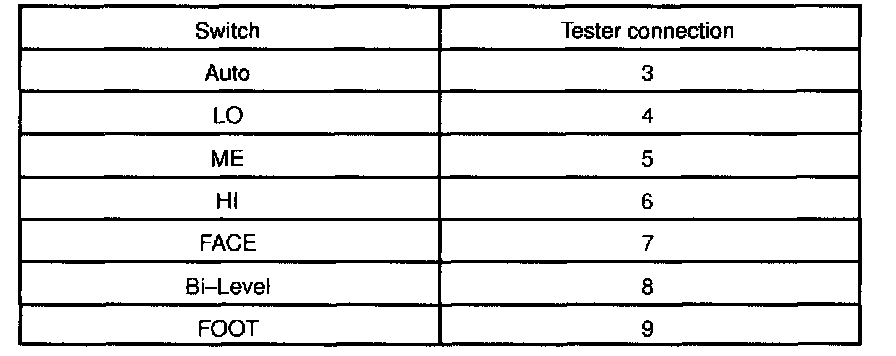

a. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to each terminal, then check that the indicator lights up, as shown in the chart.
If operation is not as specified, replace the heater control assembly.

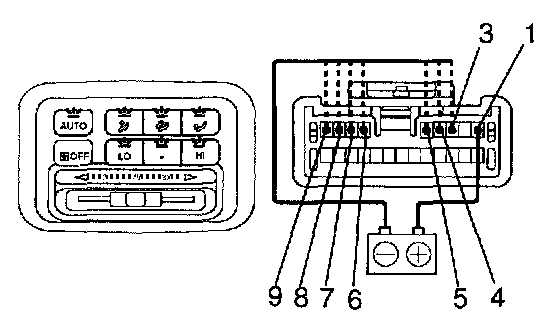

b. Connect the positive (+) lead from the battery to terminal 2, then check that indicators dim.
If operation is not as specified, replace the heater control assembly.







INSPECT SWITCH CONTINUITY

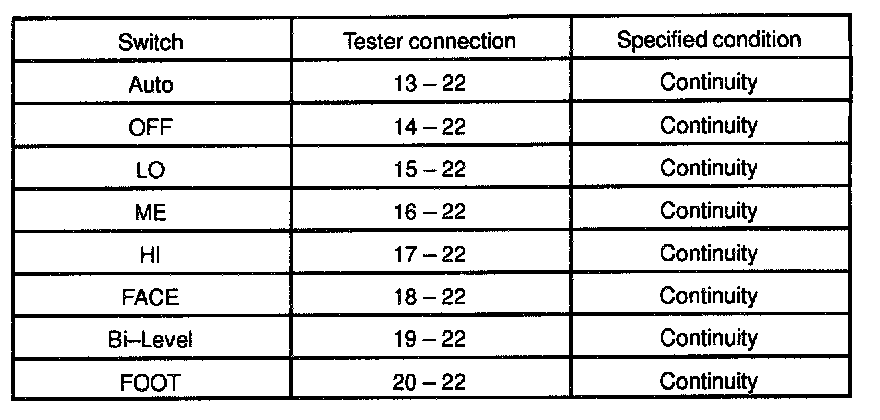

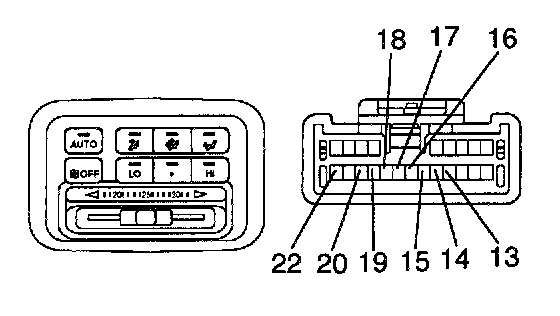

Check the continuity between terminals while switch is pressed, as shown in the chart.
If continuity is not as specified, replace the heater control assembly.




INSPECT VARIABLE RESISTOR OPERATION
a. Measure resistance between terminals 10 and 12.
Standard resistance: 3.0 K Ohms

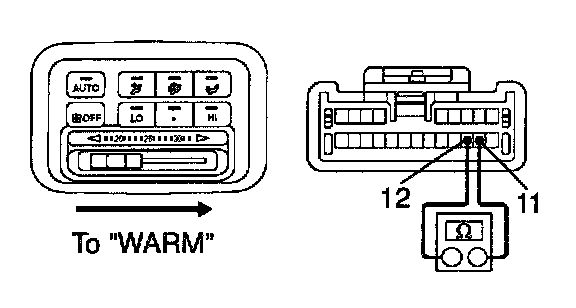

b. Gradually move the temperature control lever from "COOL" side to "WARM" side then check that the resistance between terminals 11 and 12 increase from 0 to 3.0 K Ohms.
If operation is not as specified, replace the heater control assembly.

INSTALL HEATER CONTROL ASSEMBLY
