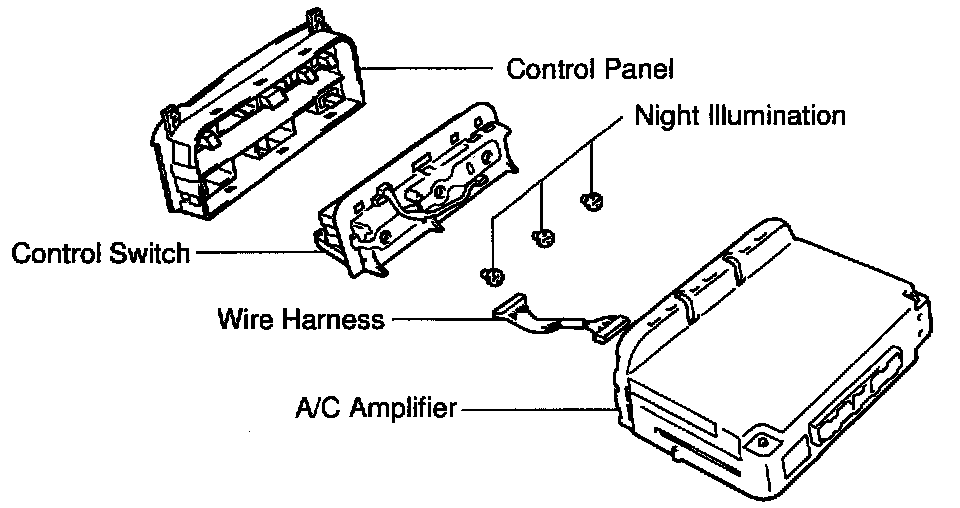

Disassembly and Reassembly

DISASSEMBLY

1. SEPARATE CONTROL PANEL FROM CASE

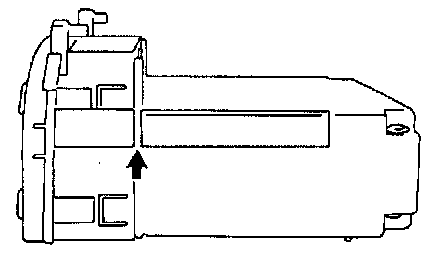

a. Cut up cloth tapes affixed on both sides of the case, as shown in the illumination.

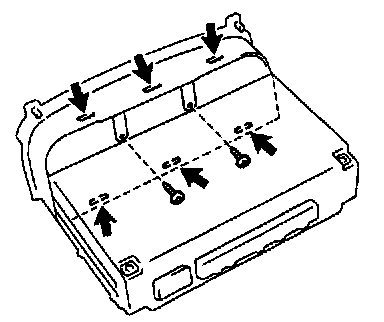

b. Remove the 2 screws and release the 6 claws to separate the control panel from the case.




c. Disconnect the 2 connectors and separate the control panel from the case.
d. Remove the wire harness from control panel.

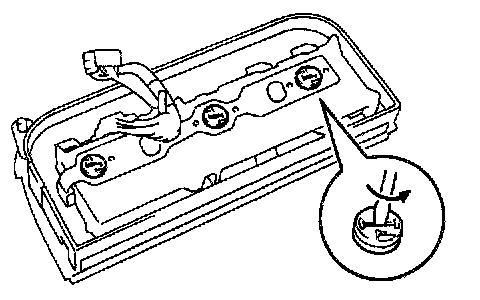

2. REMOVE NIGHT ILLUMINATION BULB




a. Using a flat-bladed screwdriver remove the night illumination bulbs.

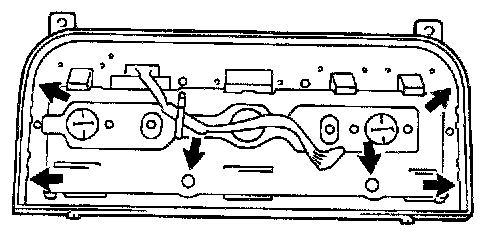

3. REMOVE CONTROL SWITCH
Release the 2 screws and the 4 clips as shown on the illumination, then remove the control switch.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
