Blower Motor: Service and Repair

REMOVAL
1. REMOVE THESE PARTS:
a. No.2 under cover
b. Glove compartment assembly

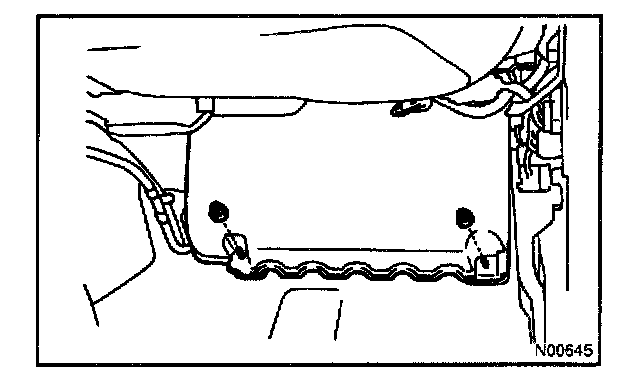

2. REMOVE ECU COVER
a. Lift up the front end of the carpet on the passenger side.
b. Remove the 2 nuts and the cover.

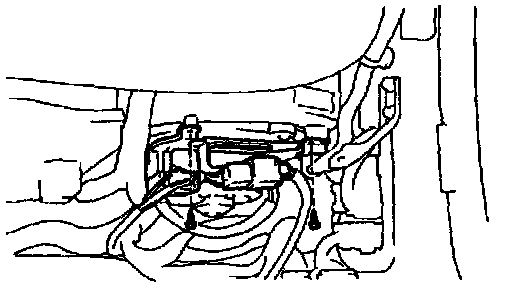

3. REMOVE CONNECTOR BRACKET
Remove the 2 screws and the bracket.

4. REMOVE MOTOR
a. Disconnect the connector.
b. Remove the 3 screws and the motor.

INSTALLATION
Installation is in the reverse order of removal.
