Air Door Actuator / Motor: Service and Repair

REMOVAL

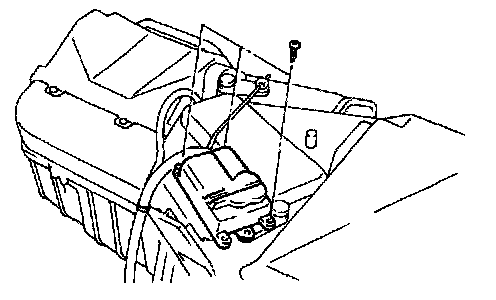

1. REMOVE AIR INLET SERVOMOTOR
a. Remove instrument panel and reinforcement.




b. Remove servomotor.
1. Disconnect the connector.
2. Disconnect the control link.
3. Remove the 3 screws and the servomotor.

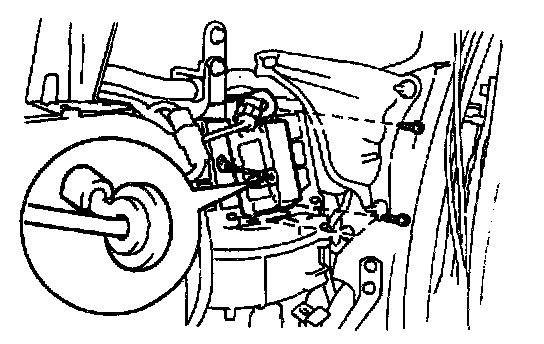

2. REMOVE AIR MIX SERVOMOTOR
a. Remove A/C unit.




b. Remove servomotor.
1. Disconnect the connector.
2. Remove the 3 screws and the servomotor

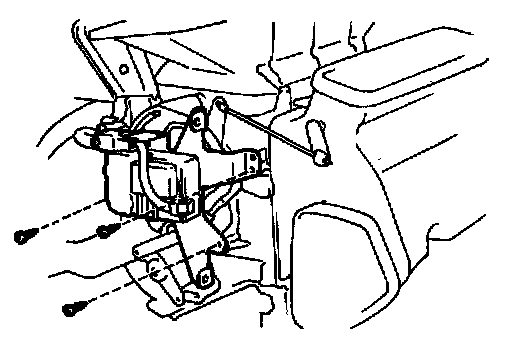

3. REMOVE AIR OUTLET SERVOMOTOR
a. Remove instrument panel and reinforcement.




b. Remove servomotor
1. Disconnect the connector.
2. Remove the 4 screws and the servomotor.

INSTALLATION
Installation is in the reverse order of removal.
