With Power Tilt and Power Telescopic Column

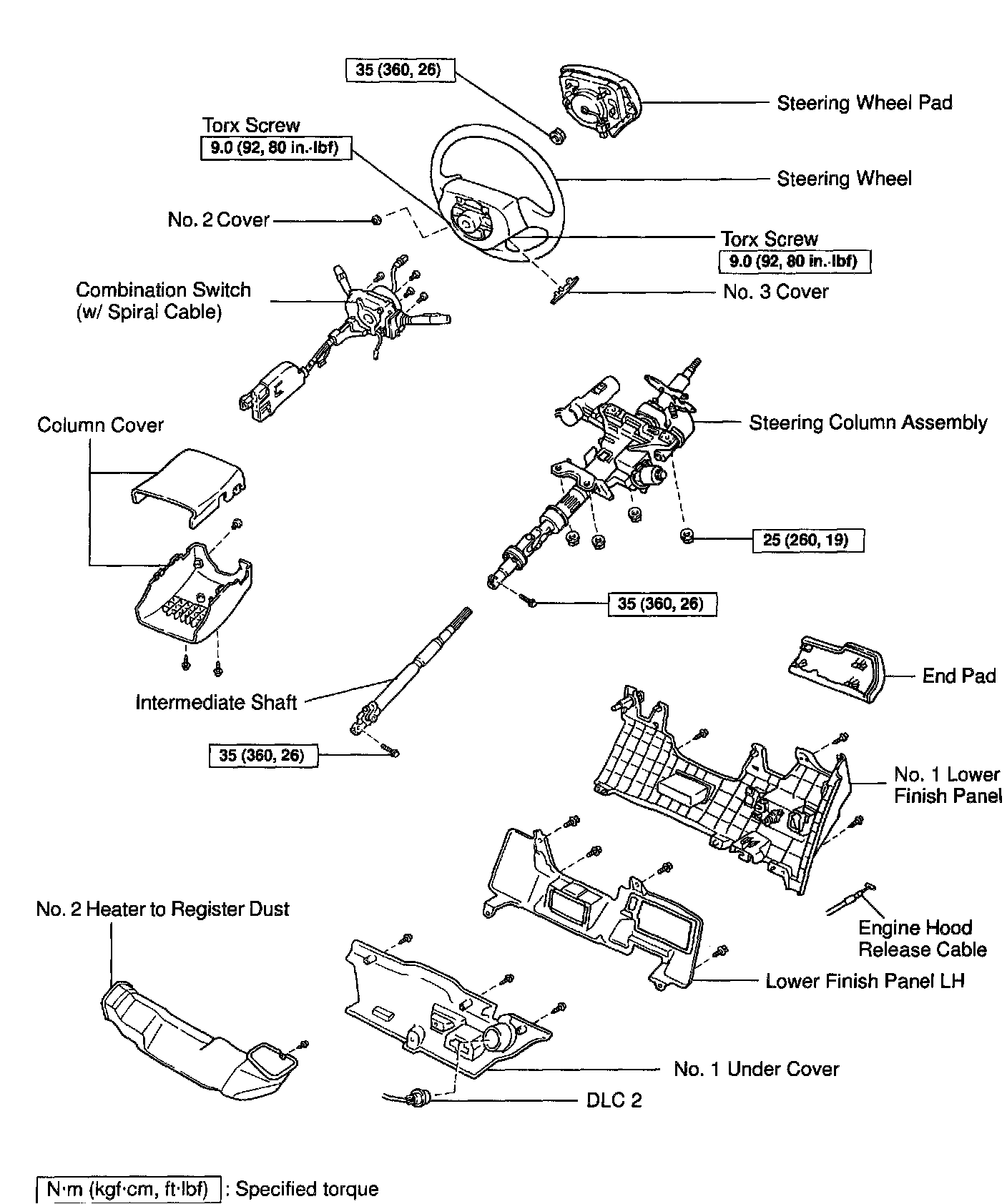

POWER TILT AND POWER TELESCOPIC STEERING COLUMN ASSEMBLY AND RELATED COMPONENTS

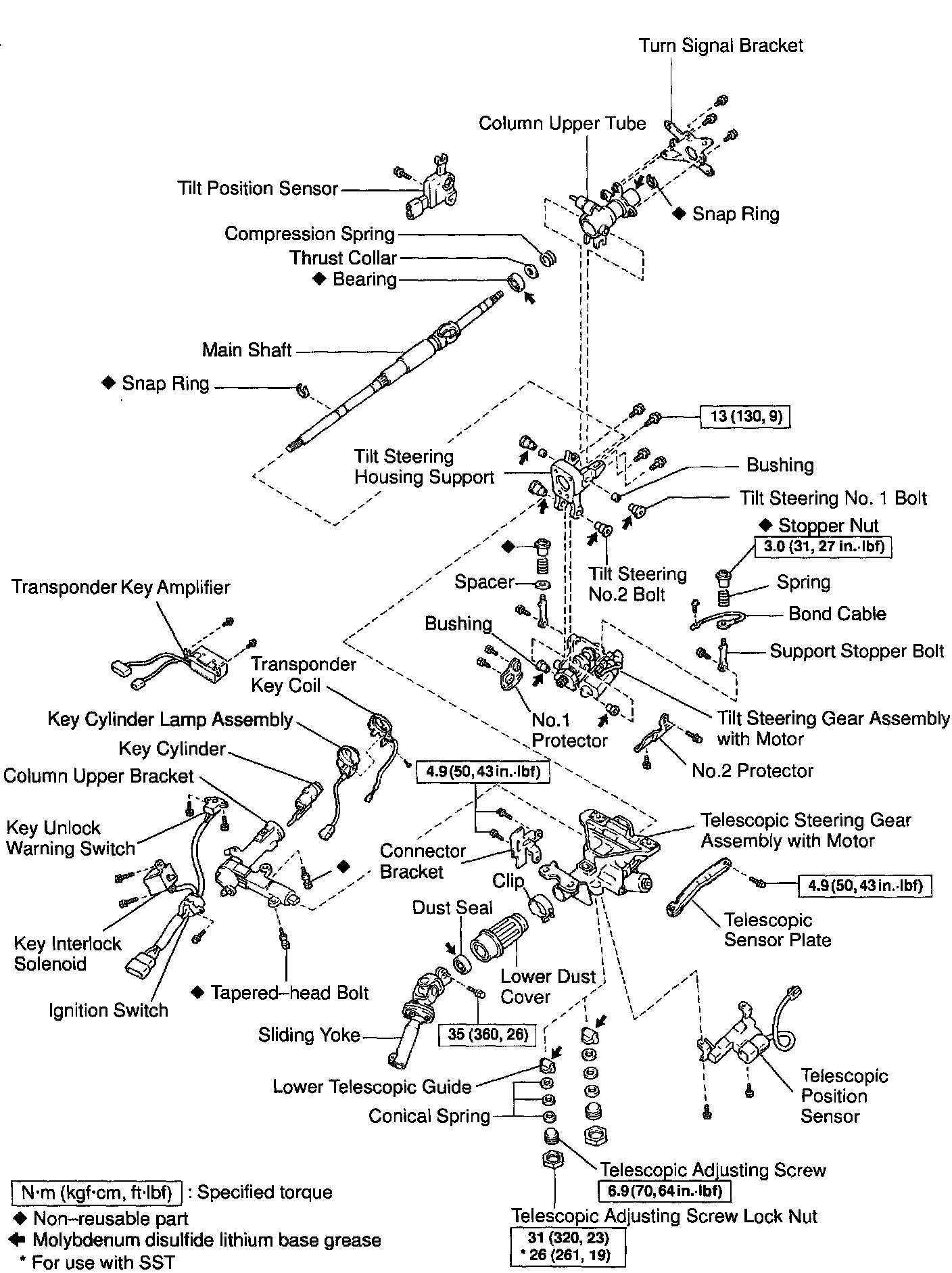

POWER TILT AND POWER TELESCOPIC STEERING COLUMN
