Home >> Lexus >> 1999 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> With Manual Tilt and Manual Telescopic Column

With Manual Tilt and Manual Telescopic Column

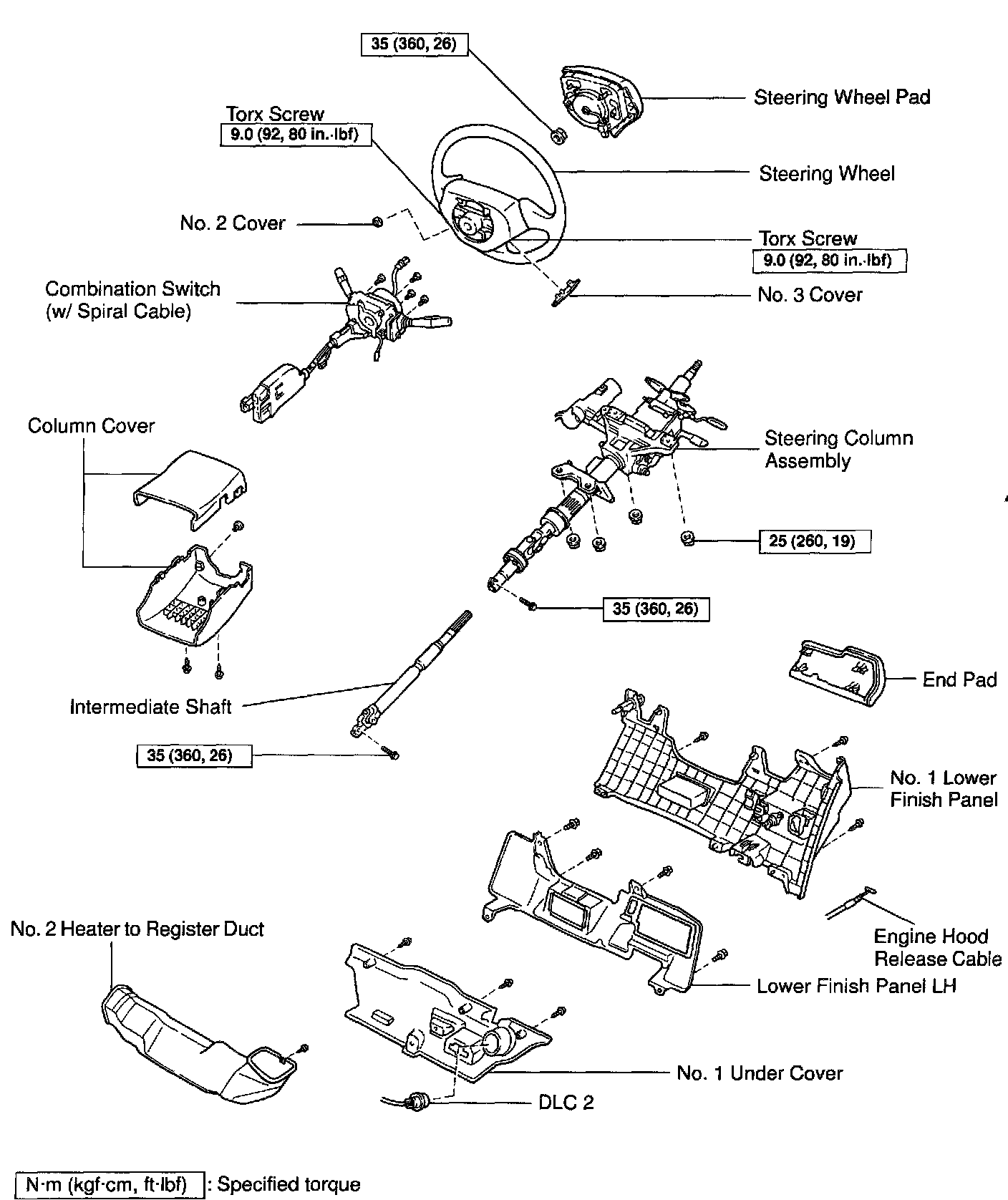

MANUAL TILT AND MANUAL TELESCOPIC STEERING COLUMN ASSEMBLY AND RELATED COMPONENTS

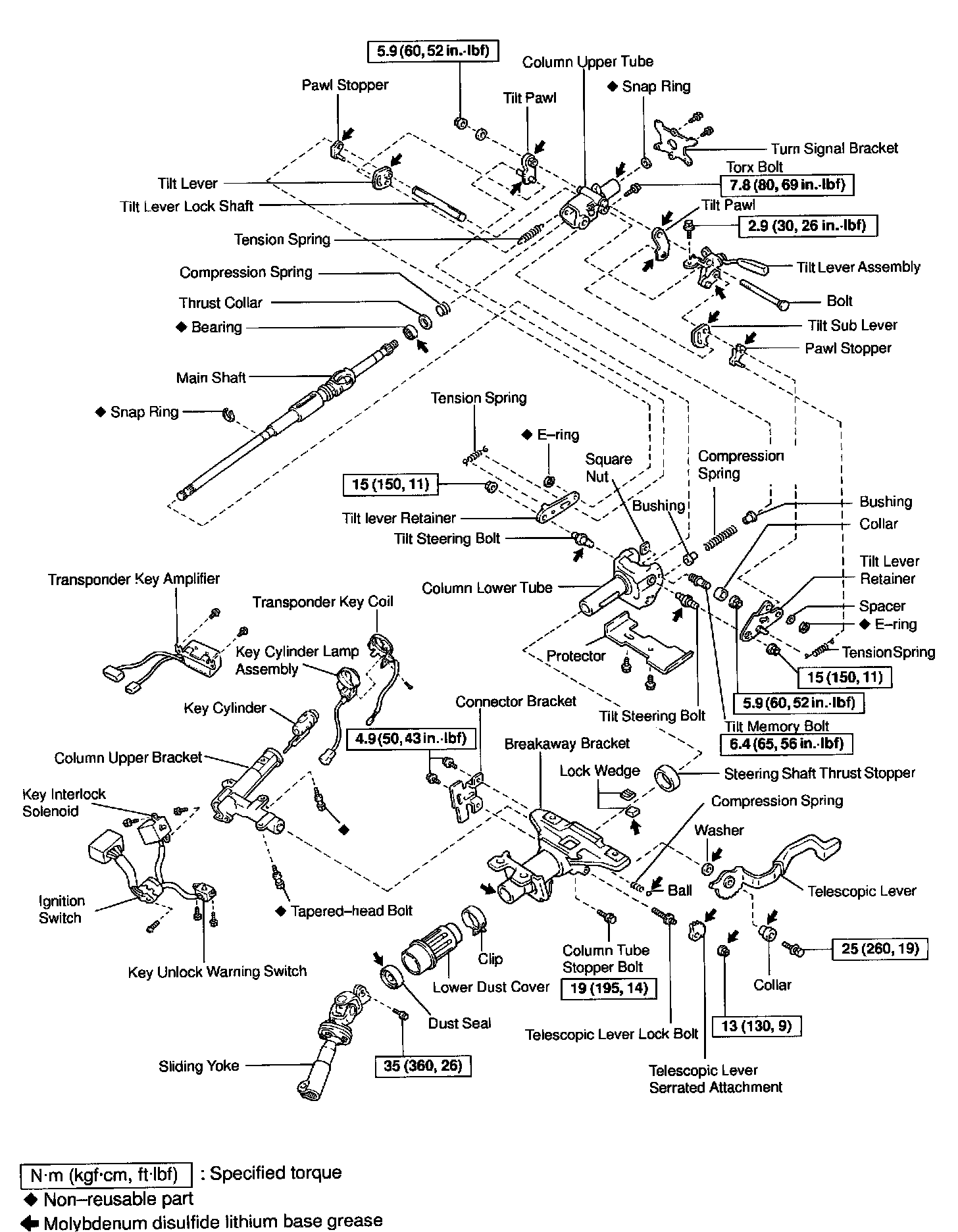

MANUAL TILT AND MANUAL TELESCOPIC STEERING COLUMN
