Lexus
>>
1999
>>
SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

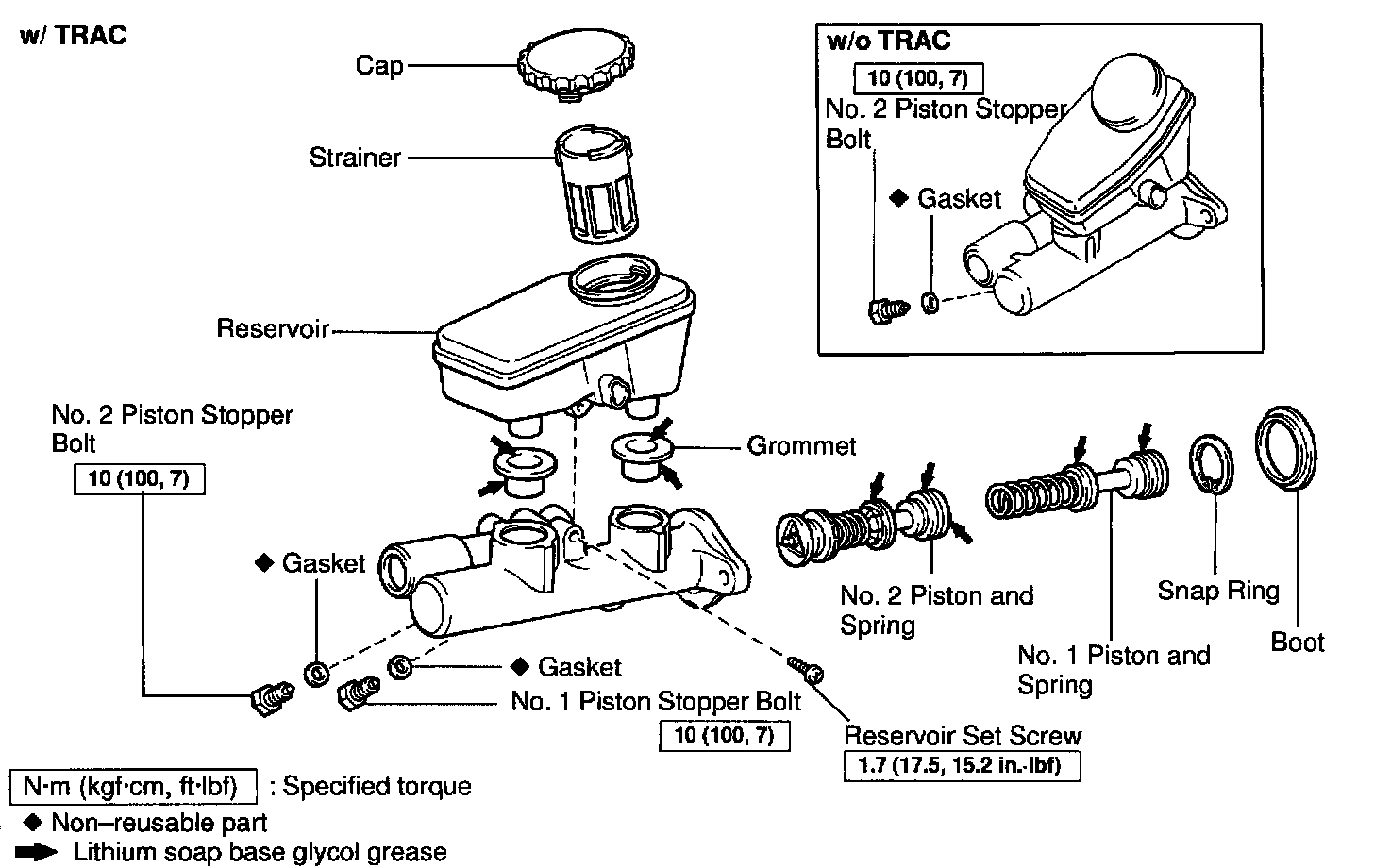

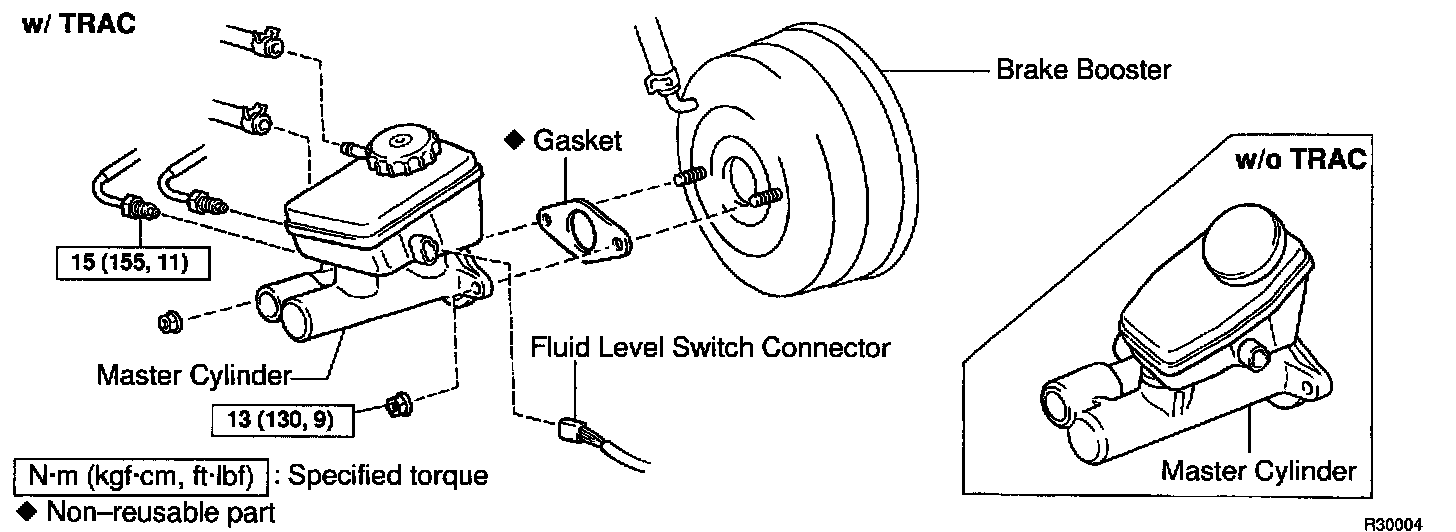

Brake Master Cylinder
Brake Master Cylinder
PART 1 OF 2
PART 2 OF 2
