Home >> Lexus >> 1999 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuse, Relay, and Junction Block Data >> J/B - No. 1

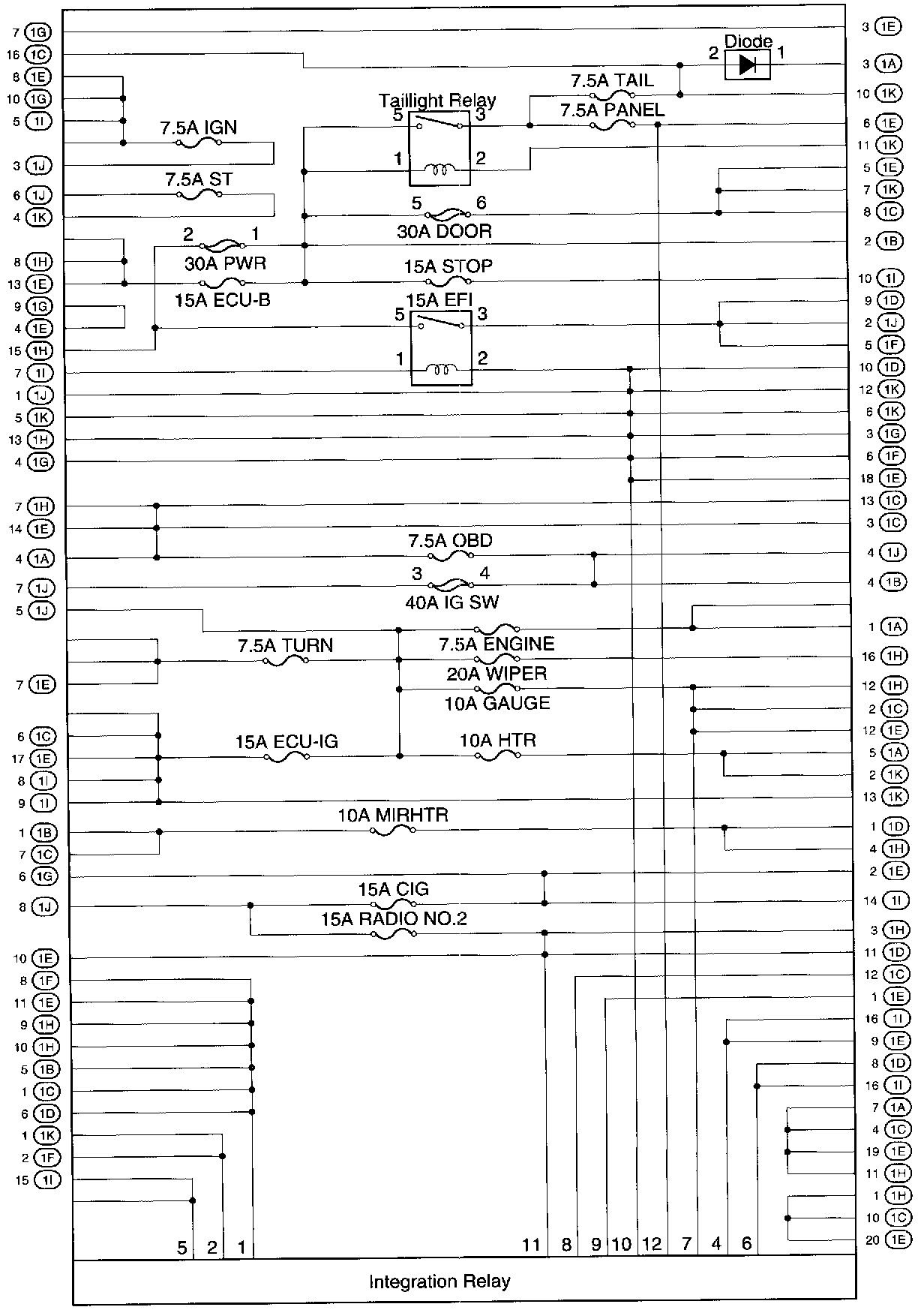

J/B - No. 1
