Tc Terminal Circuit
Tc Terminal CircuitCIRCUIT DESCRIPTION
Connecting terminals Tc and E1 of the DLC1 or DLC2 causes the ECU to display the DTC by flashing the ABS warning light.
WIRING DIAGRAM
Step 1:
Step 2:

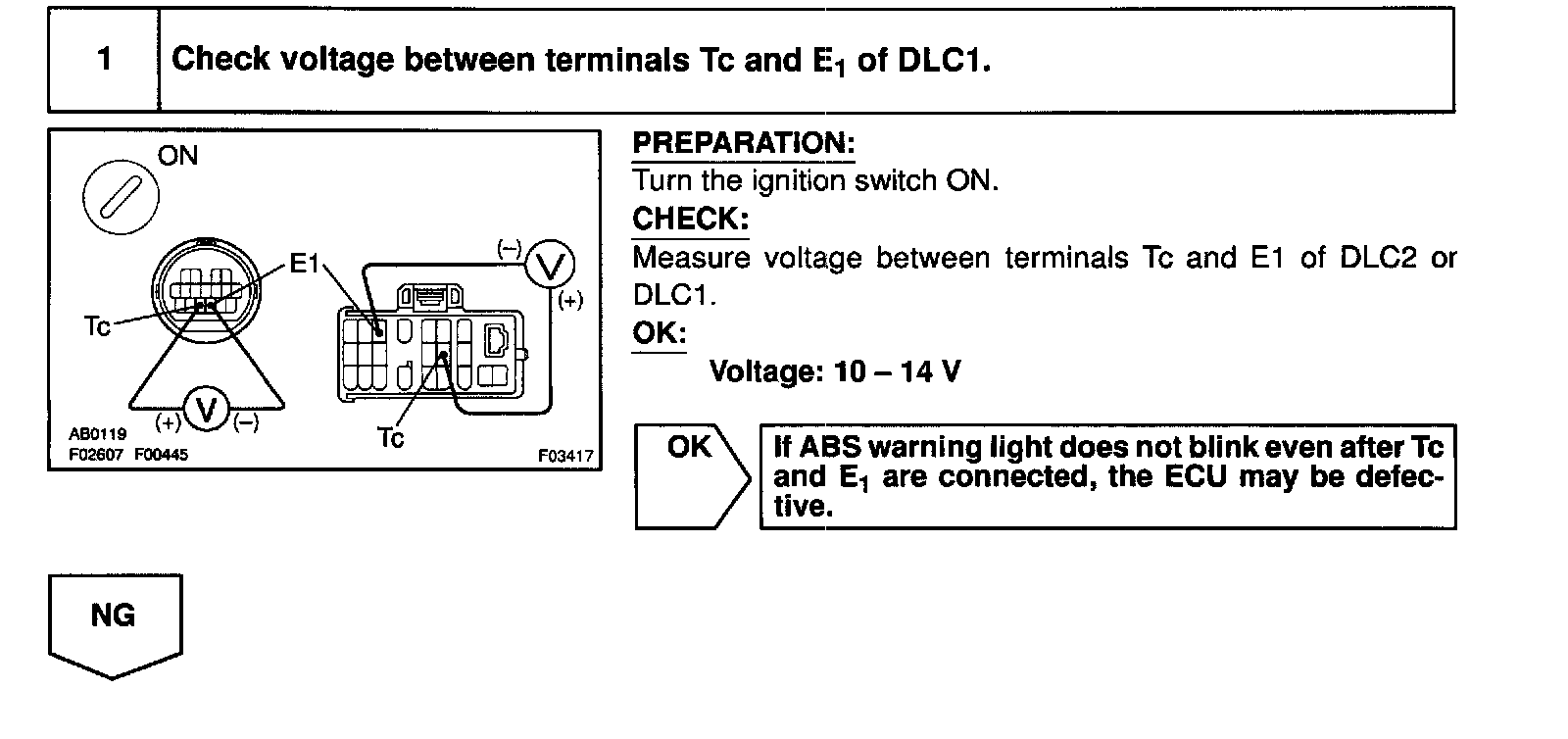

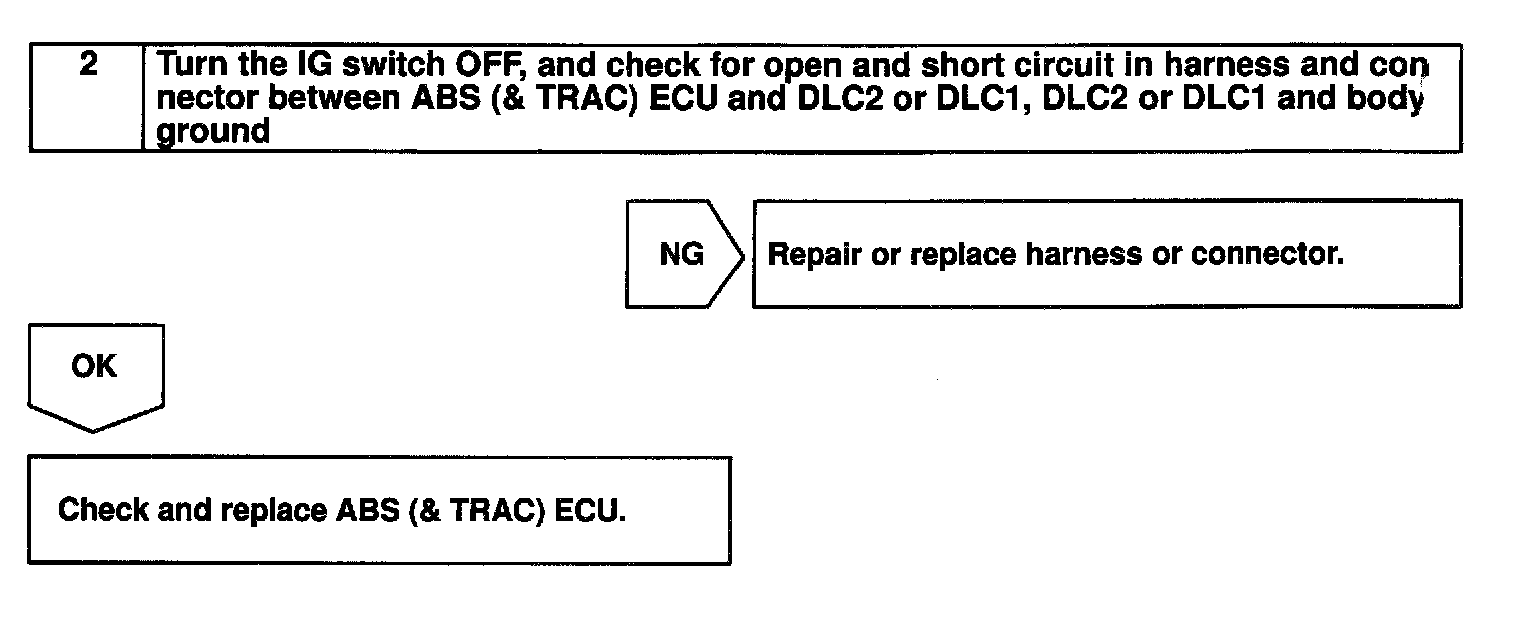

INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
Connecting terminals Tc and E1 of the DLC1 or DLC2 causes the ECU to display the DTC by flashing the ABS warning light.
WIRING DIAGRAM
INSPECTION PROCEDURE
