SLIP Indicator Light Circuit
CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC operation.

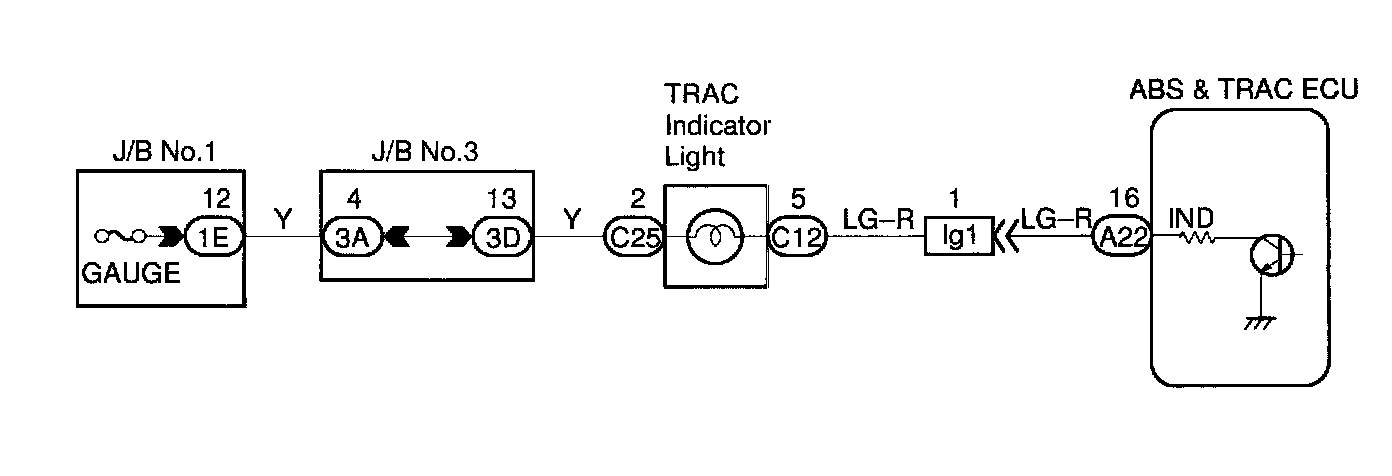

WIRING DIAGRAM

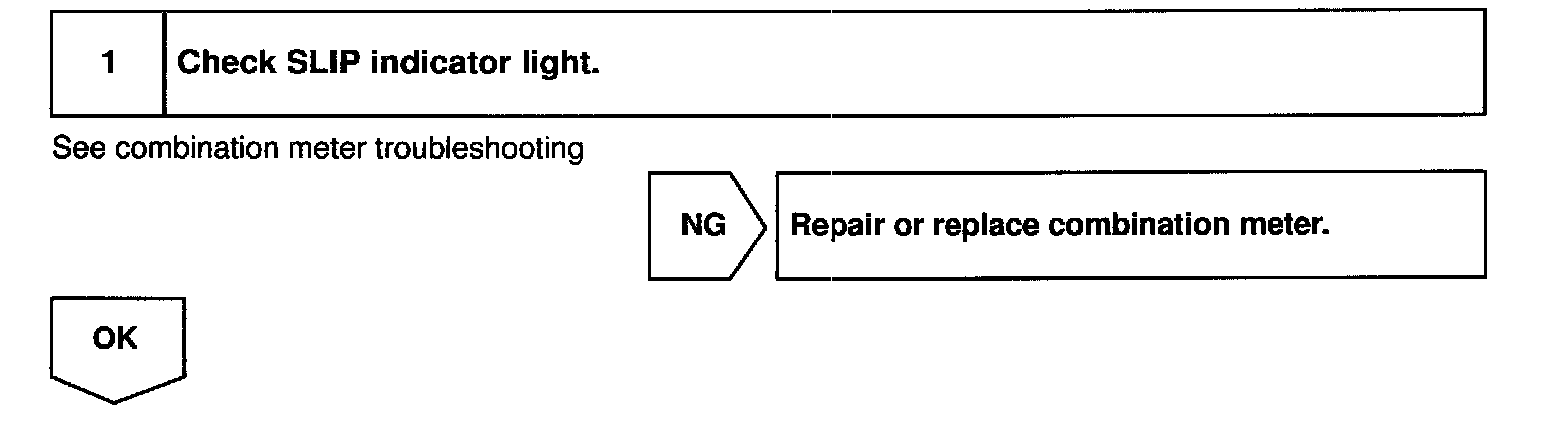

Step 1:

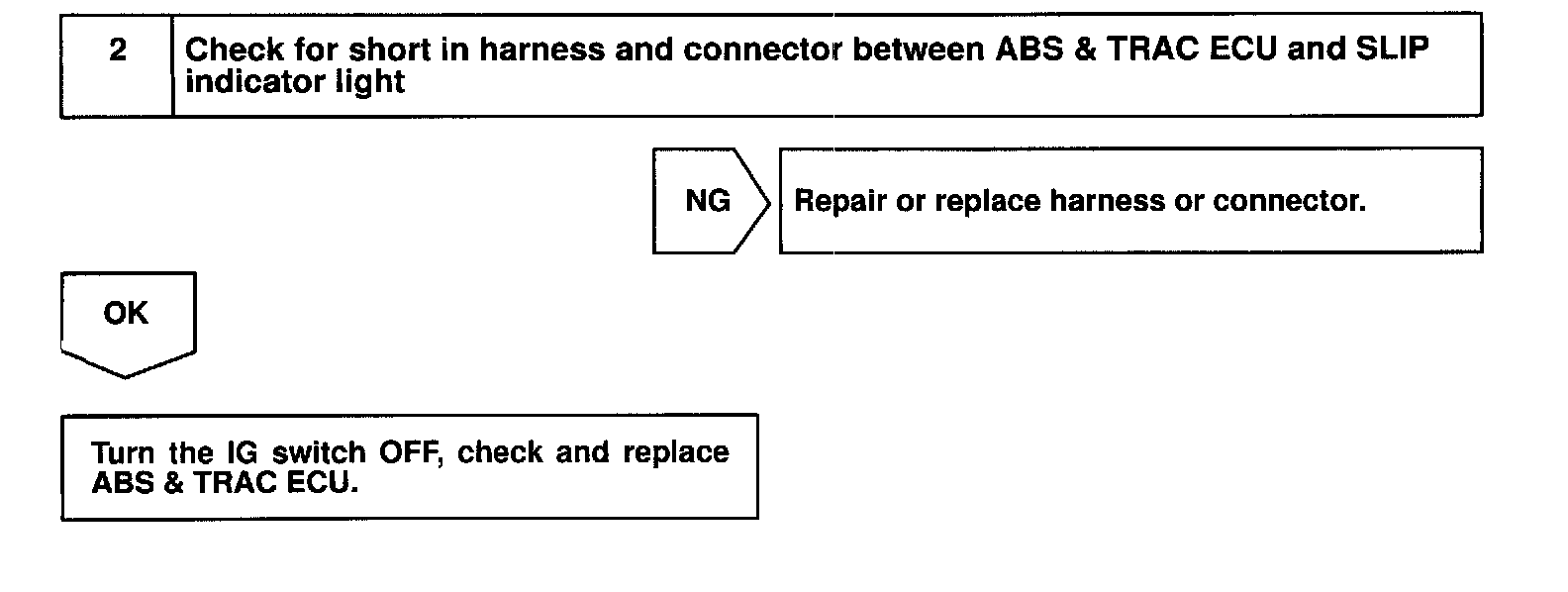

Step 2:
INSPECTION PROCEDURE
