Component Inspection

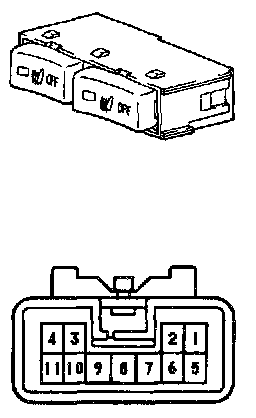

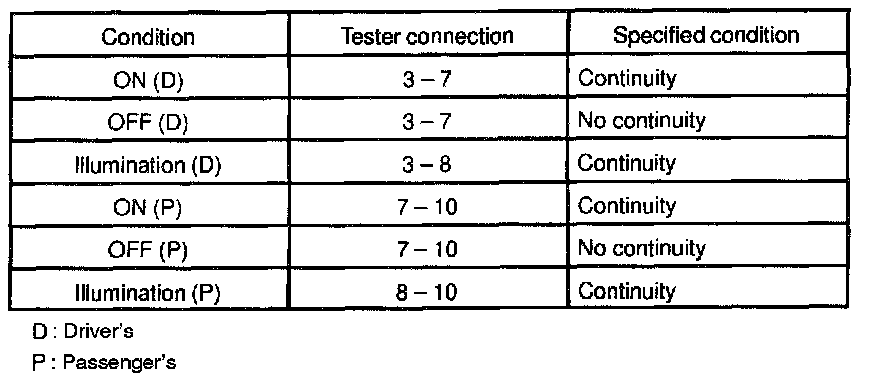

INSPECT SEAT HEATER SWITCH CONTINUITY
If continuity is not as specified, replace the switch or bulb

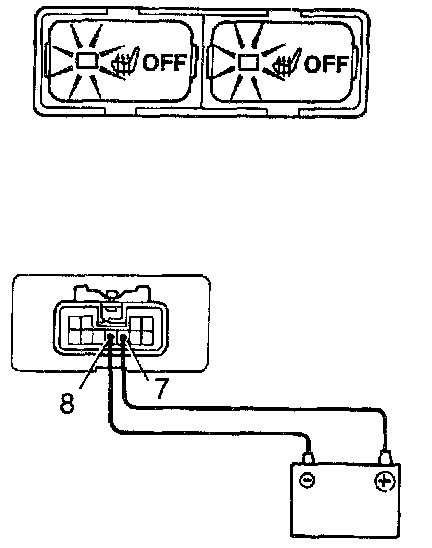

INSPECT SEAT HEATER SWITCH INDICATOR
a. Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 8.
b. Push the switch, check that the indicator light lights up.
If operation is not as specified, replace the switch.

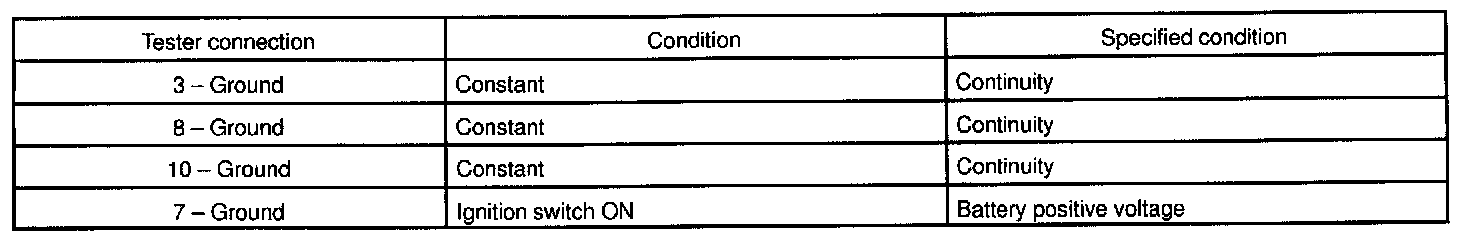

INSPECT SEAT HEATER SWITCH CIRCUIT

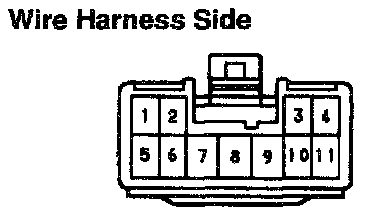

Disconnect the switch connector and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
