Power Seat Position Sensor Circuit

CIRCUIT DESCRIPTION

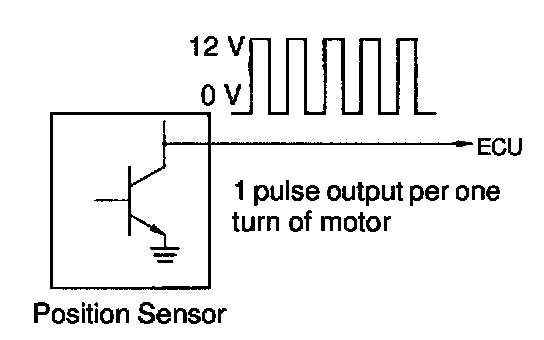

The position sensor senses movement of the seat and send pulse signals to the ECU. The position sensor sends pulses to the ECU in proportion to the amount of seat movement, as shown in the diagram of the left.

If a malfunction occurs in a position sensor and a sensor signal is not input to the ECU even when the motor operates, the ECU prohibits return Operation.




WIRING DIAGRAM

Step 1 (Part 1 Of 3):

Step 1 (Part 2 Of 3):

Step 1 (Part 3 Of 3):

Step 2:

Step 3:

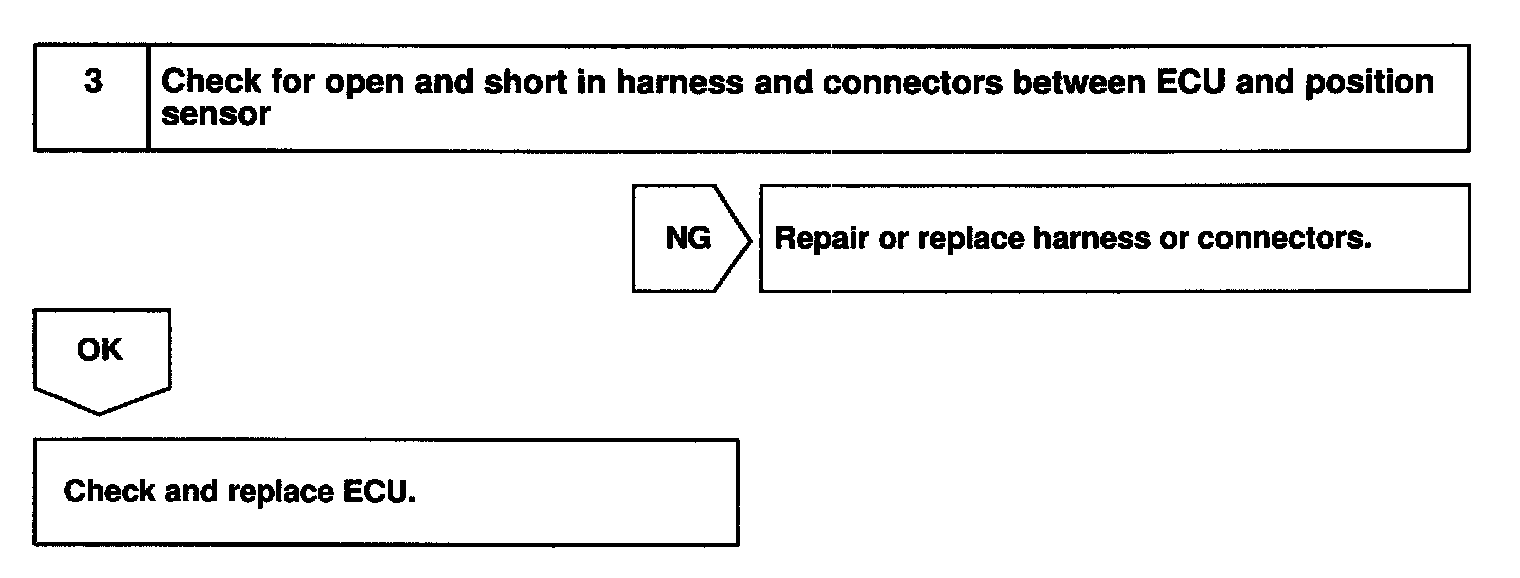

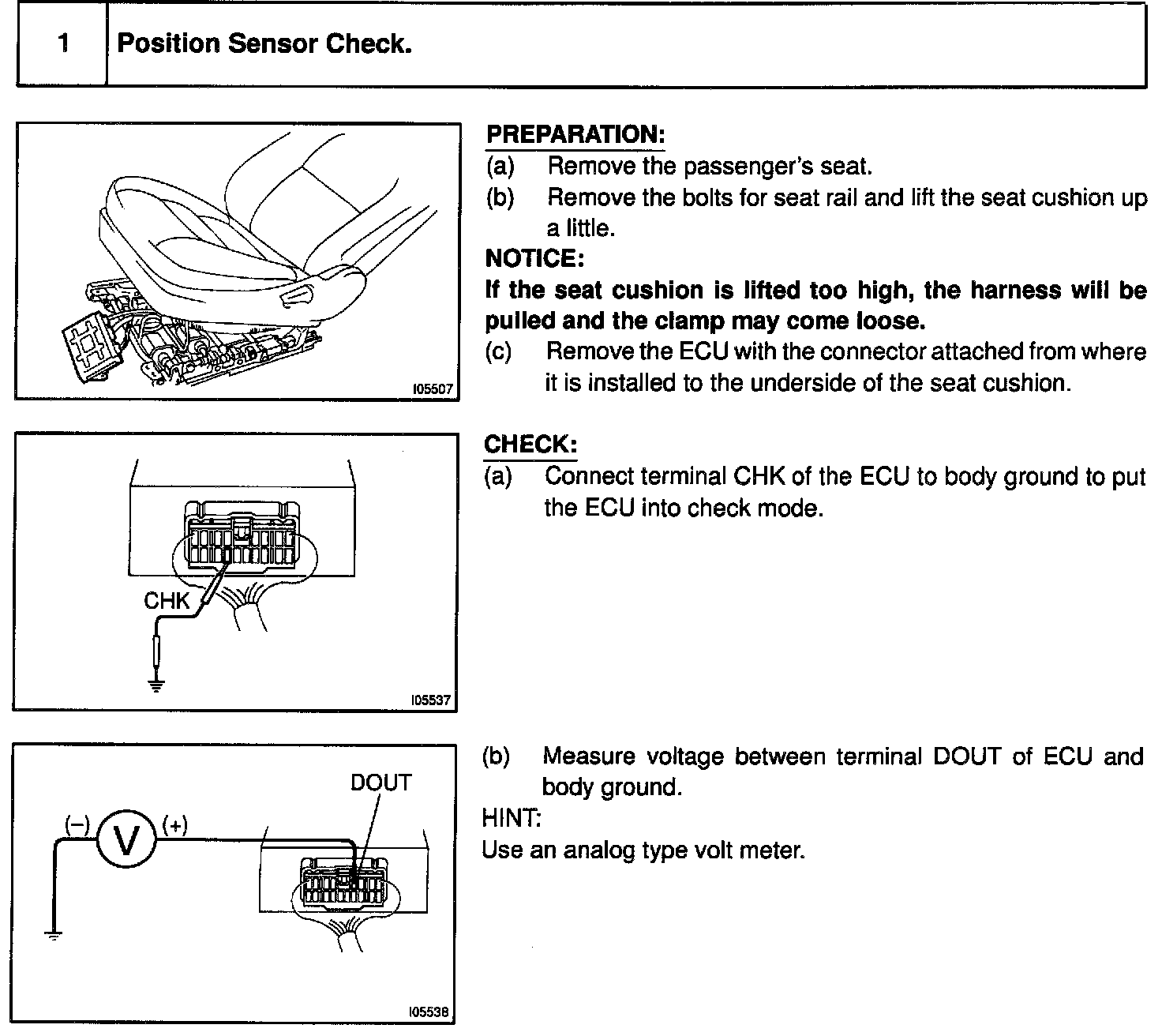

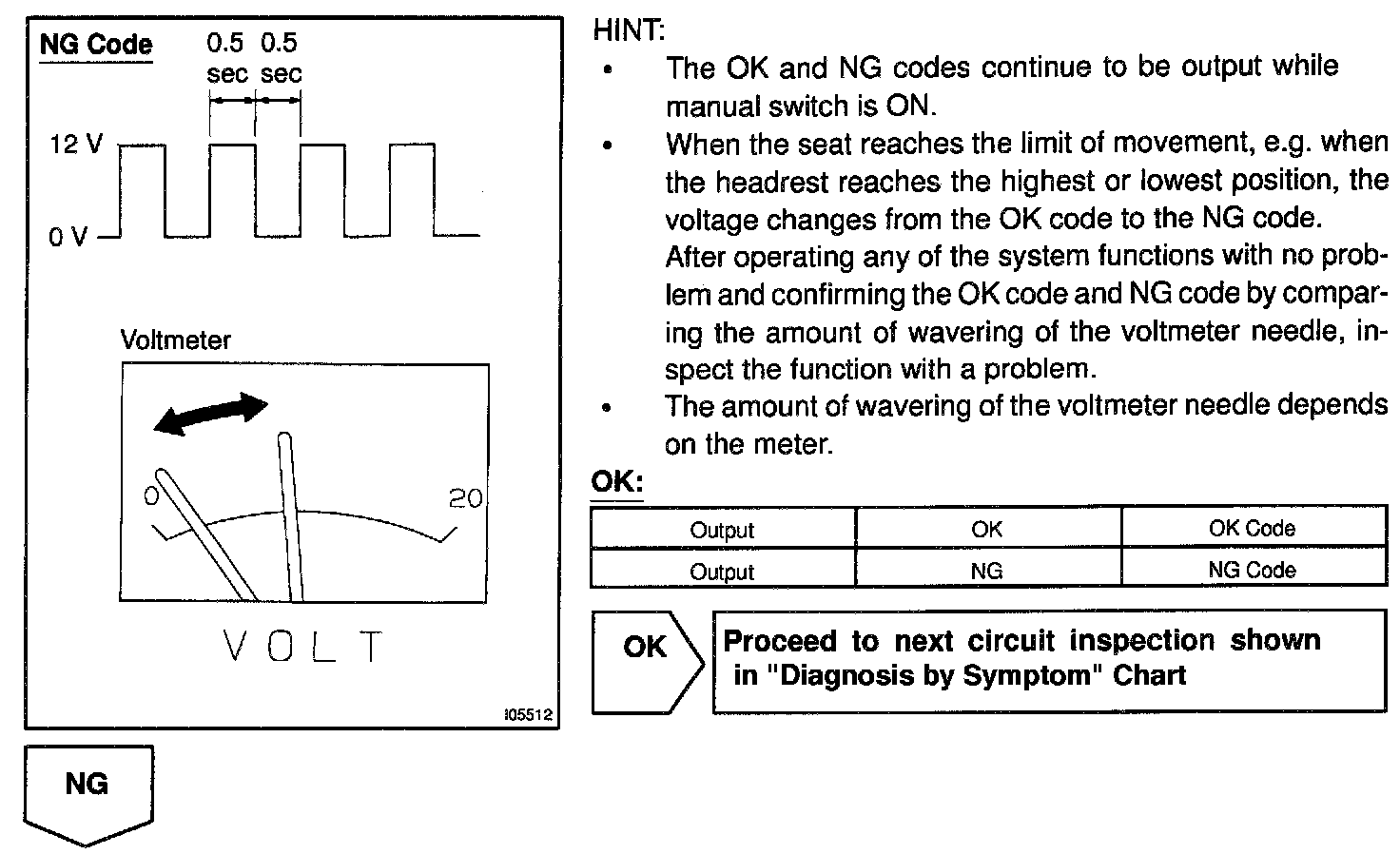

INSPECTION PROCEDURE
