Slide Motor Power Source Circuit

CIRCUIT INSPECTION

This is the power source for slide motor.

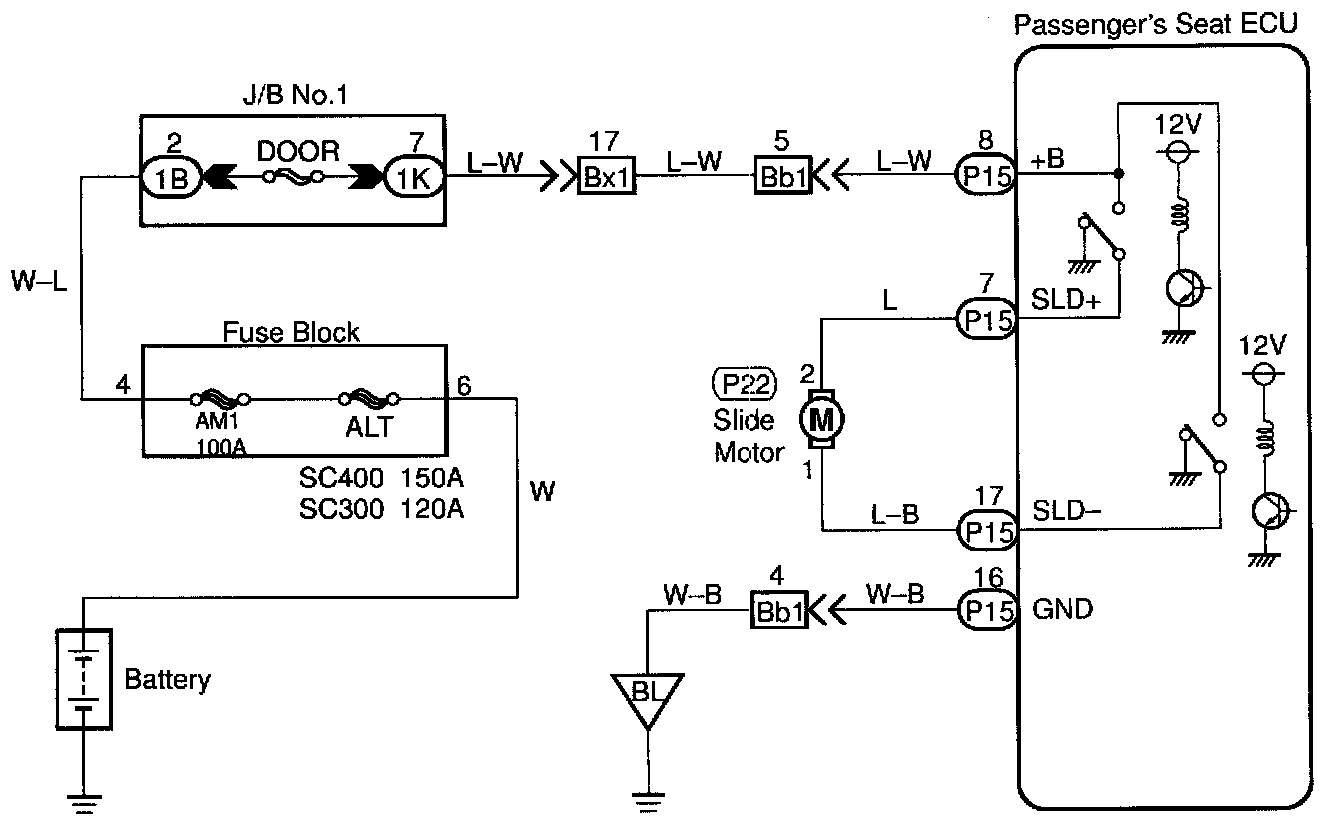

WIRING DIAGRAM

Step 1:




Step 2:




Step 3:

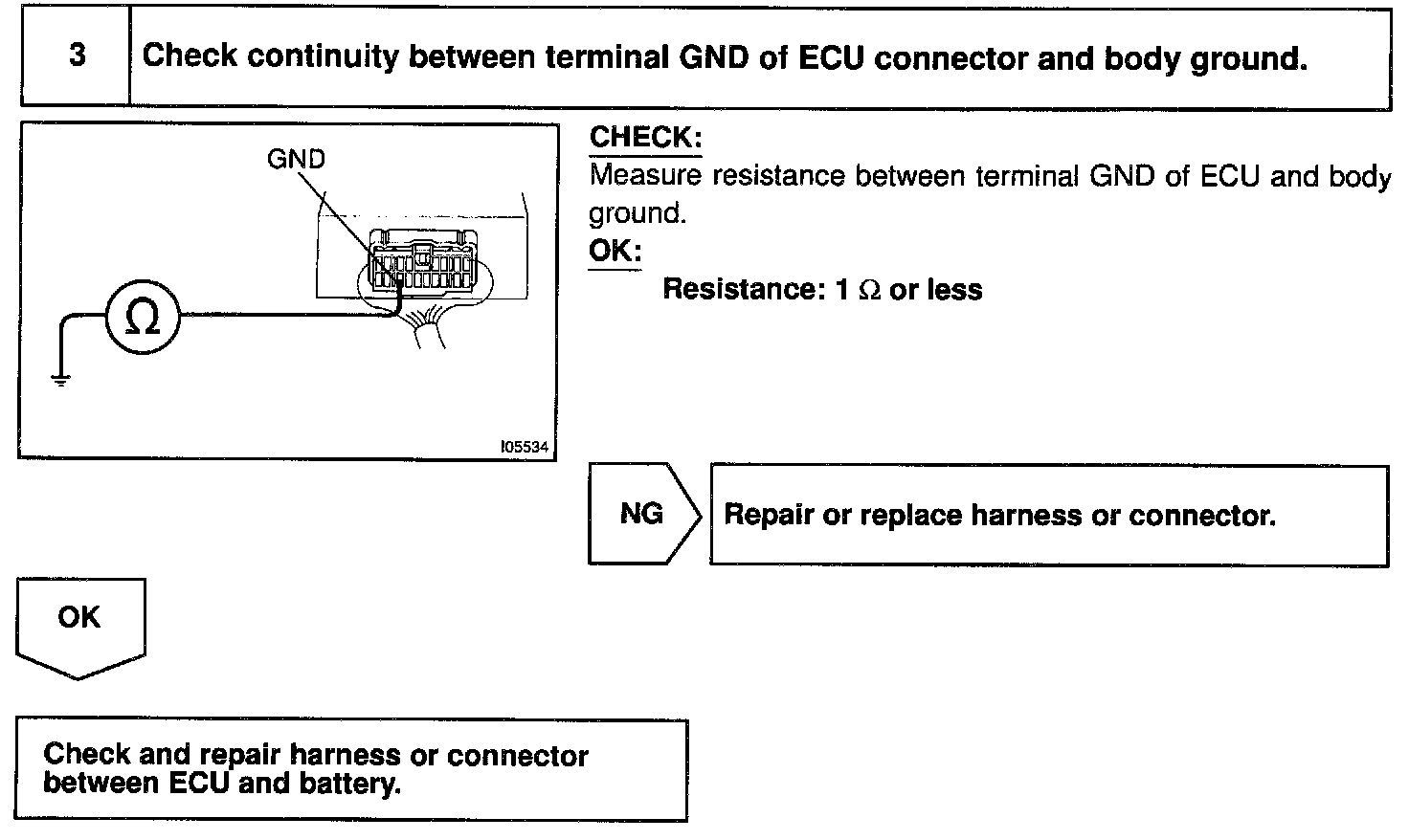

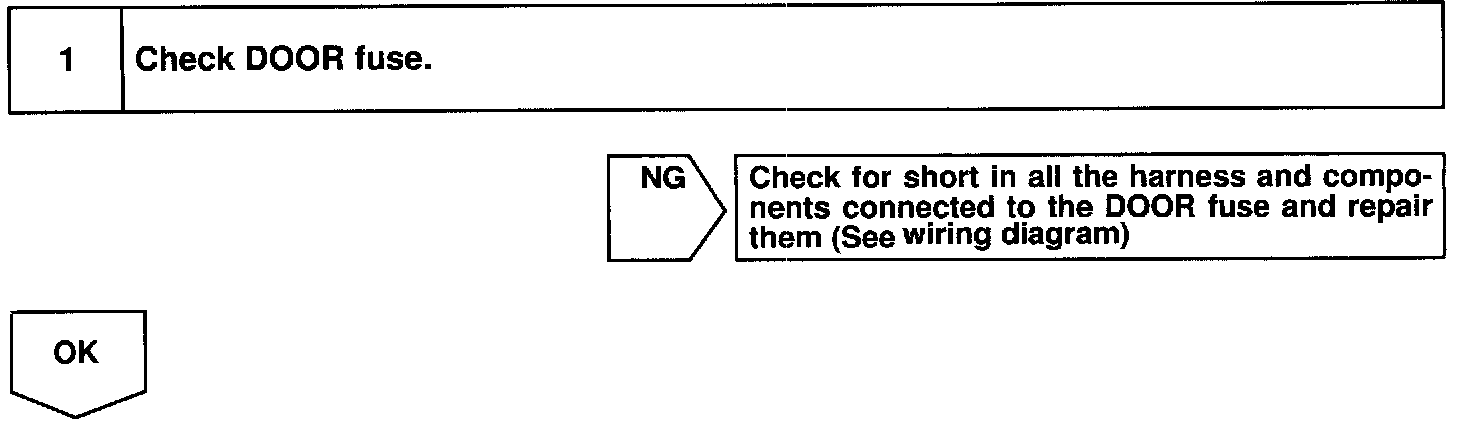

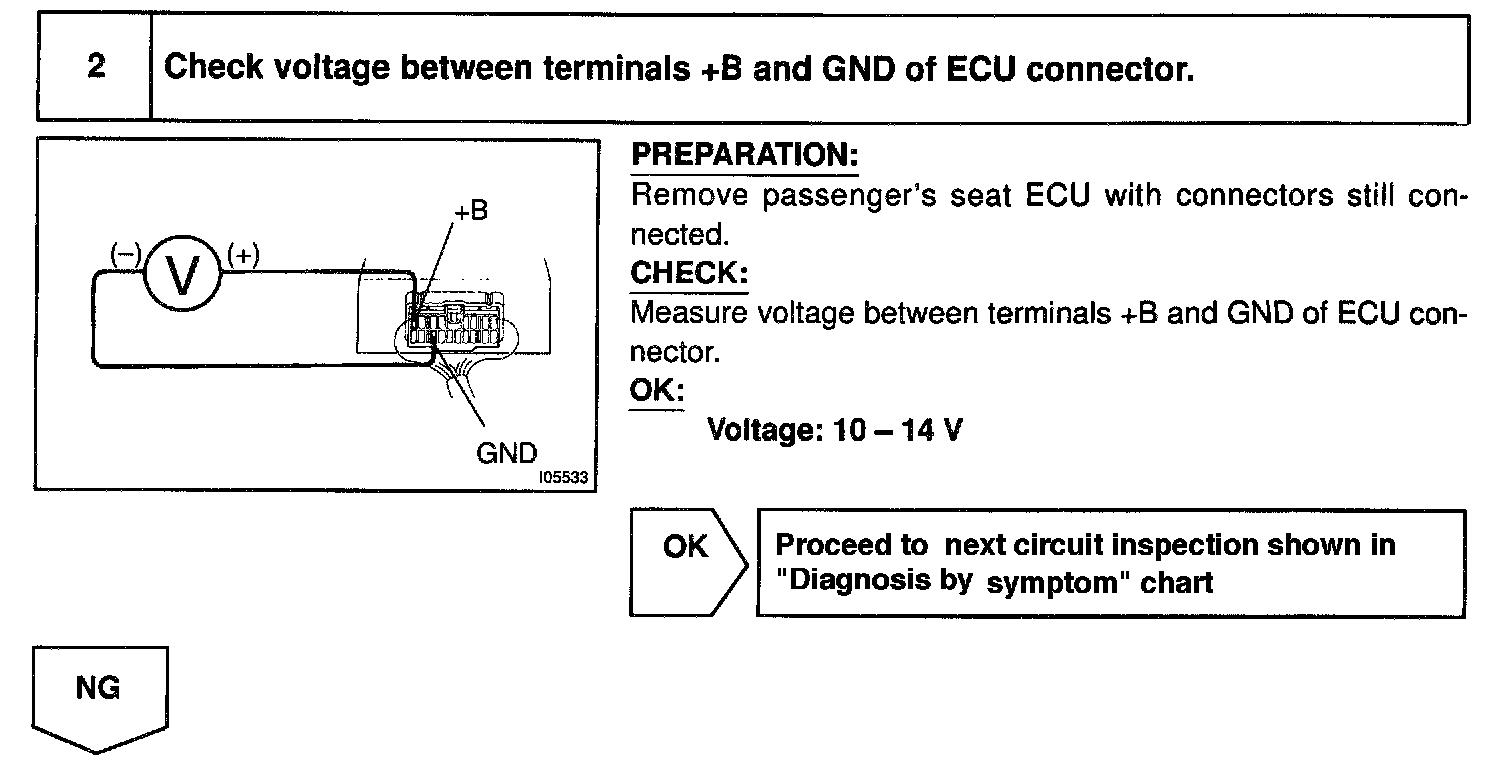

INSPECTION PROCEDURE
