Slide Motor Circuit

CIRCUIT INSPECTION

The passenger's seat ECU control the slide motor.

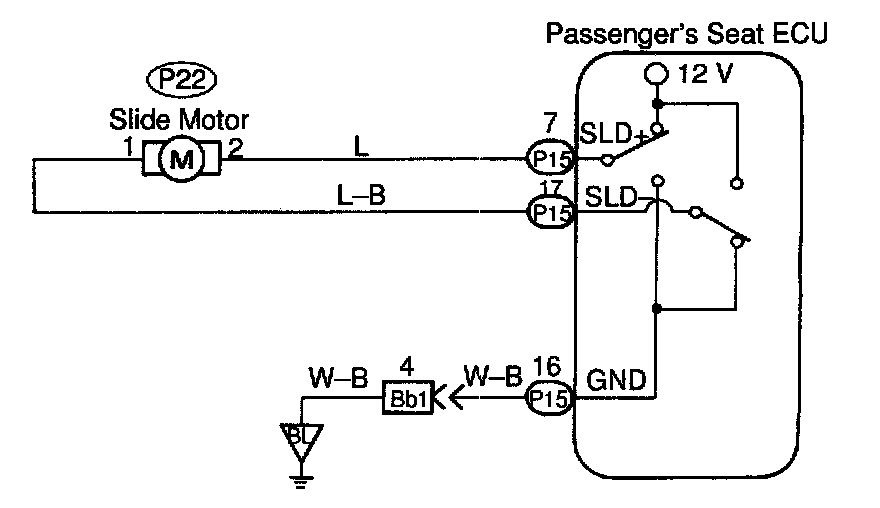

WIRING DIAGRAM

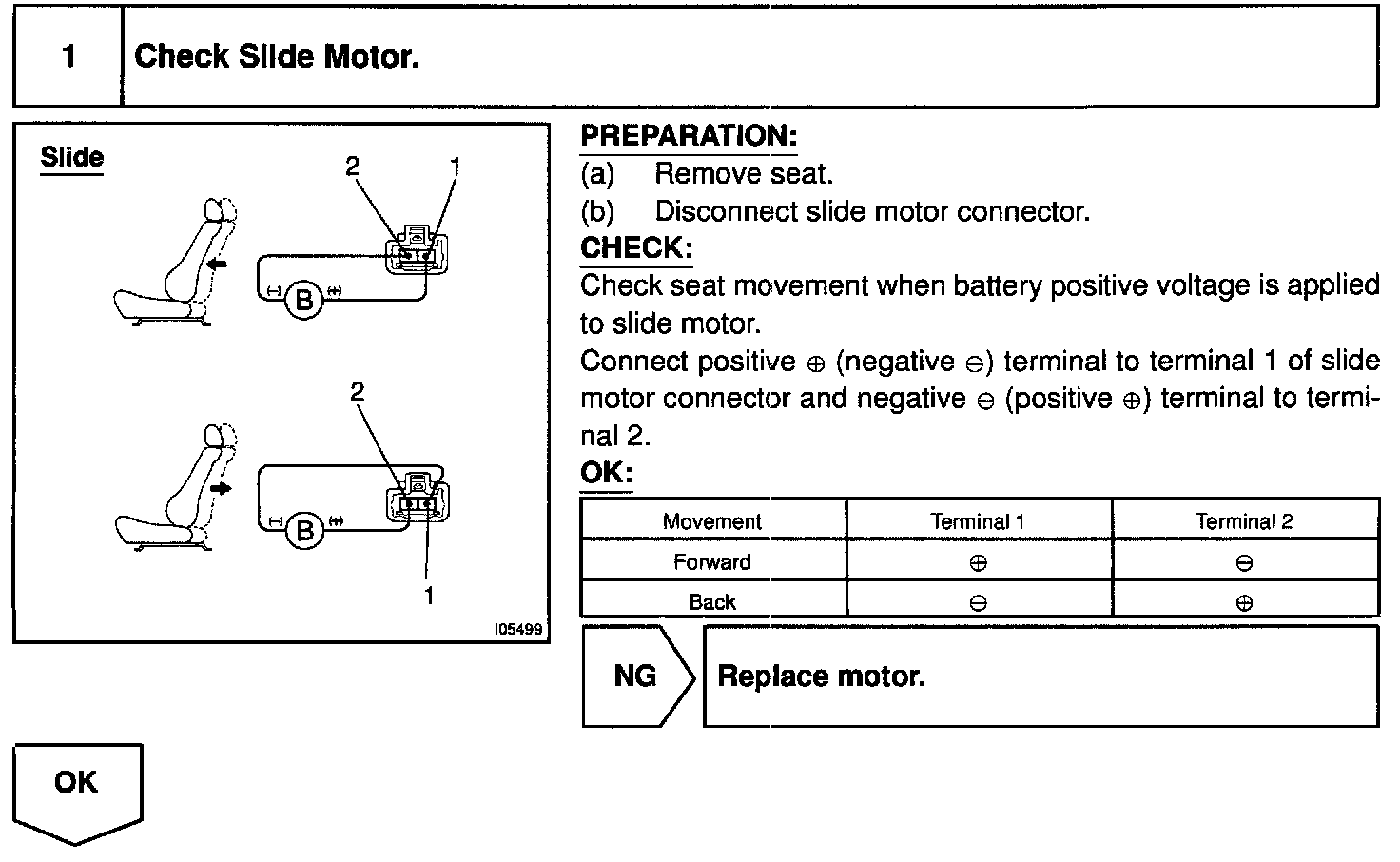

Step 1:

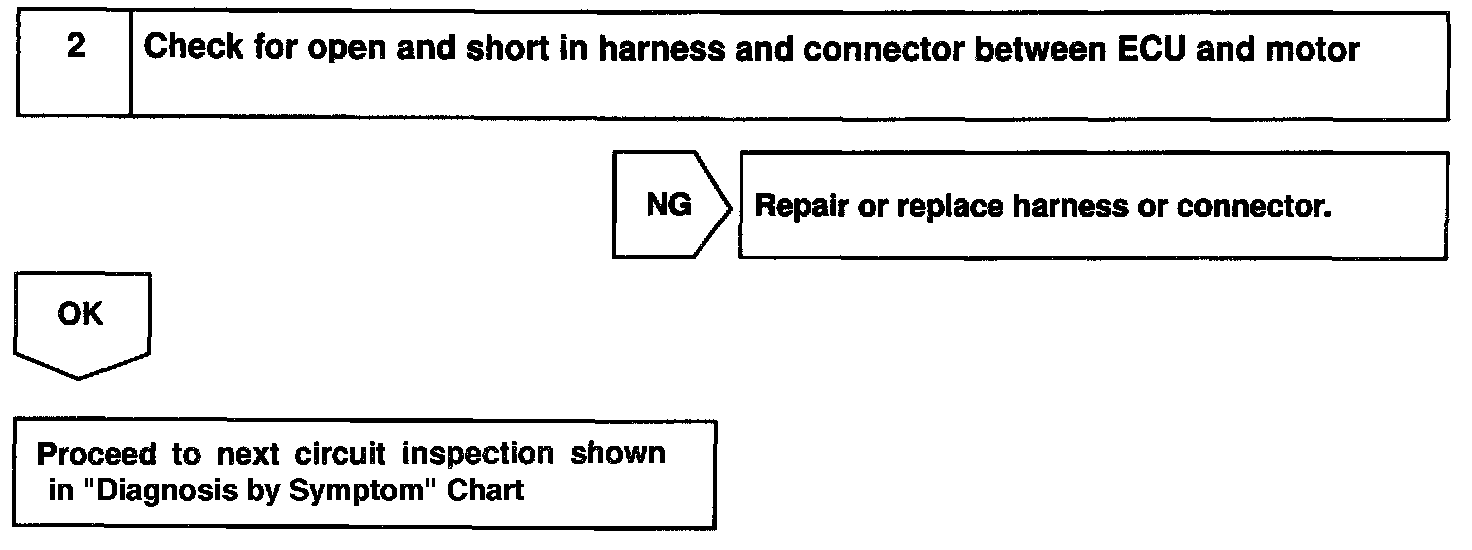

Step 2:




INSPECTION PROCEDURE
