Sunroof / Moonroof Motor: Testing and Inspection

INSPECT SLIDING ROOF MOTOR OPERATION




a. Disconnect the connector which has 3 terminals and inspect on the clamped connector side.

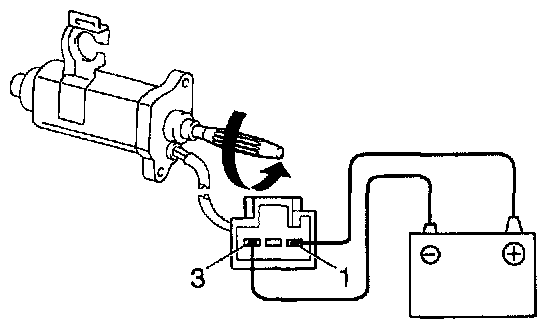

b. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 3 and check that the motor turns clockwise.

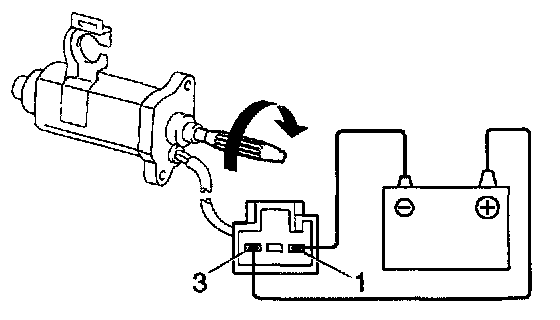

c. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 1 and check that the motor turns counterclockwise.
d. Connect the connector.
If operation is not as specified, replace the motor.
