Power Mirror Motor: Testing and Inspection

W/o Driving position memory:
INSPECT MIRROR MOTOR OPERATION

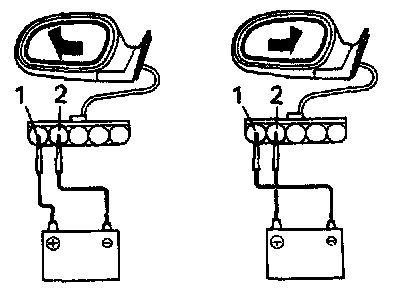

a. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, then check that the mirror turns to left side.
b. Reverse the polarity and check that the mirror turns to right side.

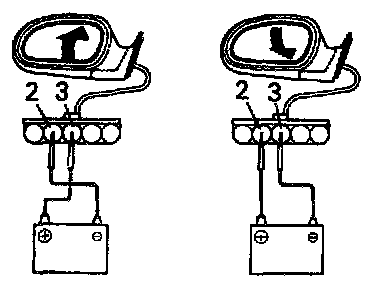

c. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 2, then check that the mirror turns upward.
d. Reverse the polarity and check that the mirror turns downward.
If operation is not as specified, replace the mirror assembly.

W/ Driving position memory:
INSPECT MIRROR MOTOR OPERATION

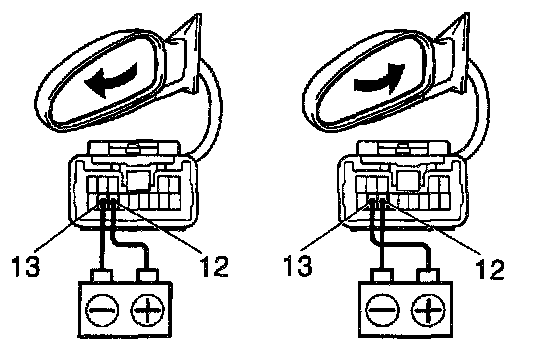

a. Connect the positive (+) lead from the battery to terminal 12 and negative (-) lead to terminal 13, then check that the mirror turns to left side.
b. Reverse the polarity and check that the mirror turns to right side.

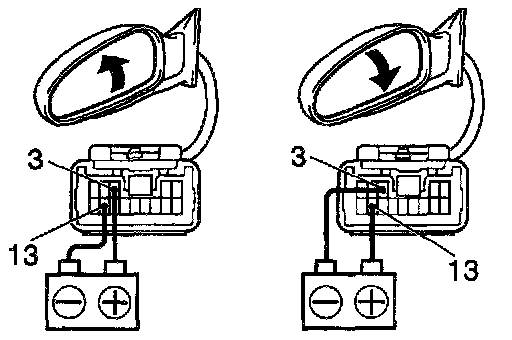

c. Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 13, then check that the mirror turns upward.
d. Reverse the polarity and check that the mirror turns downward.
If operation is not as specified, replace the mirror assembly.
