Luggage Door Opener Main Switch & Opener Switch Circuit

CIRCUIT INSPECTION




The luggage compartment door opener main switch is of when it is pushed in, and the luggage compartment door opener switch is on when it is puled.

The ECU energizes the luggage compartment door opener motor only when the main switch and opener switch are on together.

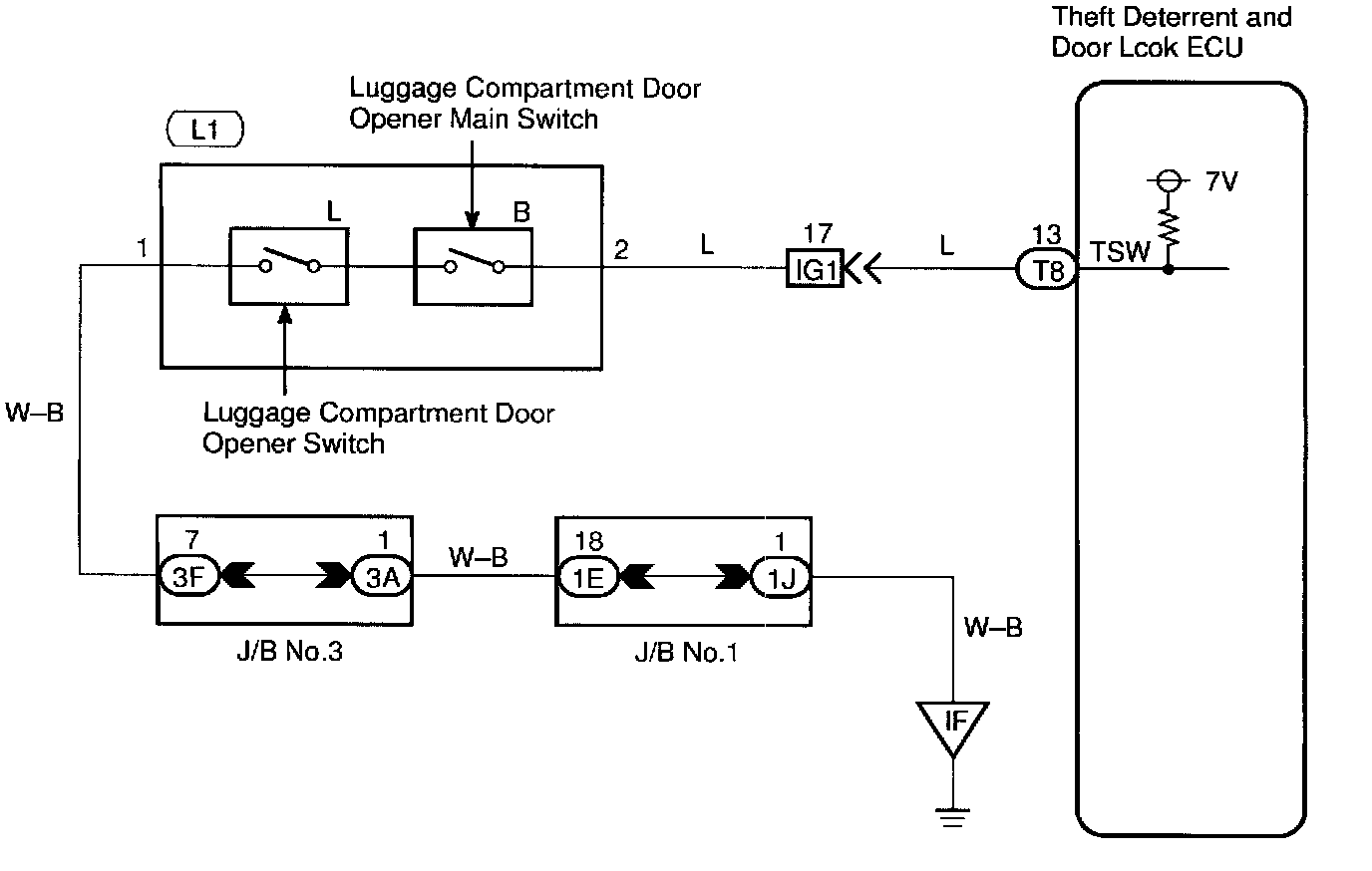

WIRING DIAGRAM

Step 1:

Step 2:

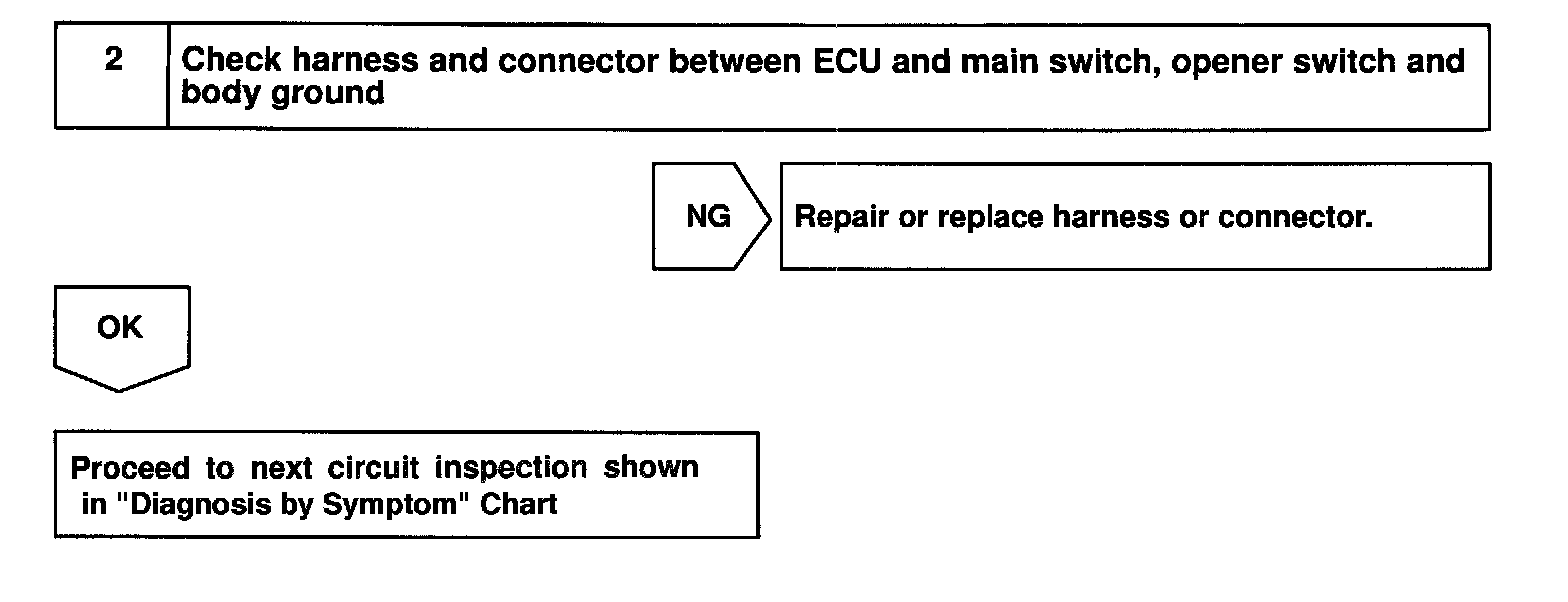

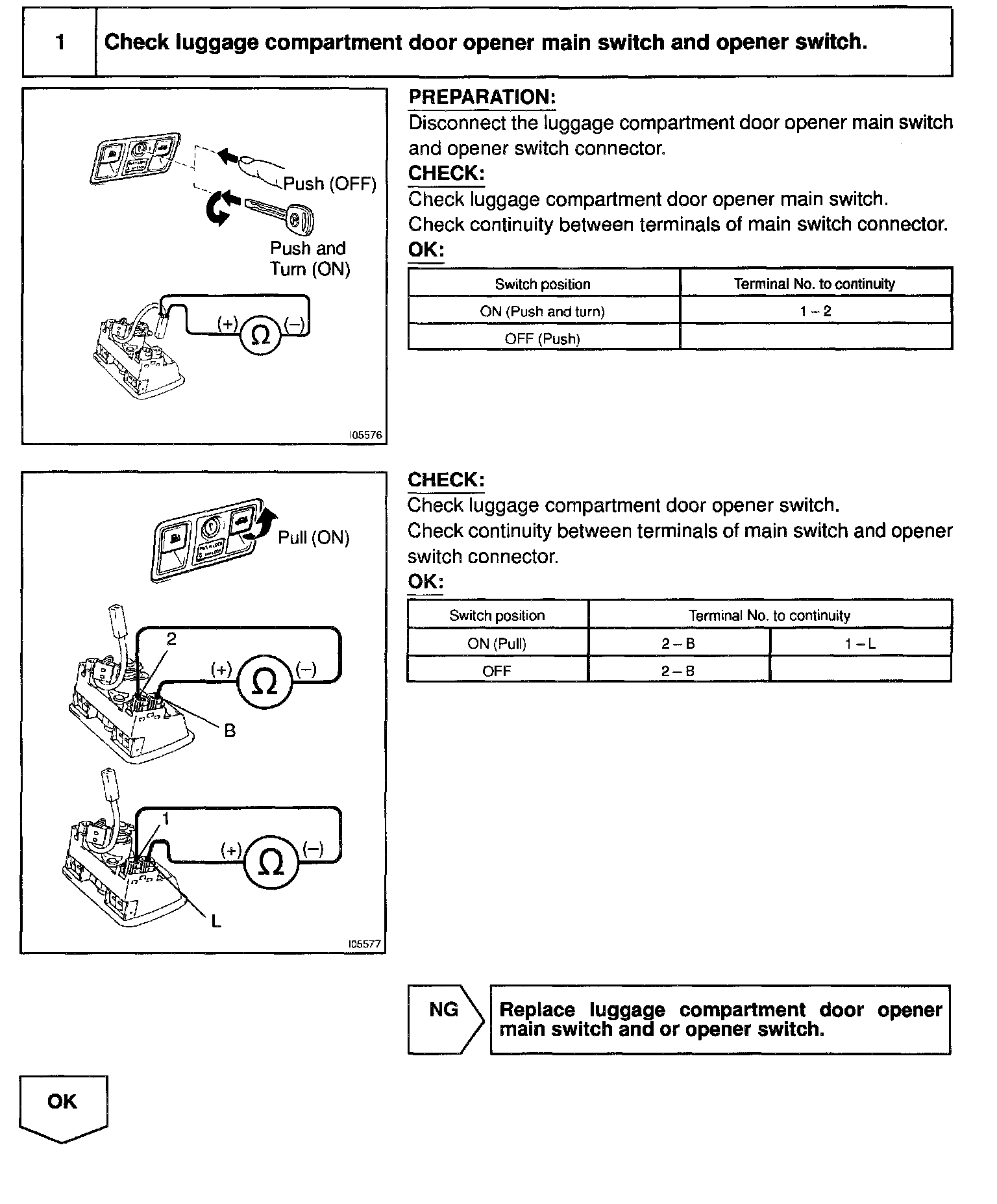

INSPECTION PROCEDURE
