Luggage Compartment Door Opener Motor Circuit

CIRCUIT INSPECTION

This circuit unlocks the luggage compartment door when the ECU sends signals to the luggage compartment door opener motor.

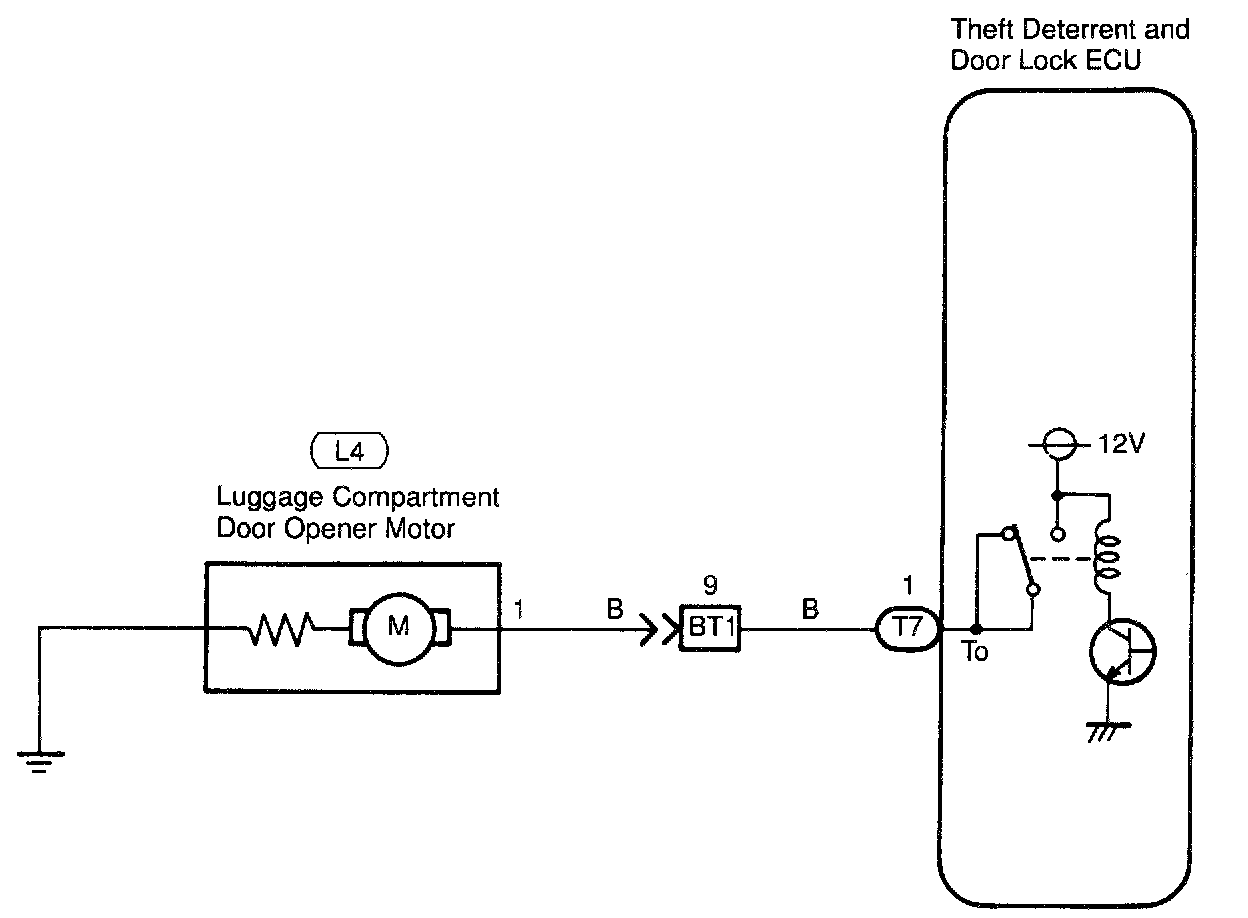

WIRING DIAGRAM

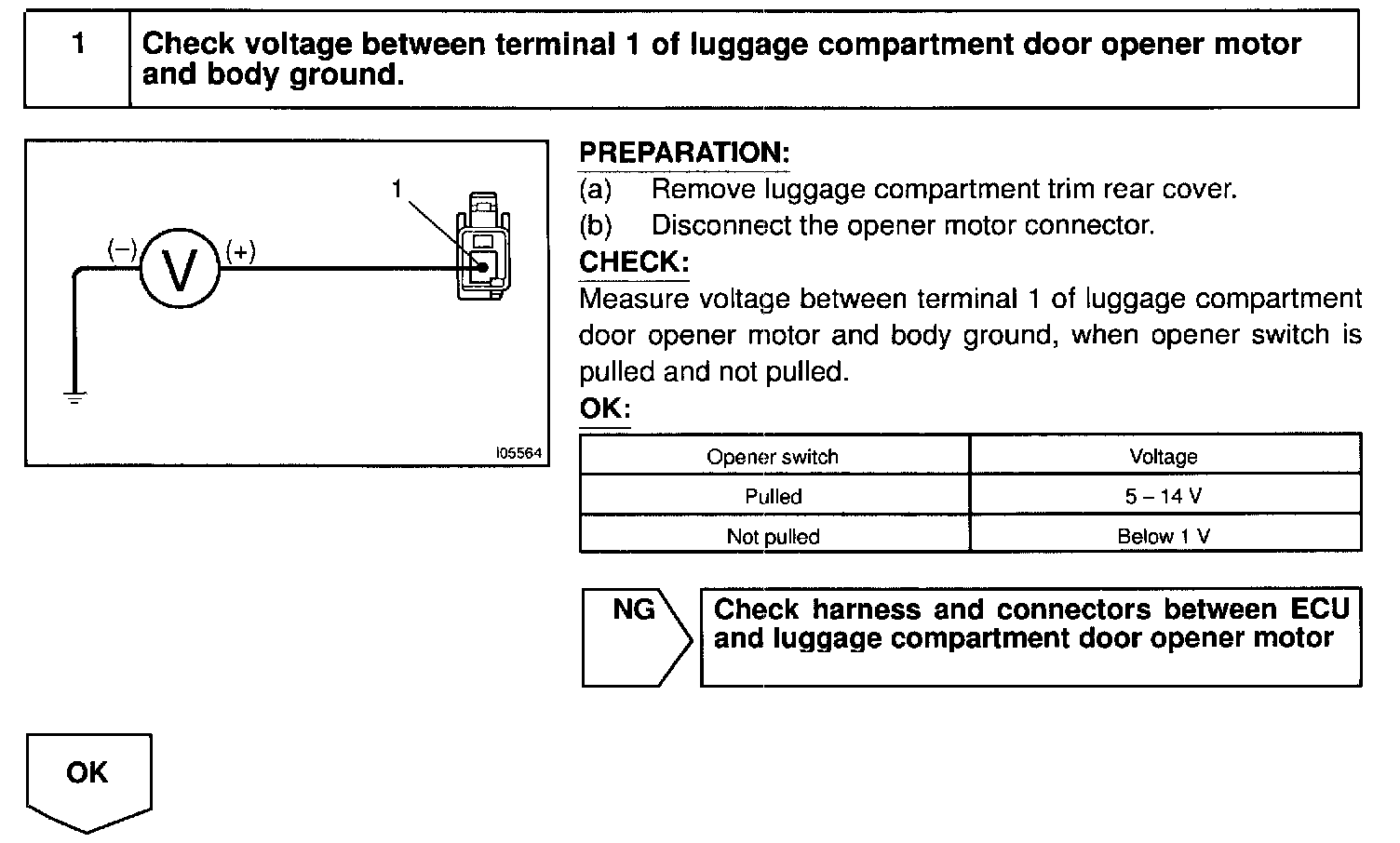

Step 1:

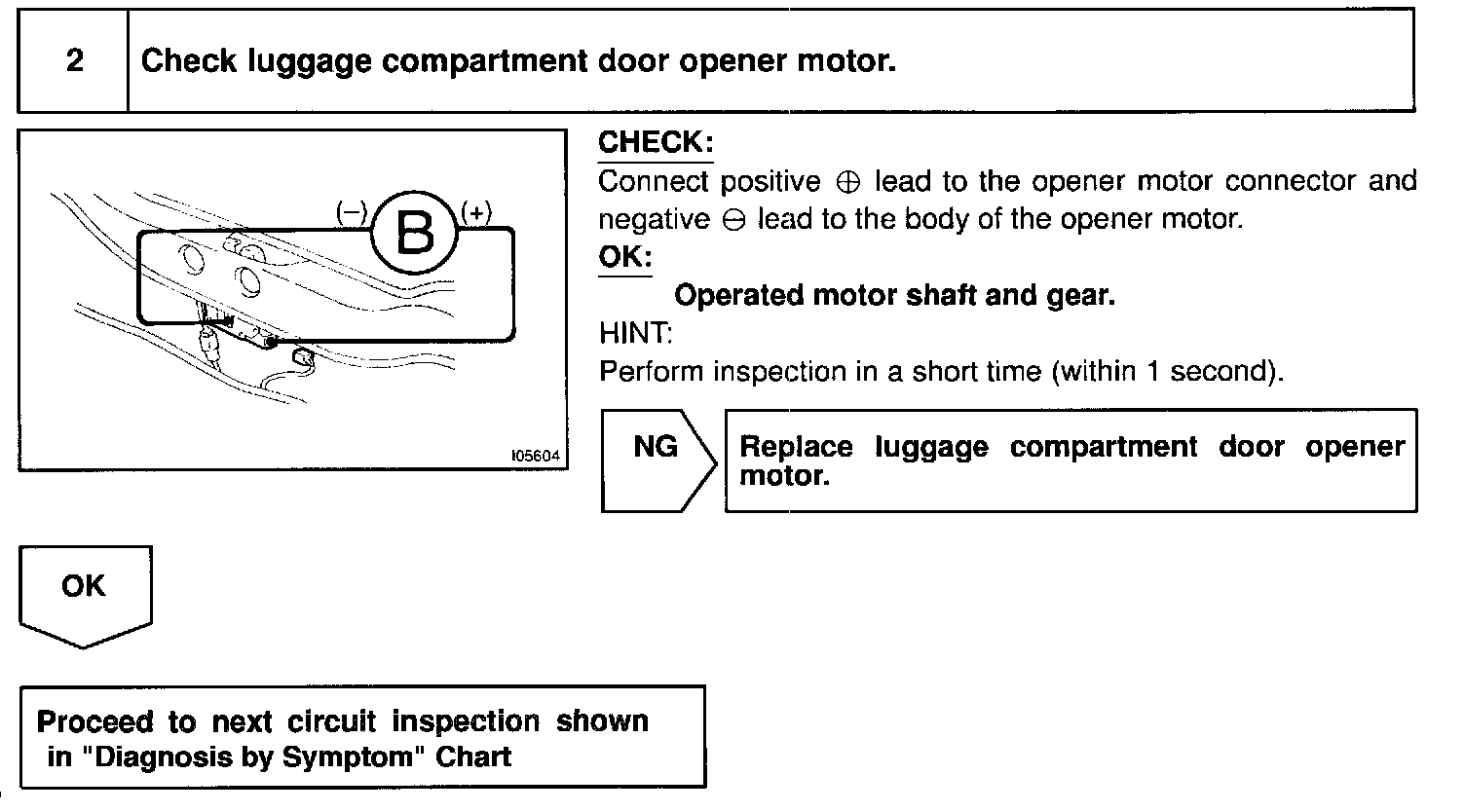

Step 2:

INSPECTION PROCEDURE
