Door Open Detection Switch Circuit
CIRCUIT INSPECTIONThe door open detection switch is built in the door lock assembly.
If is on when the door is open and off when the door is closed.
WIRING DIAGRAM

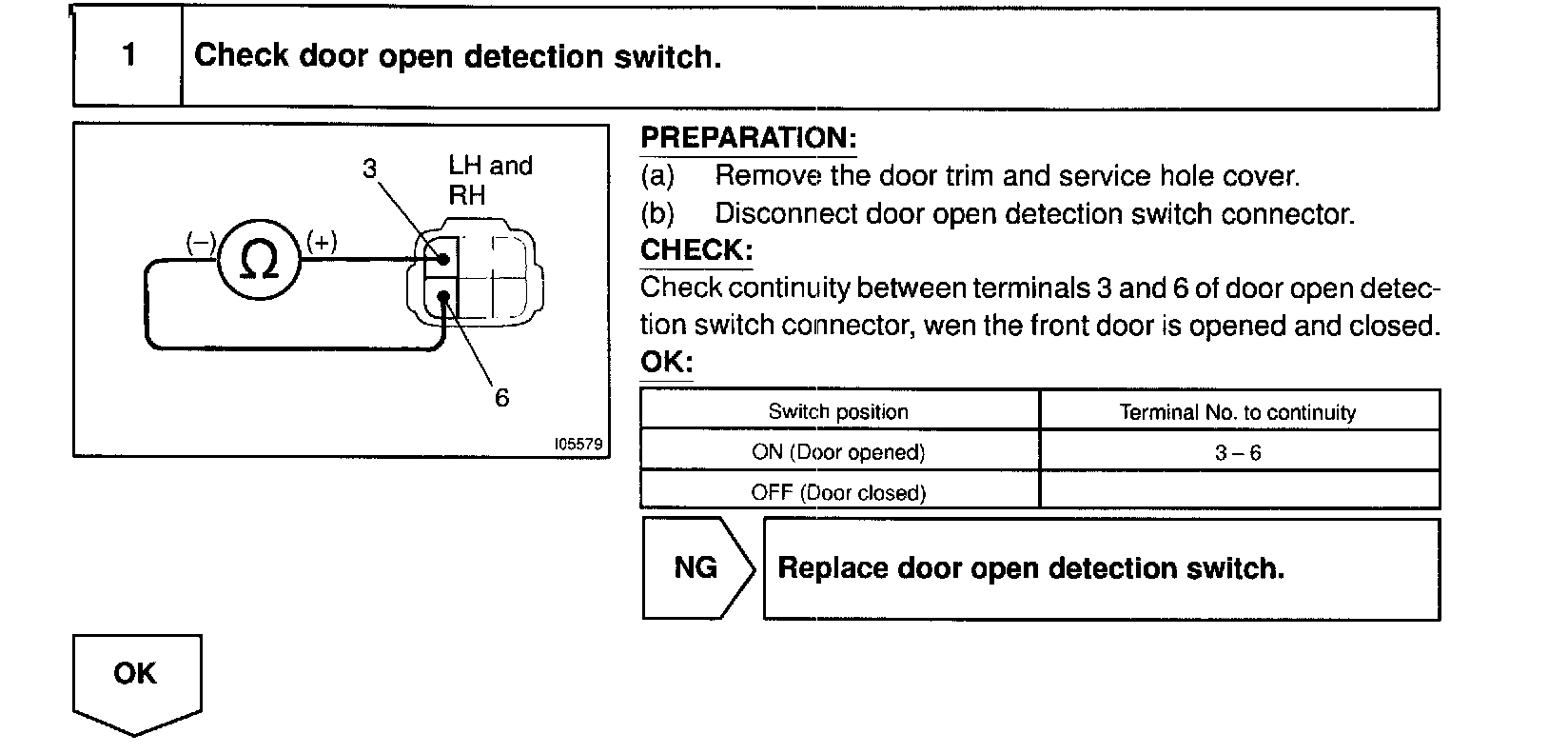

Step 1:

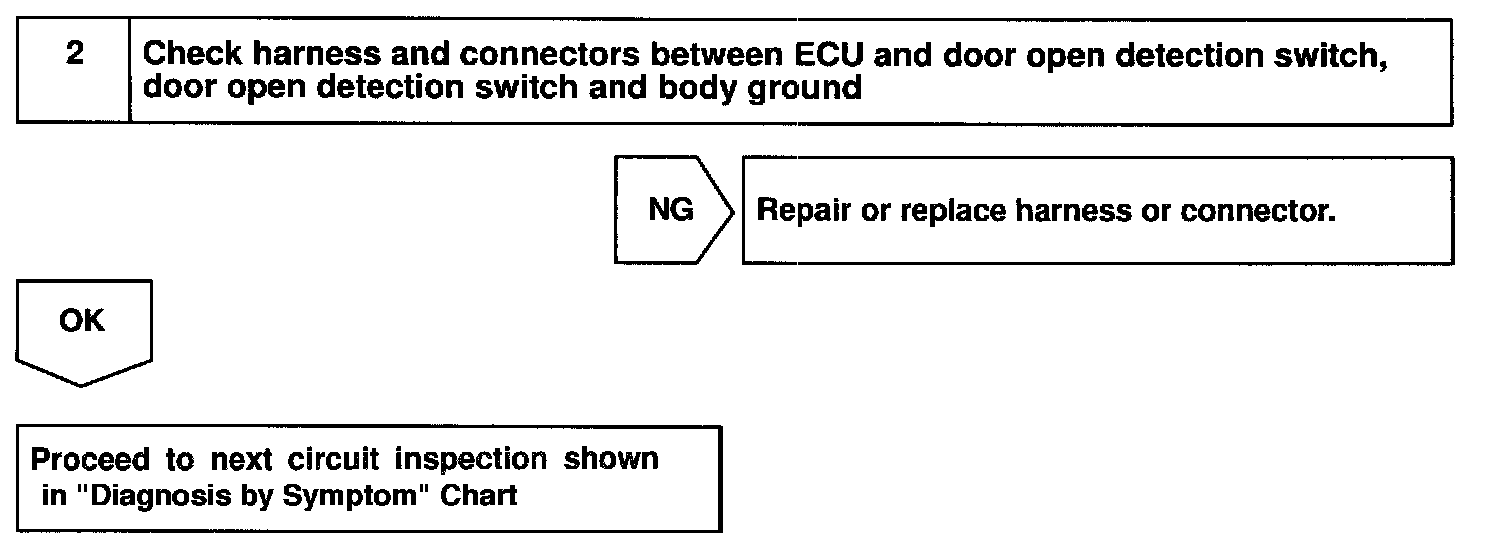

Step 2:
INSPECTION PROCEDURE
The door open detection switch is built in the door lock assembly.
If is on when the door is open and off when the door is closed.
WIRING DIAGRAM
INSPECTION PROCEDURE
