Door Key Lock and Unlock Switch Circuit

CIRCUIT INSPECTION

When the key is turned to the lock side, terminal 3 of the switch is grounded and when the key is turned to the unlock side, terminal 1 of the switch is grounded.

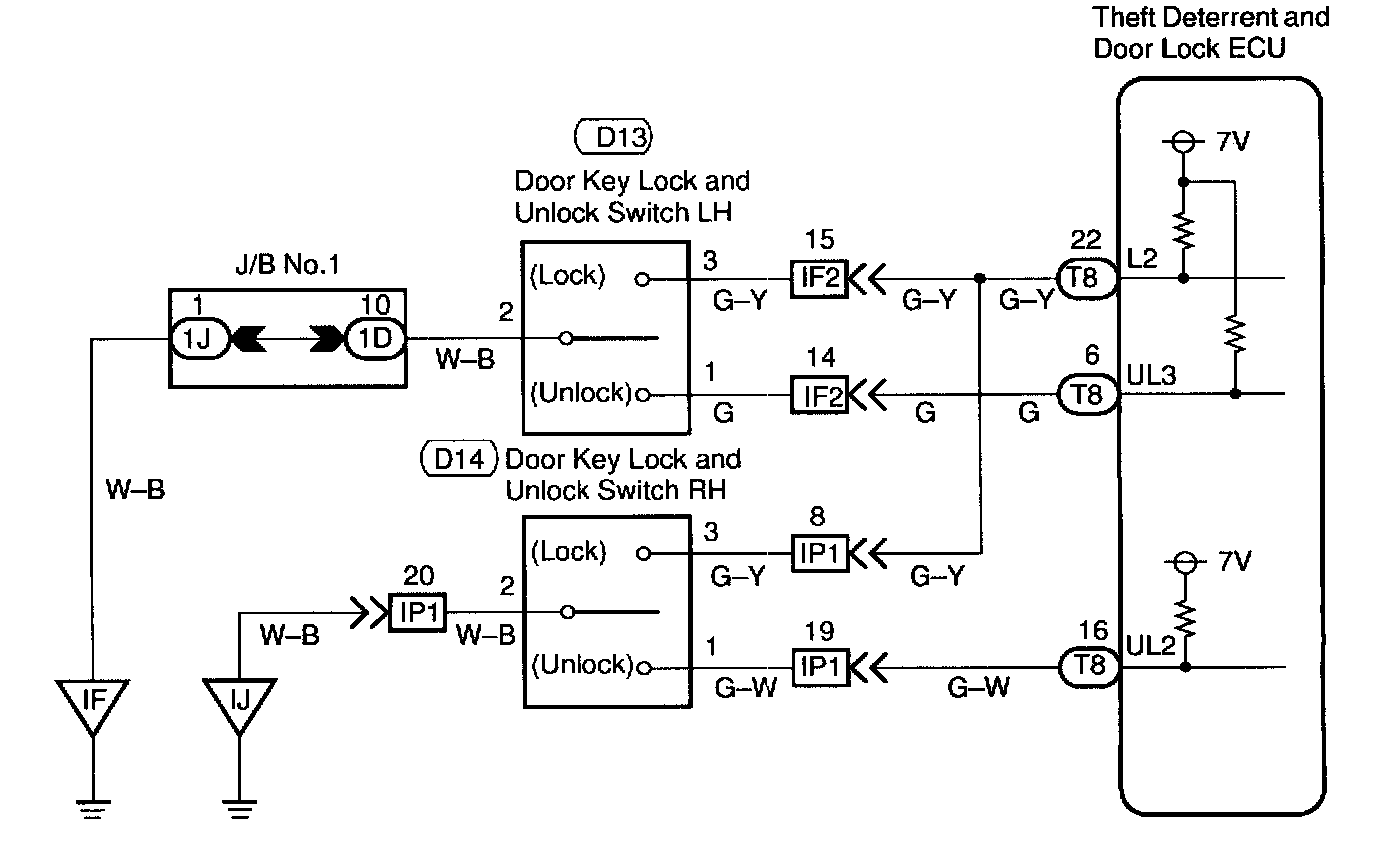

WIRING DIAGRAM

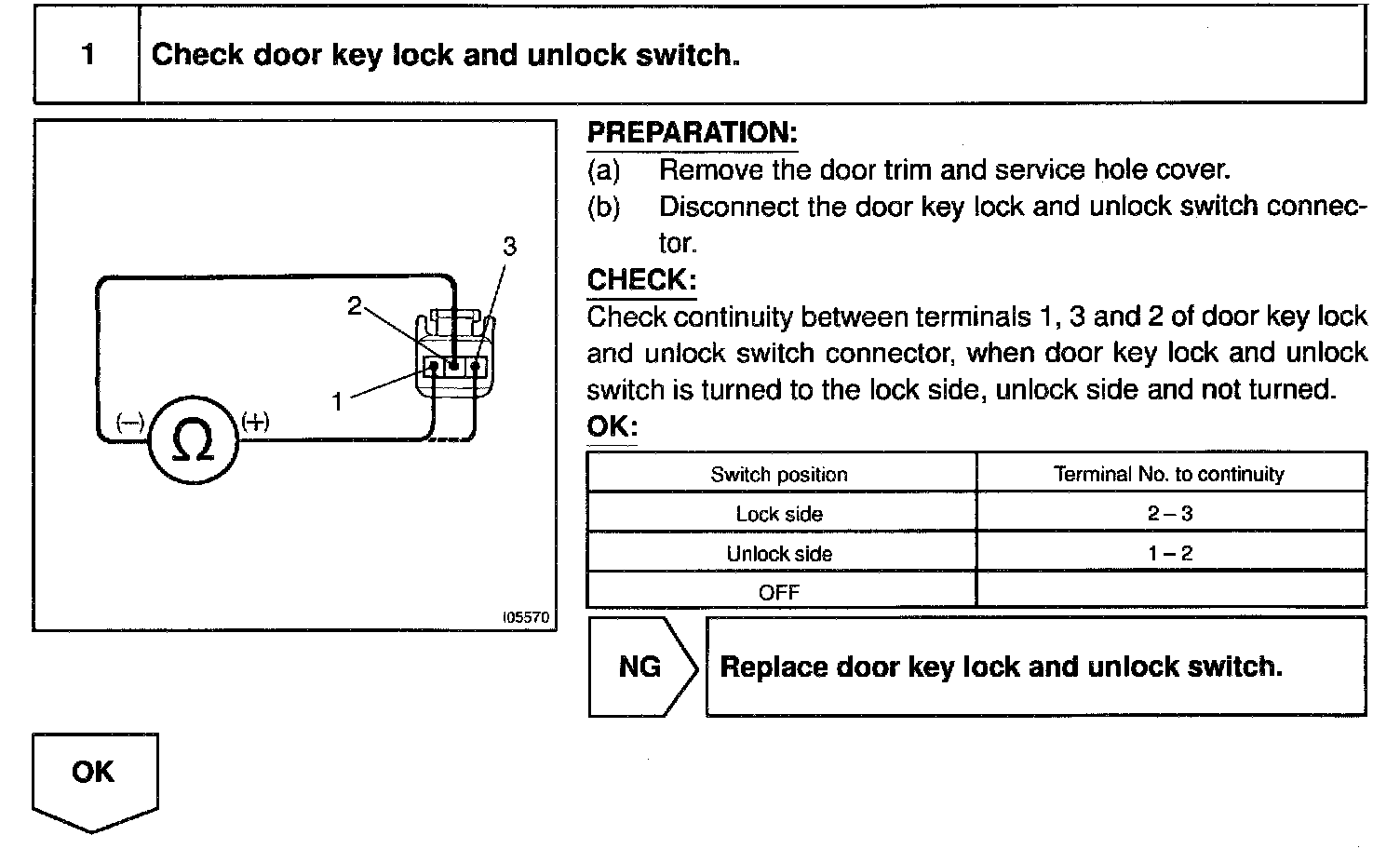

Step 1:

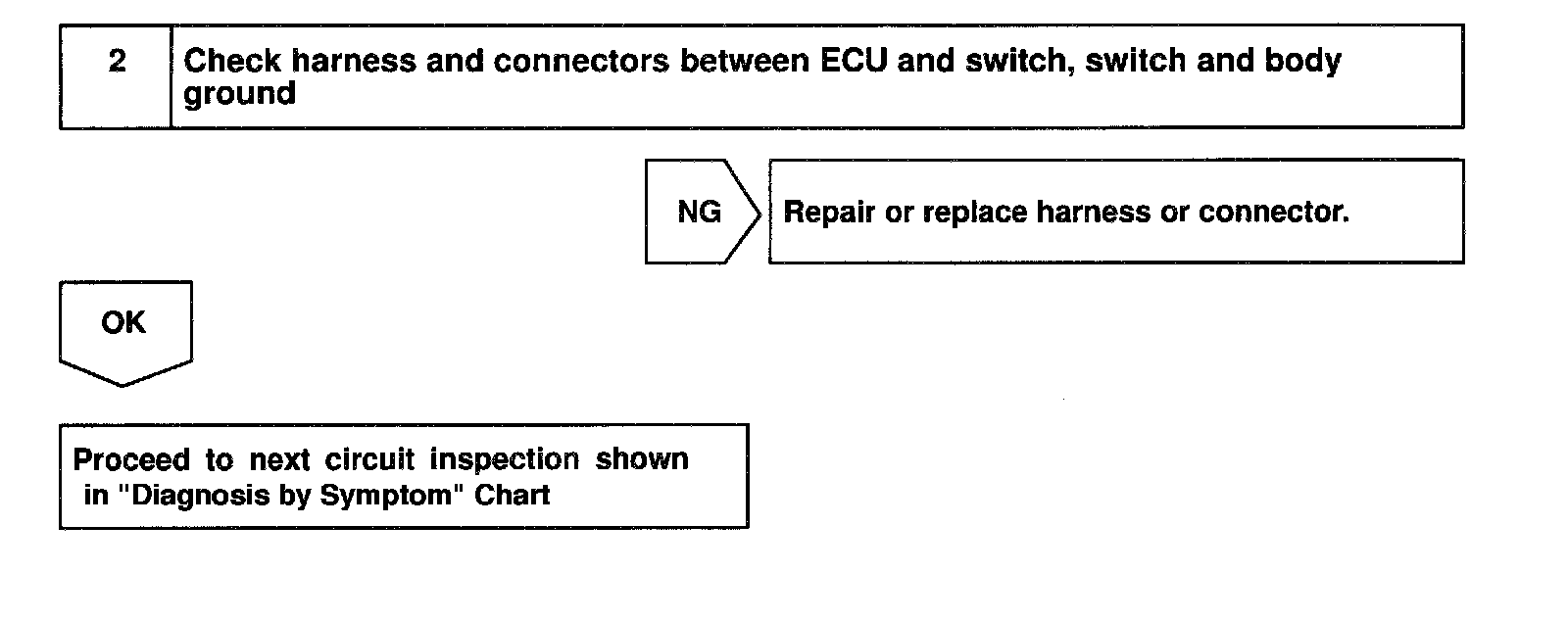

Step 2:

INSPECTION PROCEDURE
