Antenna Motor: Service and Repair

REMOVAL

Motor Antenna:

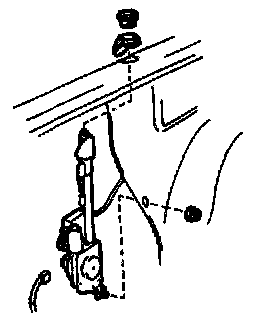

REMOVE MOTOR ANTENNA
a. Remove the antenna nut.
b. Remove the LH side cover.
c. Disconnect the motor antenna connector and the antenna cord.
d. Remove the nut and the motor antenna assembly.

INSTALLATION

INSTALL MOTOR ANTENNA
a. Install the antenna nut.
b. Connect the motor antenna connector and the antenna cord.
c. install the nut.
