Transmission Control System

CIRCUIT DESCRIPTION

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

The ECM receives signals (NSW, R, 2 and L) from the park/neutral position switch. When the signal is not sent to the ECM from the park/neutral position switch, the ECM judges that the shift lever is in D position.

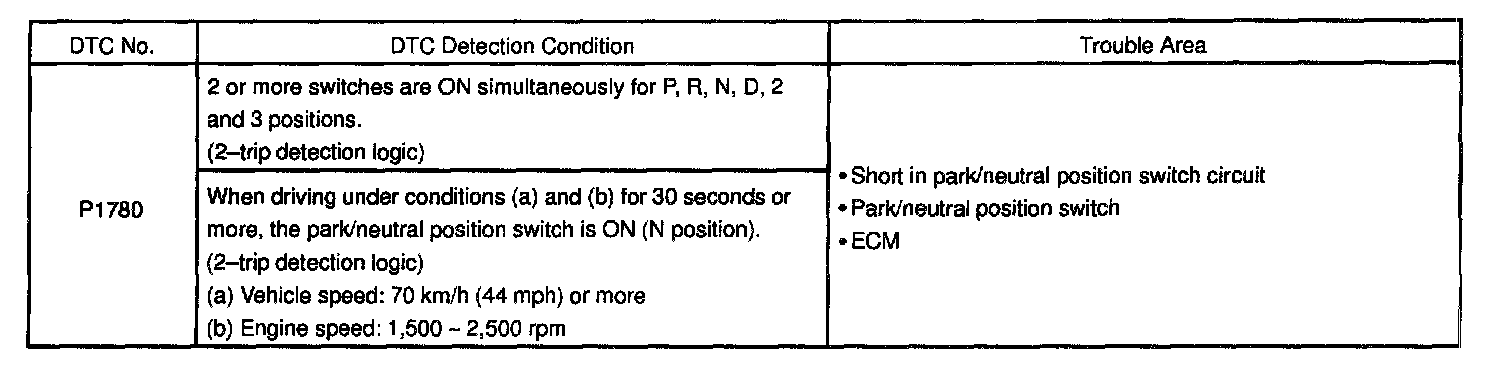

DETECTING CONDITIONS




WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

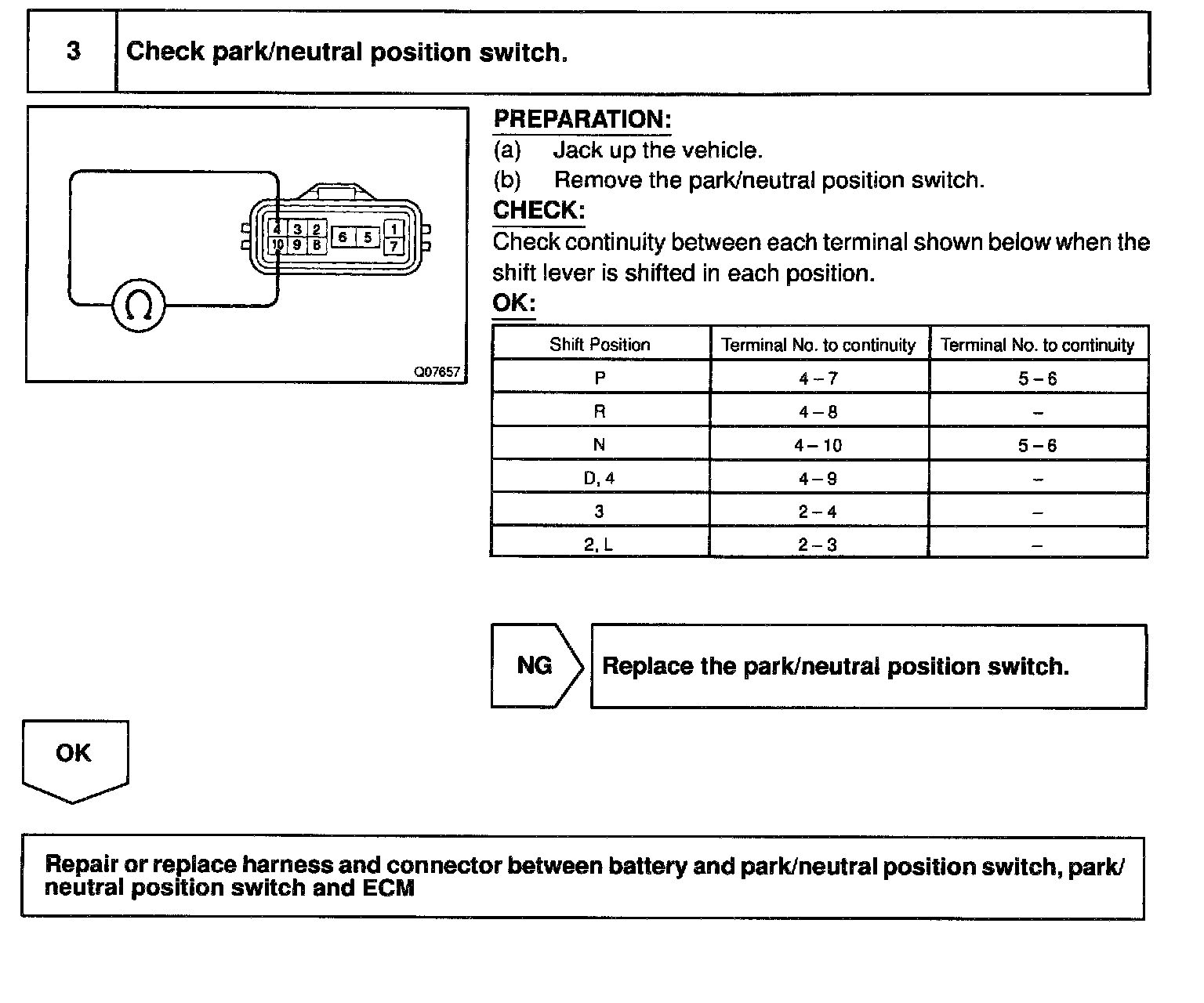

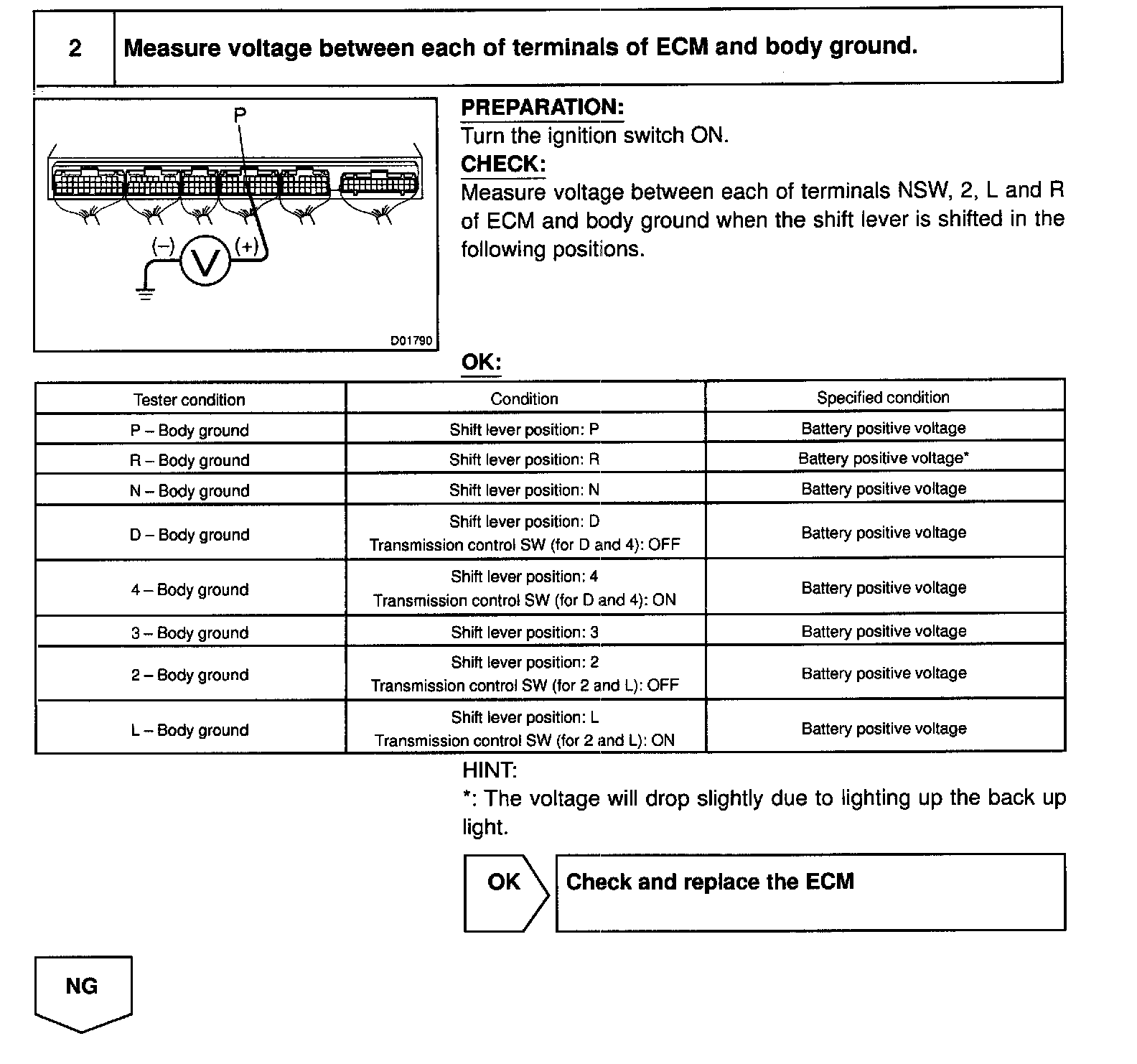

INSPECTION PROCEDURE
