Troubleshooting

CIRCUIT DESCRIPTION

VVT system controls the intake valve timing to proper timing in response to driving condition.

ECM controls Oil Control Valve (OCV) to make the intake valve timing properly, and oil pressure controlled with OCV is supplied to the VVT controller, and then VVT controller changes relative position between the camshaft and the crankshaft.




DETECTING CONDITIONS




WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:
- If DTC P1349 is displayed, check right bank VVT system circuit.
- If DTC P1354 is displayed, check left bank VVT system circuit.
- Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected, when troubleshooting it is useful for determining whether the vehicle was running or stopped, the engine warmed up or not, the air-fuel ratio lean or rich, etc. at the time of the malfunction.

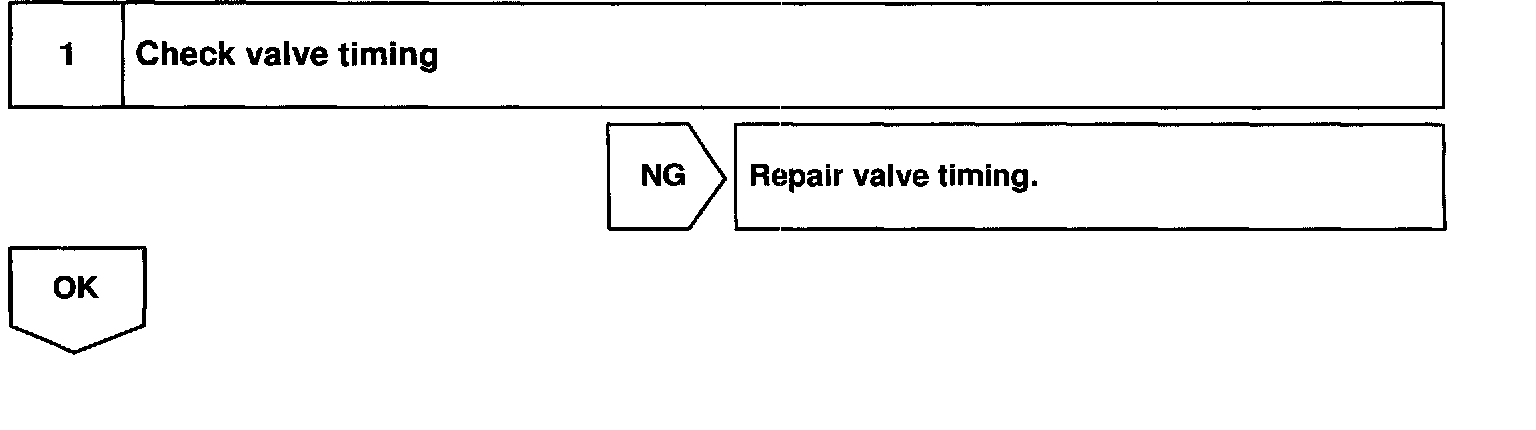

Step 1:

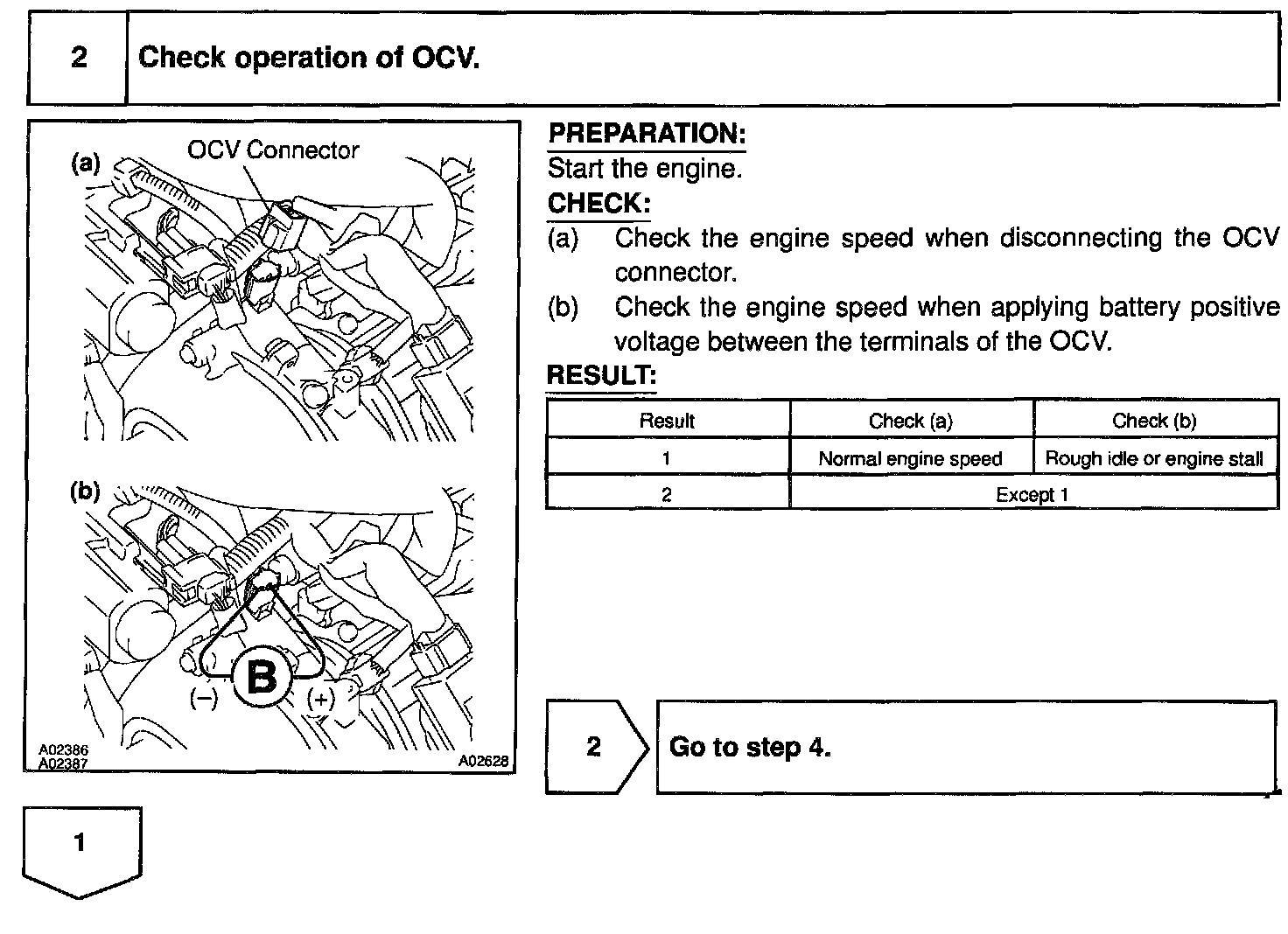

Step 2:

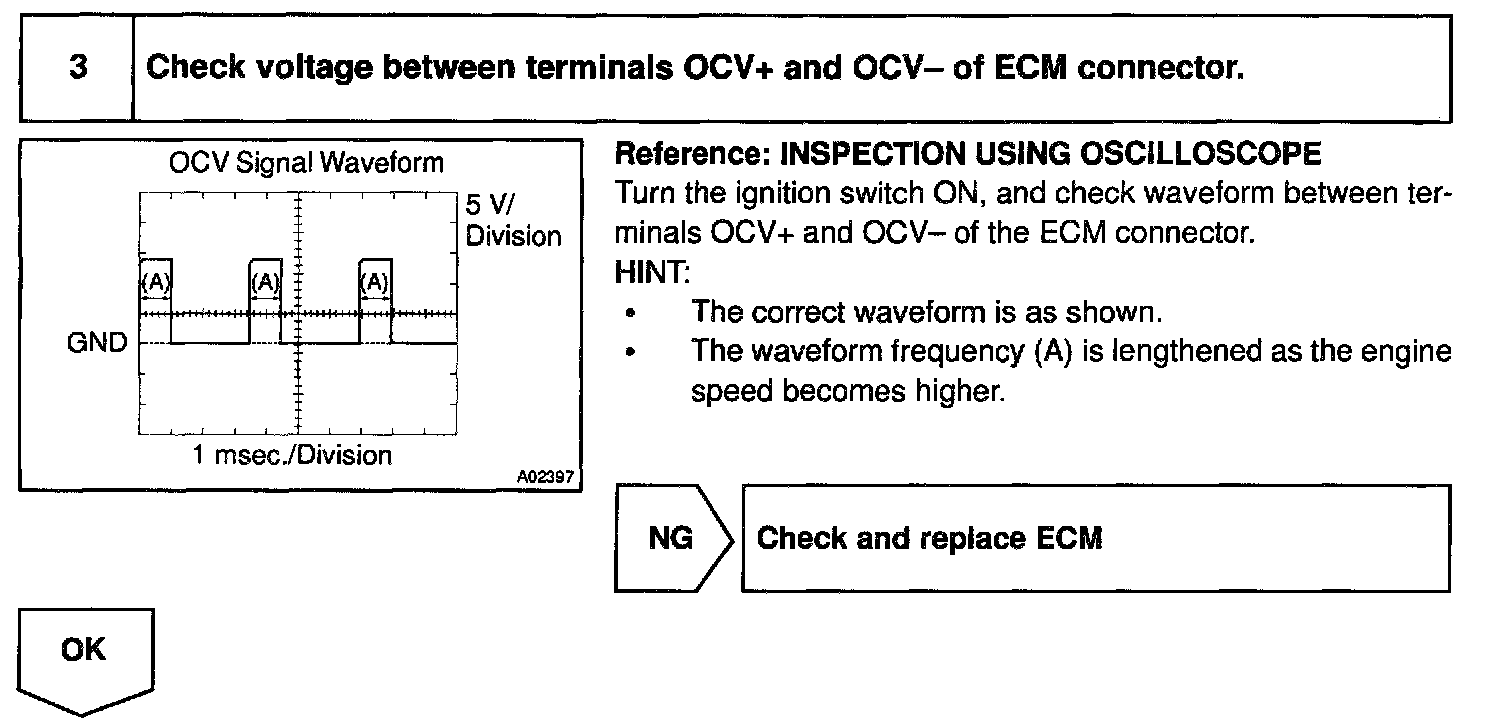

Step 3:

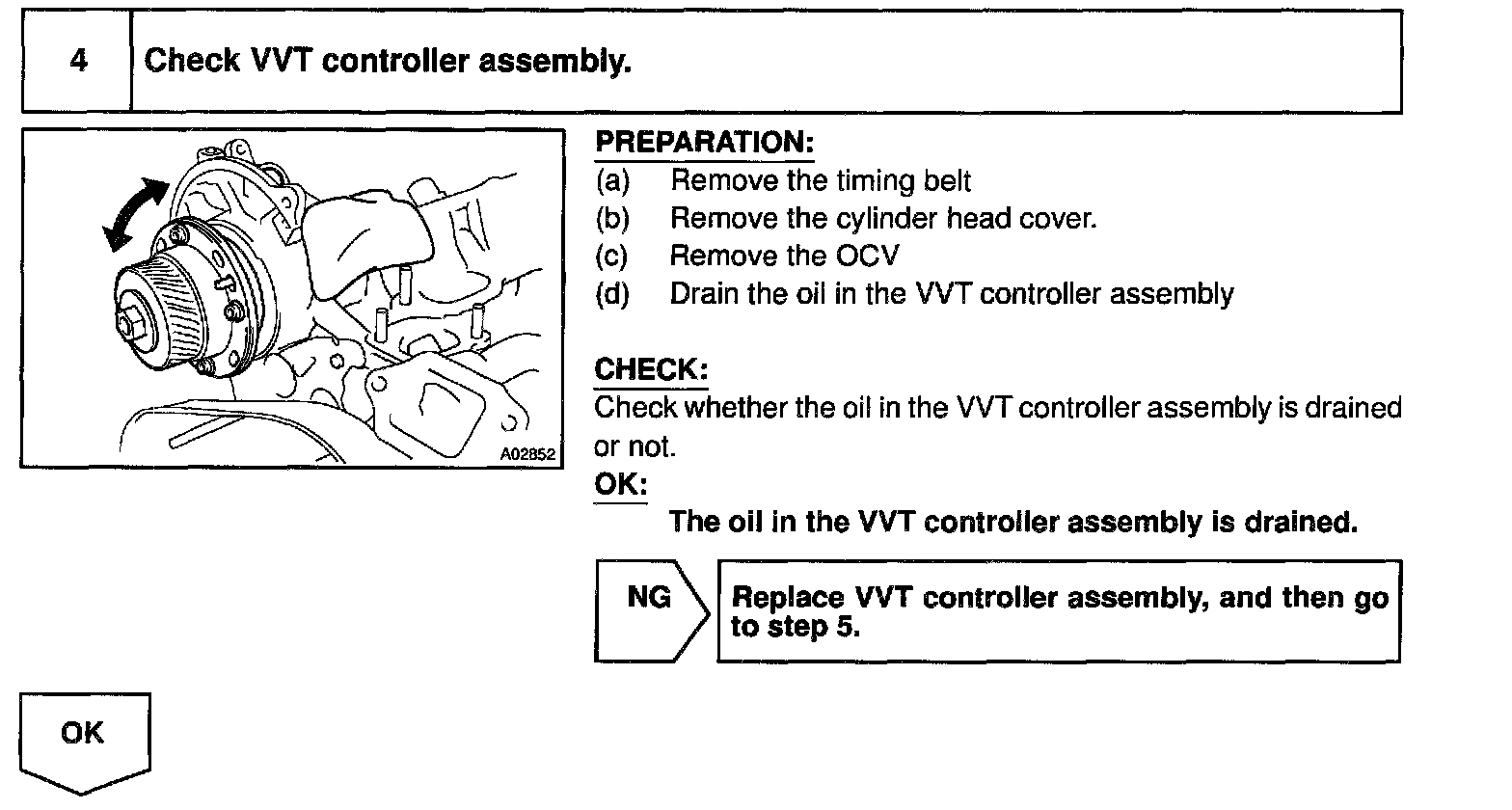

Step 4:

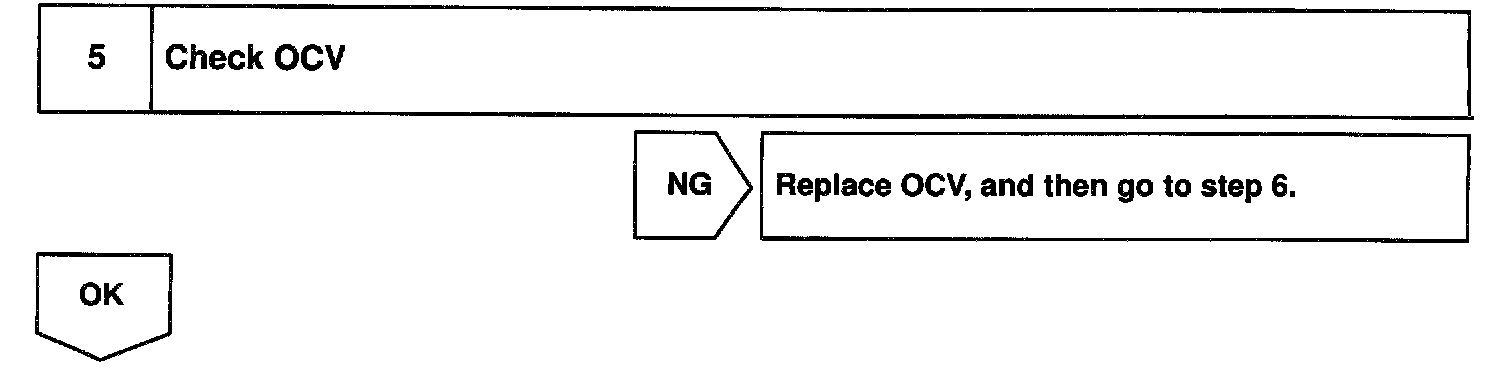

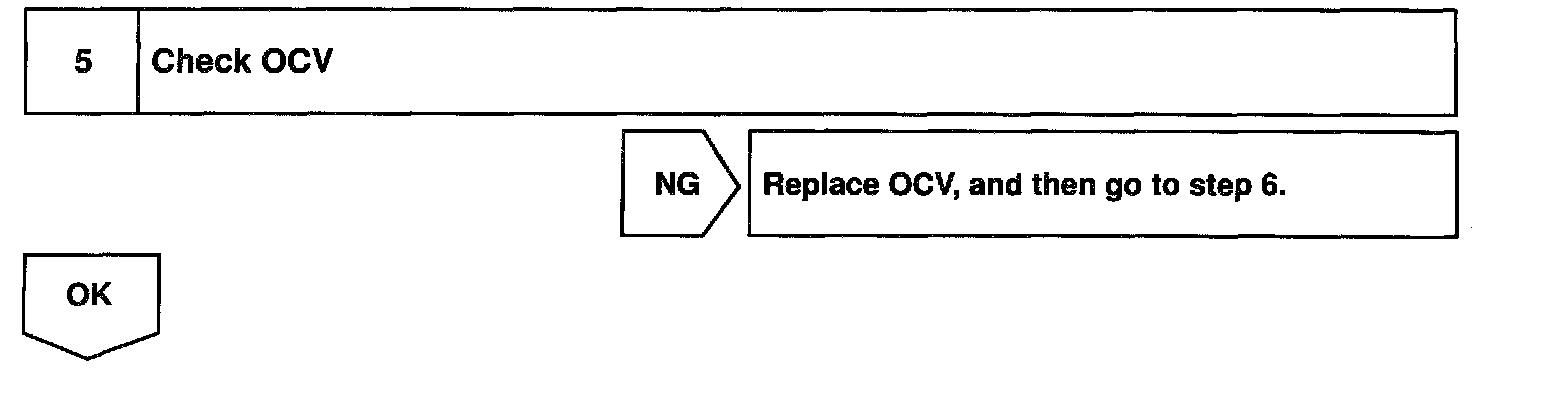

Step 5:

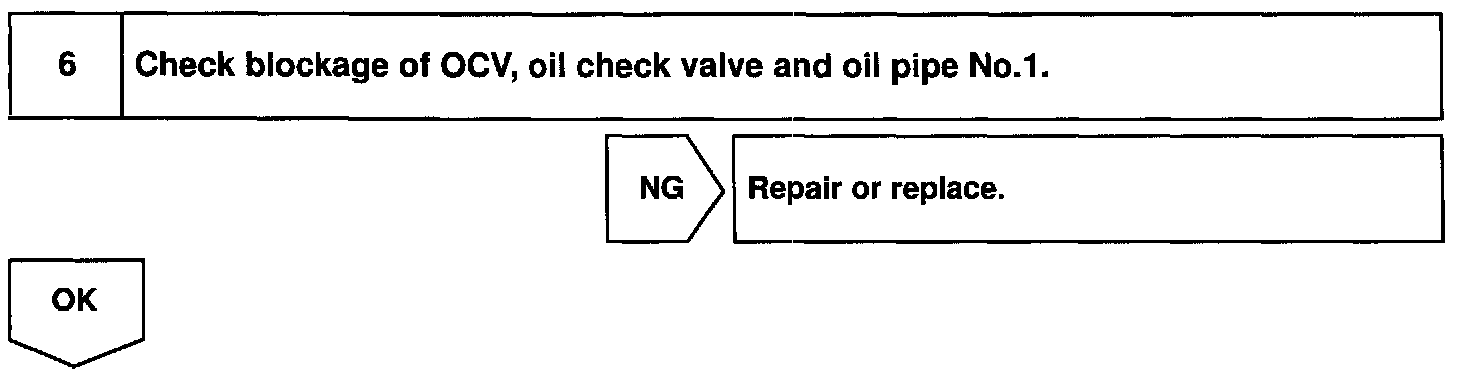

Step 6:

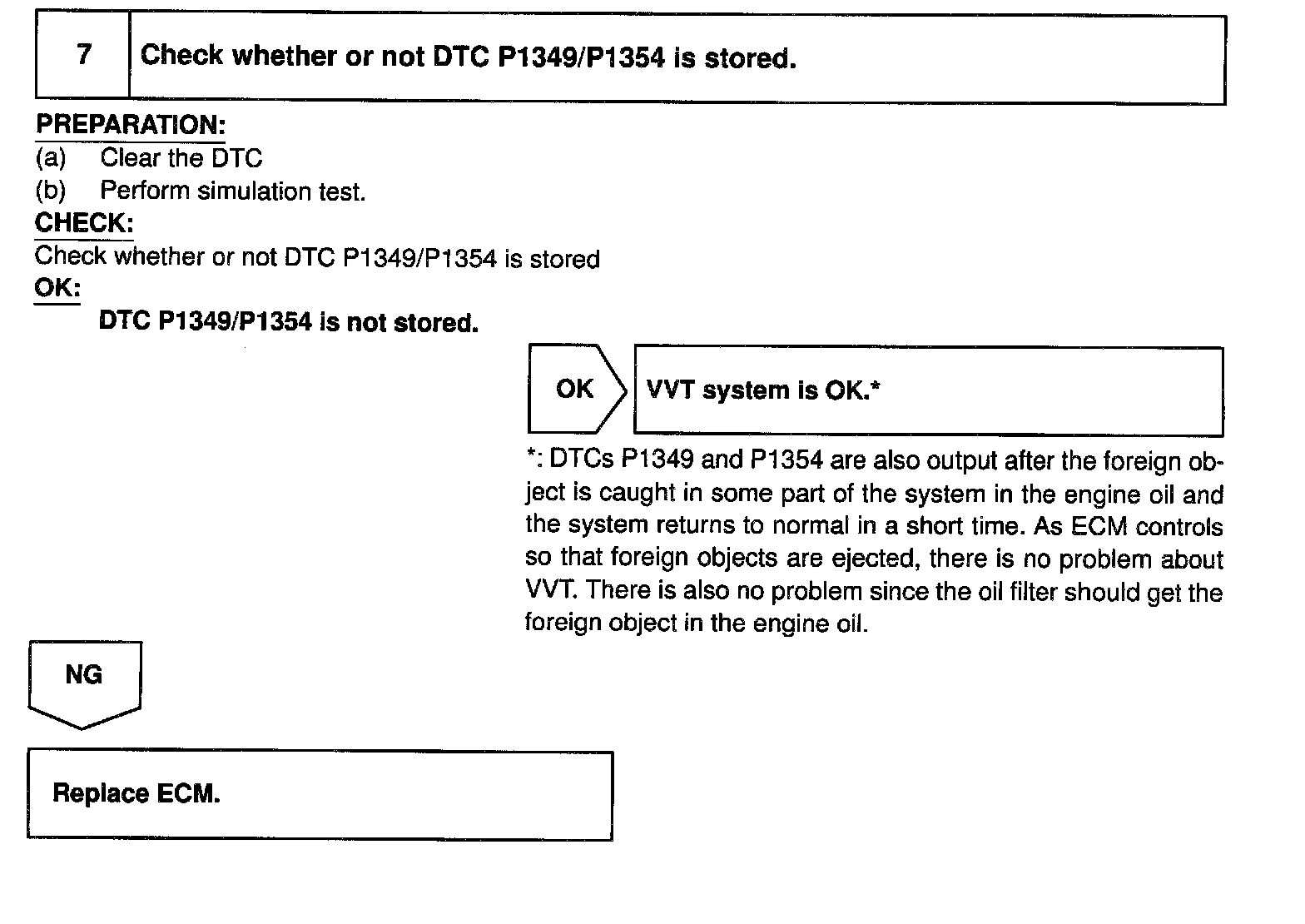

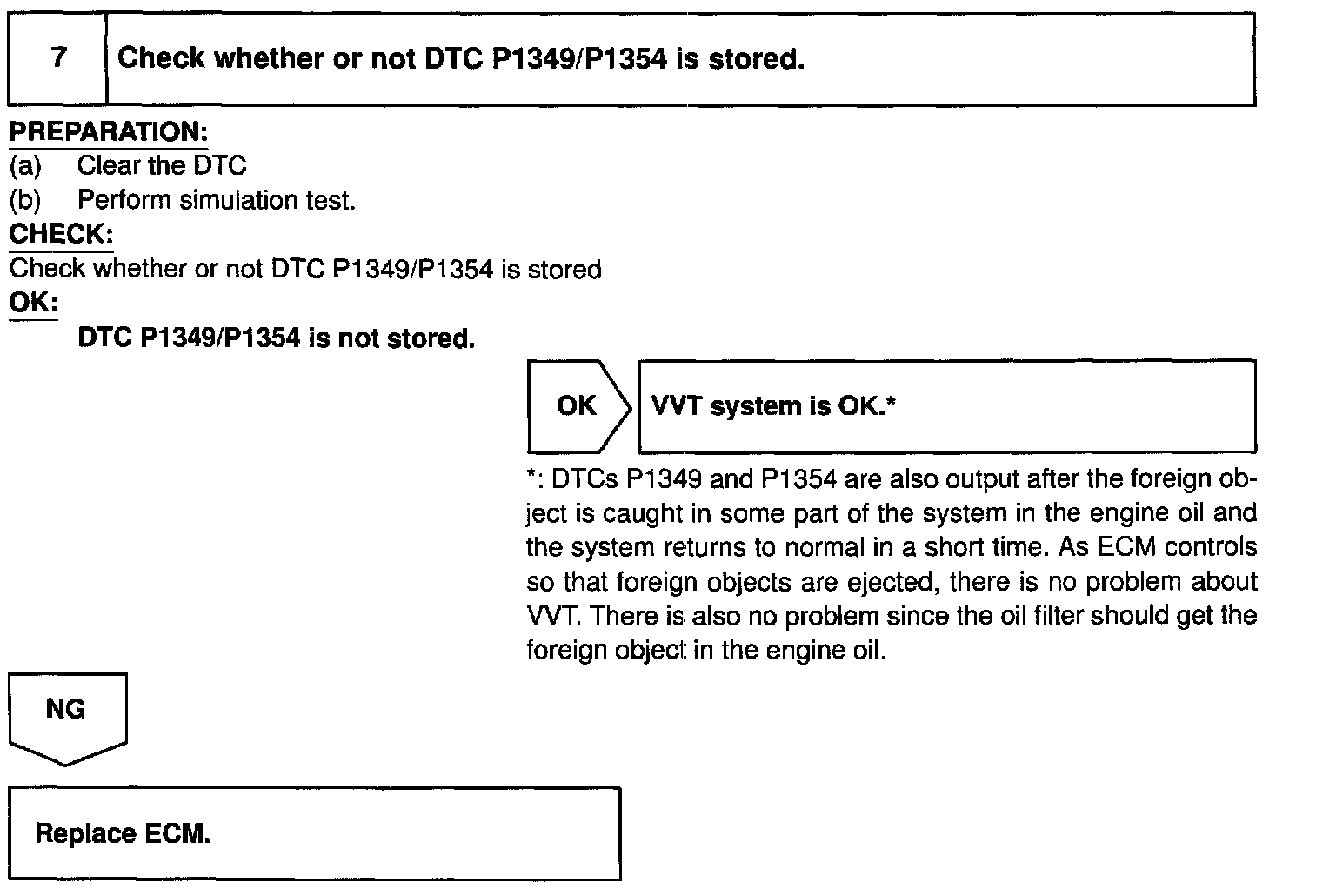

Step 7:

LEXUS hand-held tester:

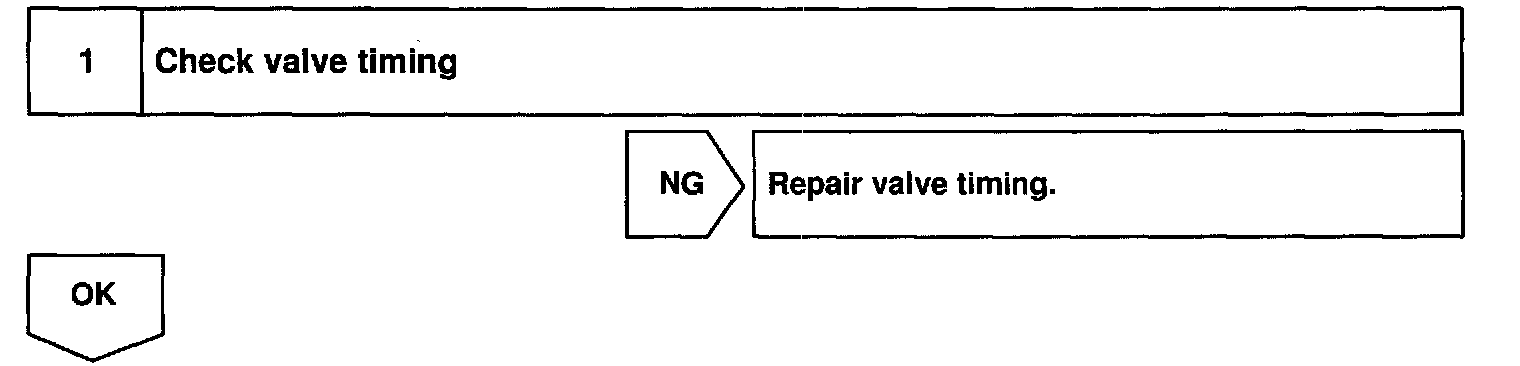

Step 1:

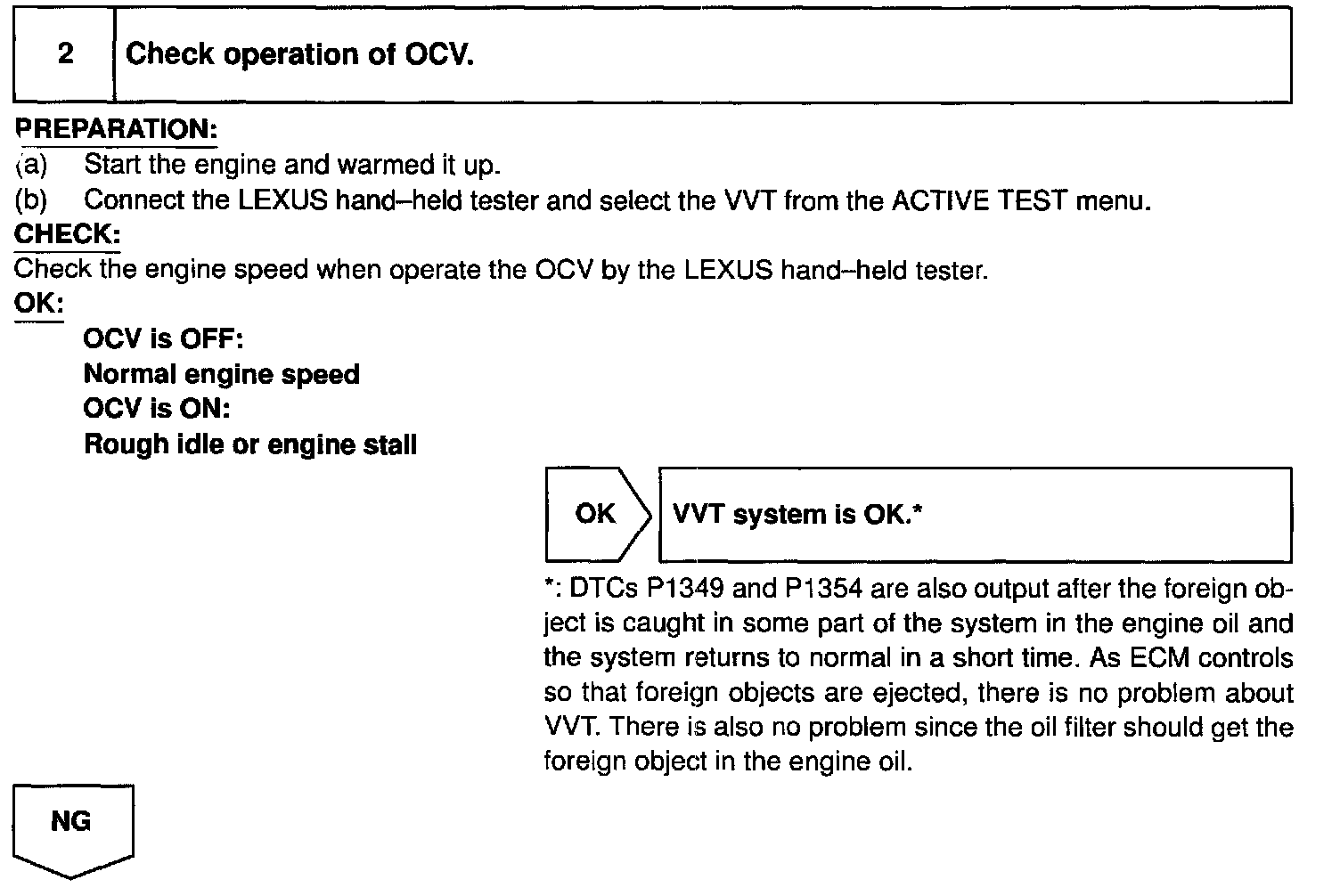

Step 2:

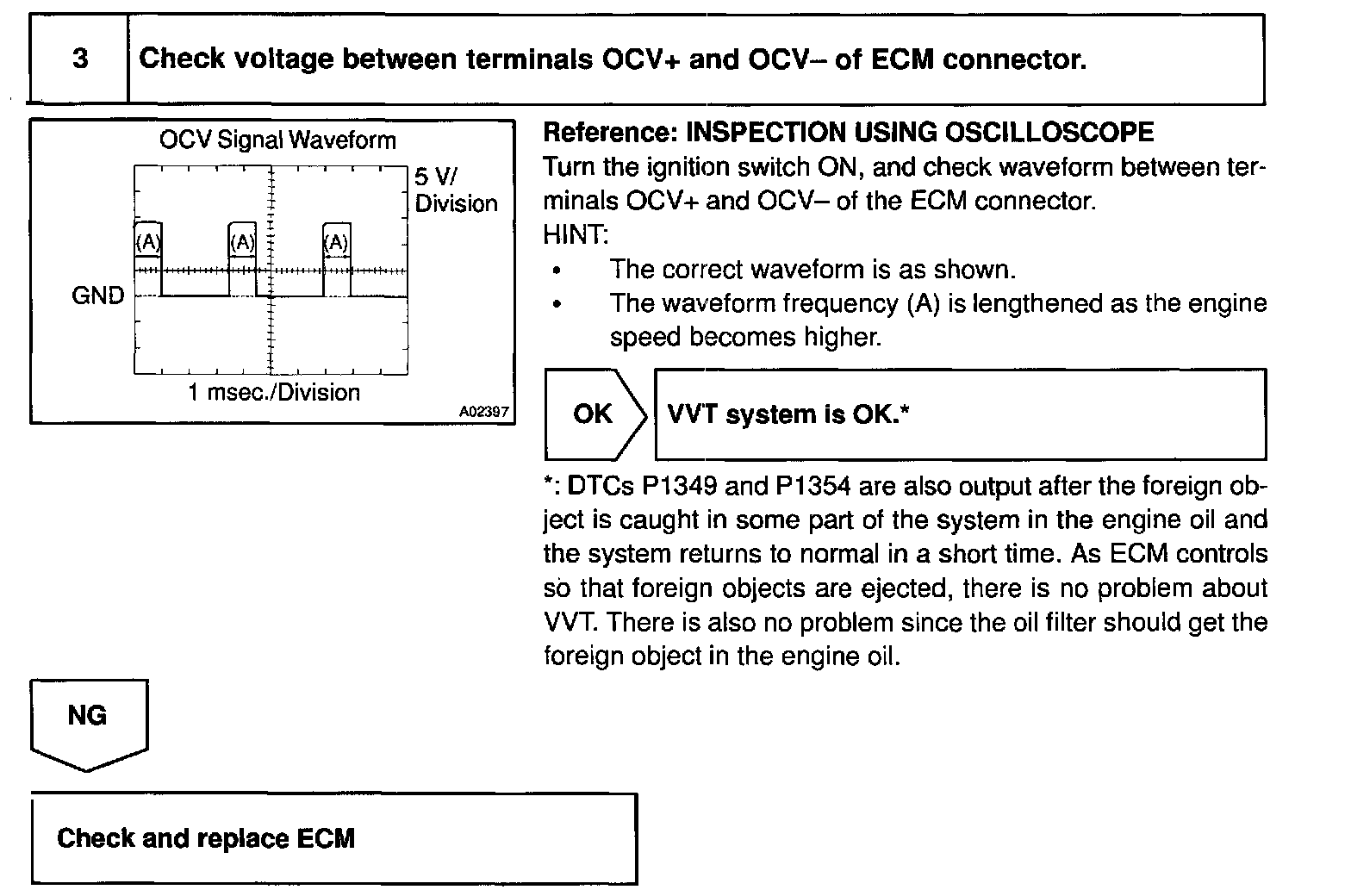

Step 3:

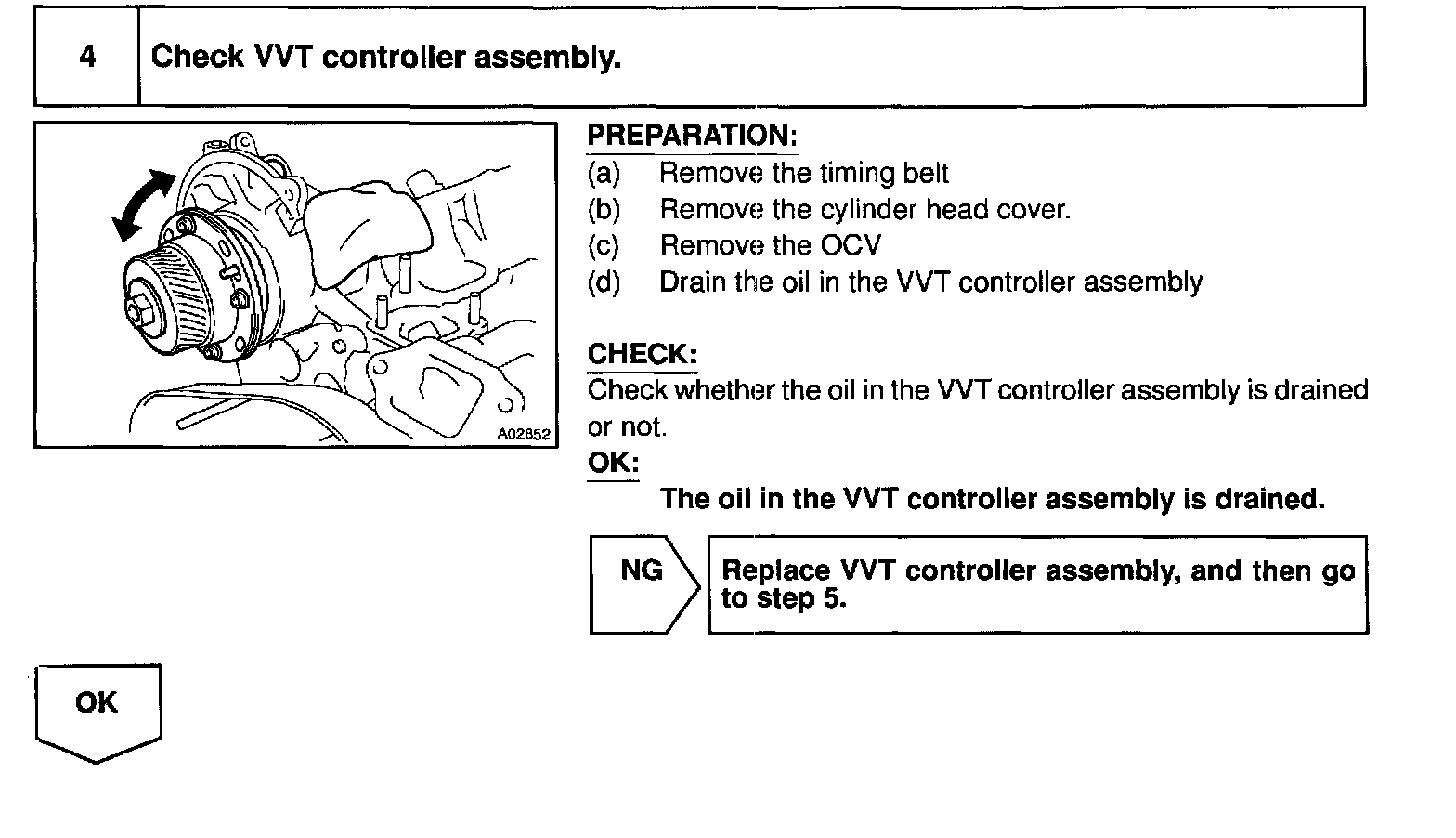

Step 4:

Step 5:

Step 6:

Step 7:

OBD II Scan tool (excluding LEXUS hand-held tester):
