P1345

CIRCUIT DESCRIPTION

VVT sensor (VVL or VVR signal) consist of a signal plate and pickup coil.

The VVL or VVR signal plate has 1 tooth on its outer circumference and is mounted on the intake camshafts. When the camshafts rotate, the protrusion on the signal plate and the air gap on the pickup coil change, causing fluctuations in the magnetic field and generating an electromotive force in the pickup coil.

The actual camshaft angle is detected by the VVT sensor and it provides feedback to the ECM to control the intake valve timing in response to during condition.




DETECTING CONDITIONS




WIRING DIAGRAM

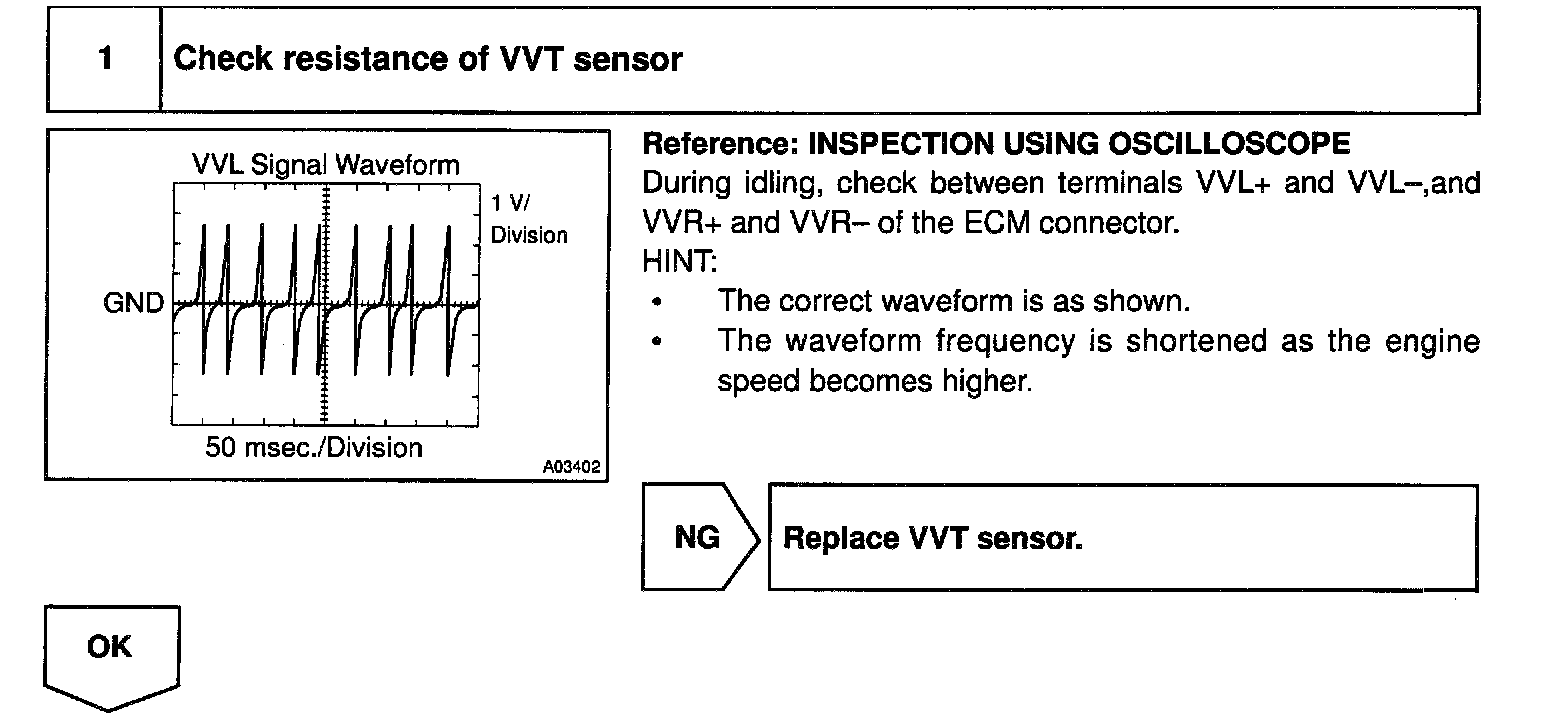

Step 1:

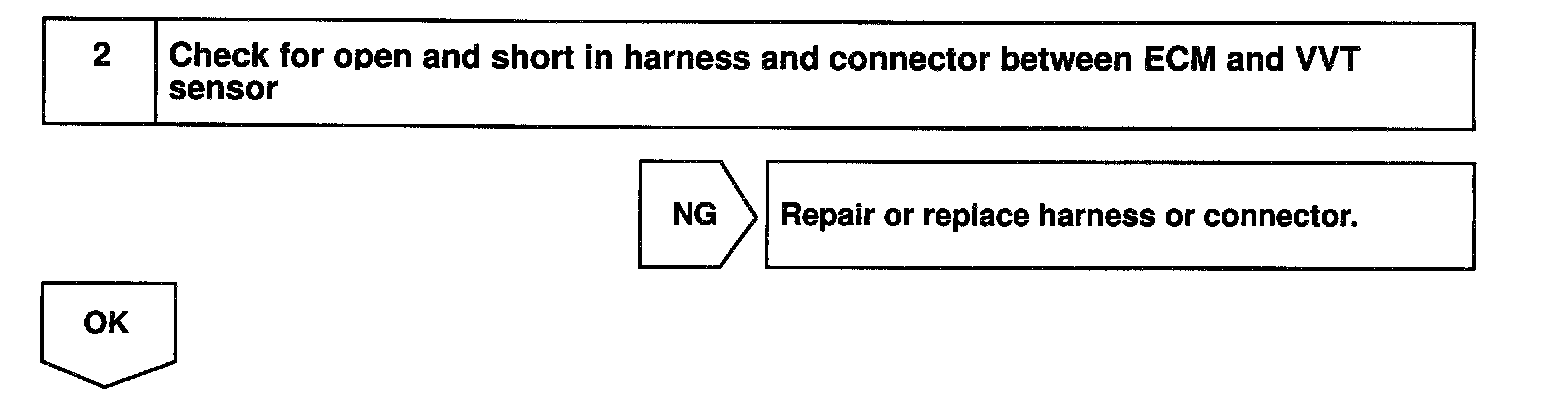

Step 2:

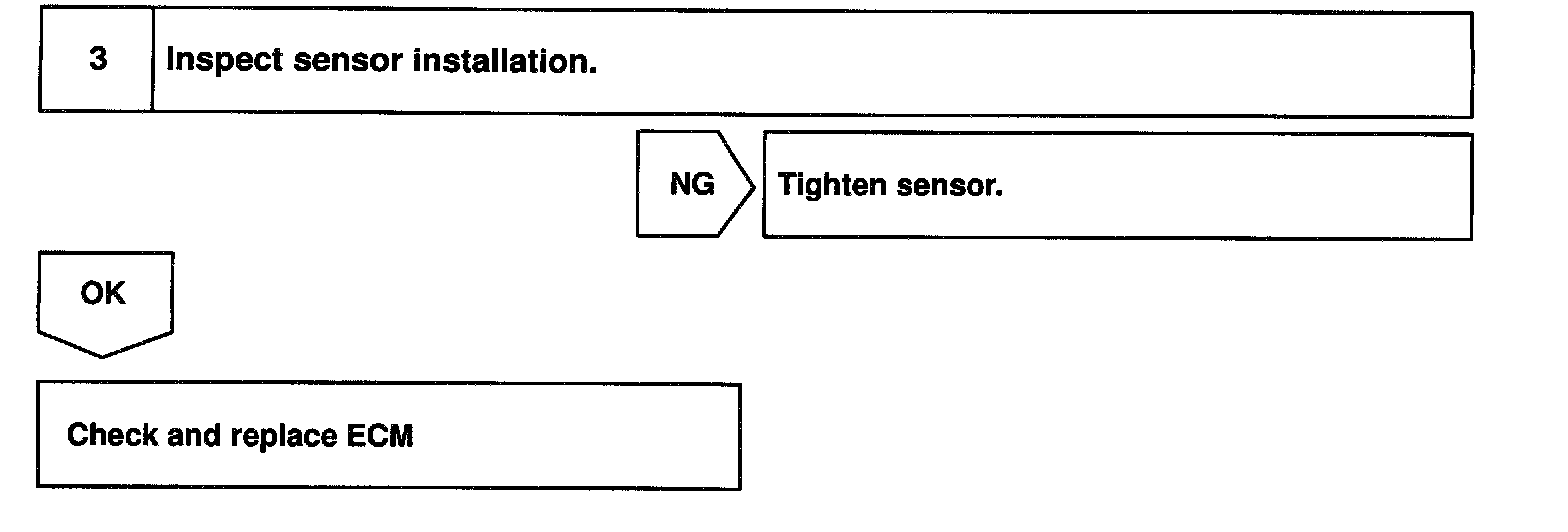

Step 3:




INSPECTION PROCEDURE

HINT:
- If DTC P1345 is displayed, check left bank VVT sensor.
- If DTC P1350 is displayed, check right bank VVT sensor.
- Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected, when troubleshooting it is useful for determining whether the vehicle was running or stopped, the engine warmed up or not, the air-fuel ratio lean or rich, etc. at the time of the malfunction.
