Troubleshooting

CIRCUIT DESCRIPTION

Shift solenoid valve No.4 is controlled by ECM and it switches ON and OFF of the O/D direct switch.

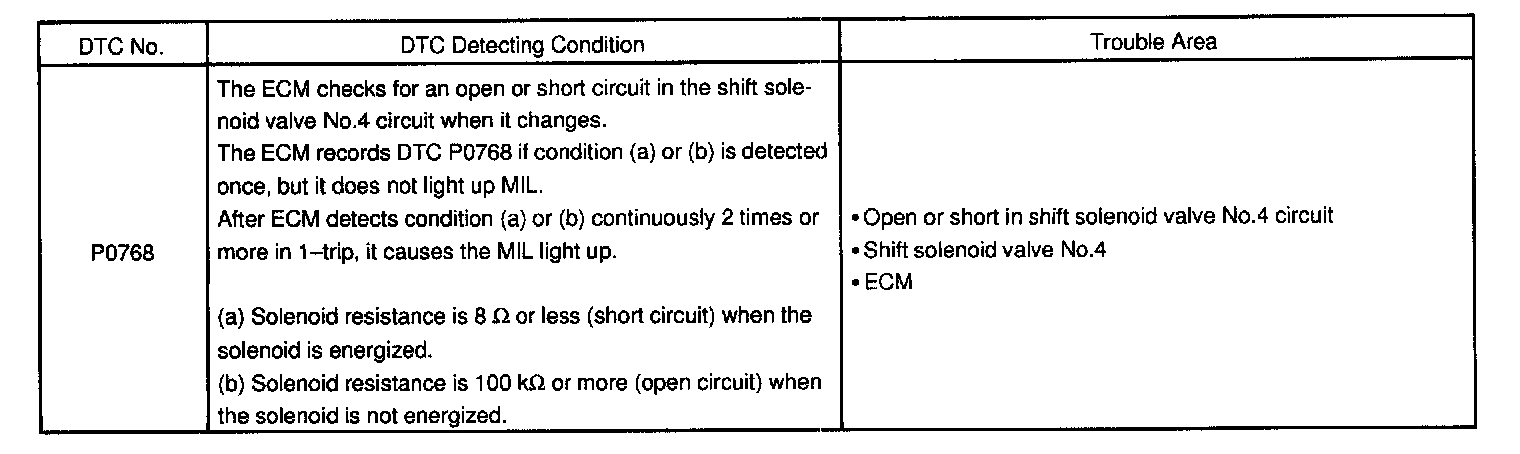

DETECTING CONDITIONS




WIRING DIAGRAM

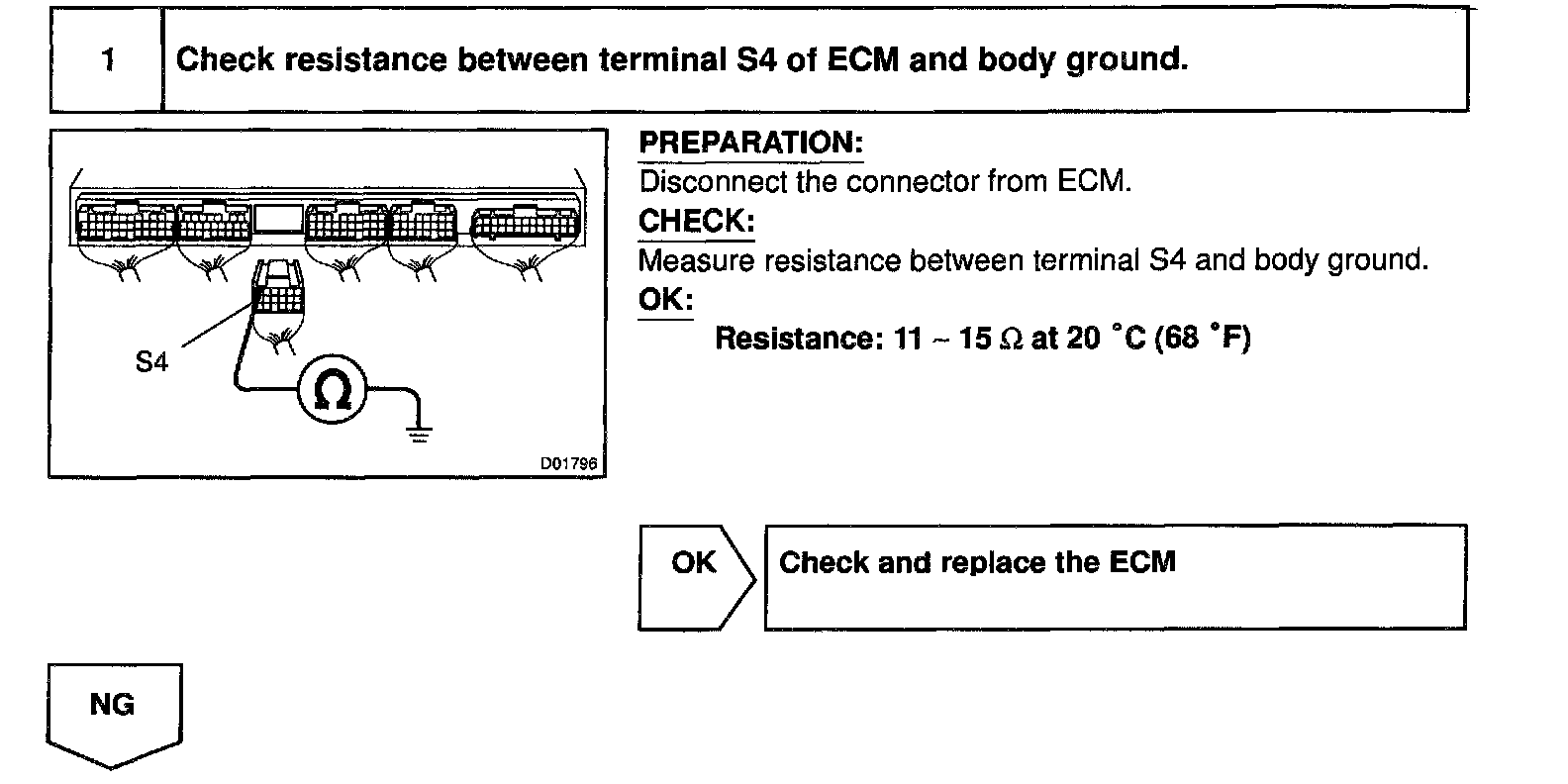

Step 1:

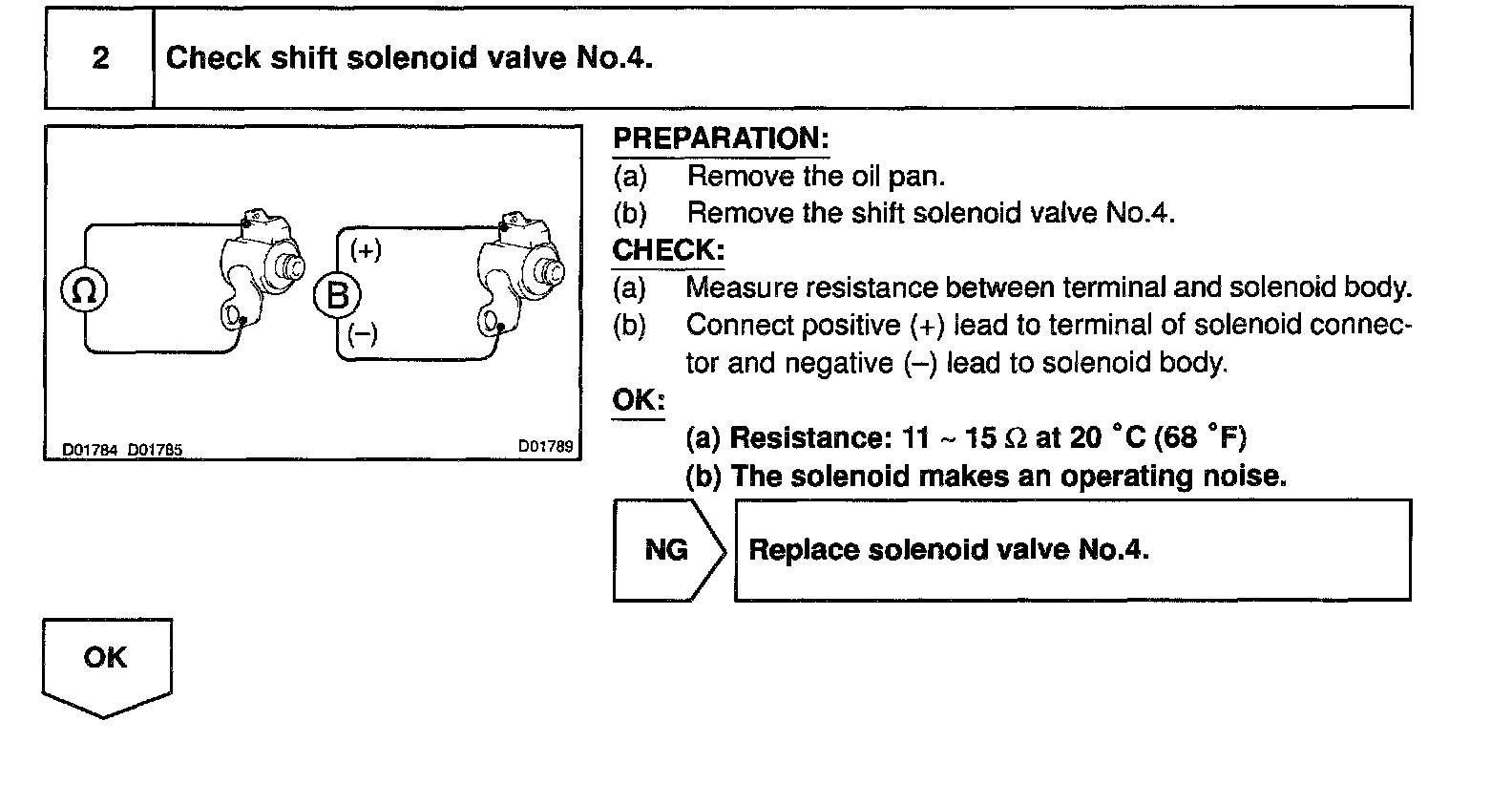

Step 2:

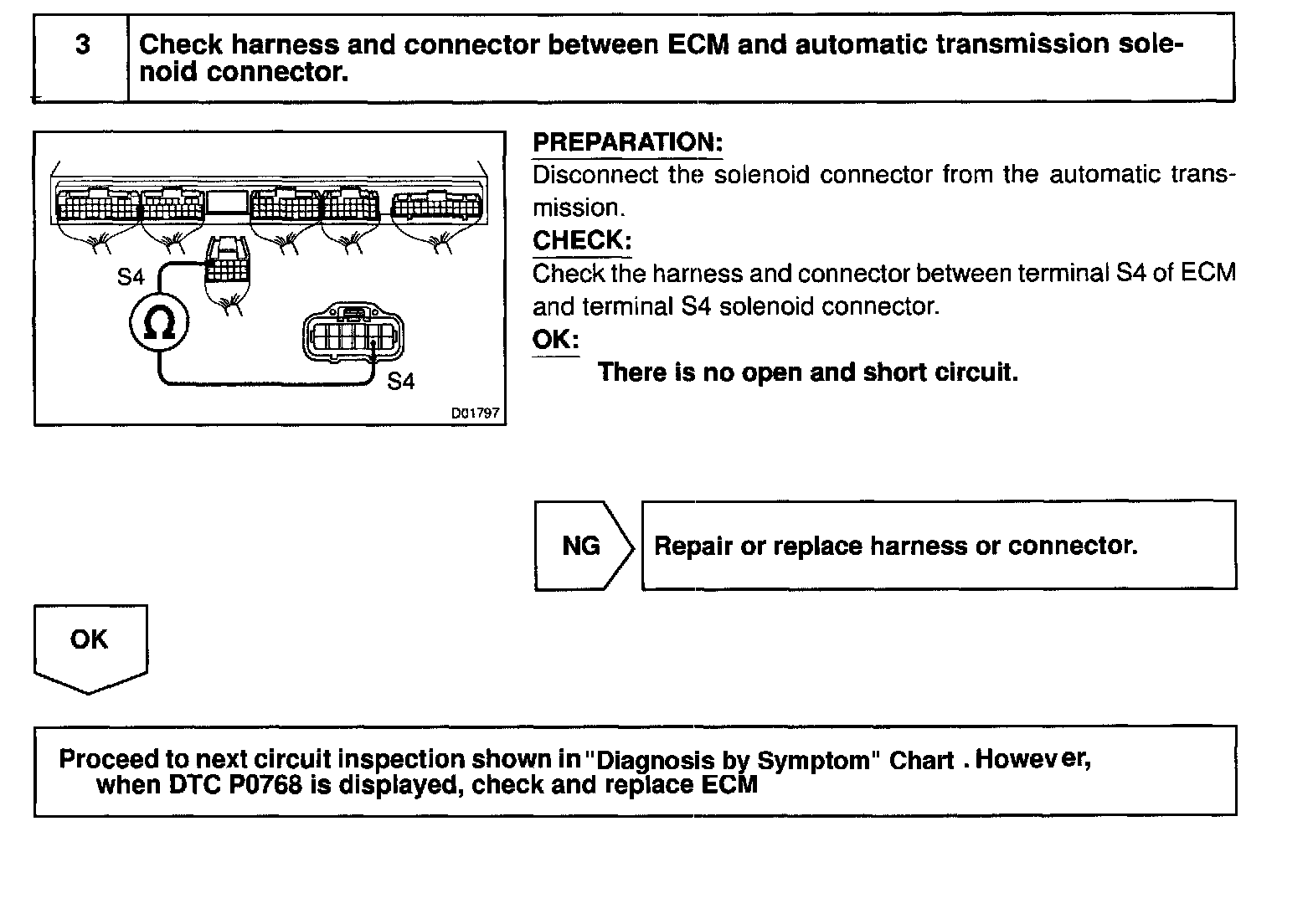

Step 3:

INSPECTION PROCEDURE
