P0760

SYSTEM DESCRIPTION

The ECM uses signals from the vehicle speed sensor and input/turbine speed sensor to detect the actual gear position (1st, 2nd, 3rd, 4th or 5th gear). The ECM then compares the actual gear with the shift schedule in the ECM memory to detect mechanical trouble of the shift solenoid valves, valve body and automatic transmission assembly.

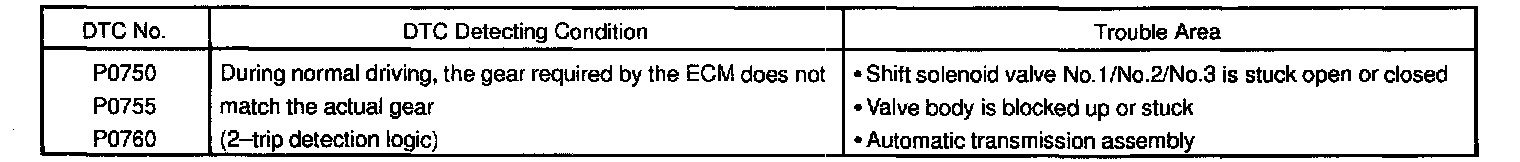

DETECTING CONDITIONS

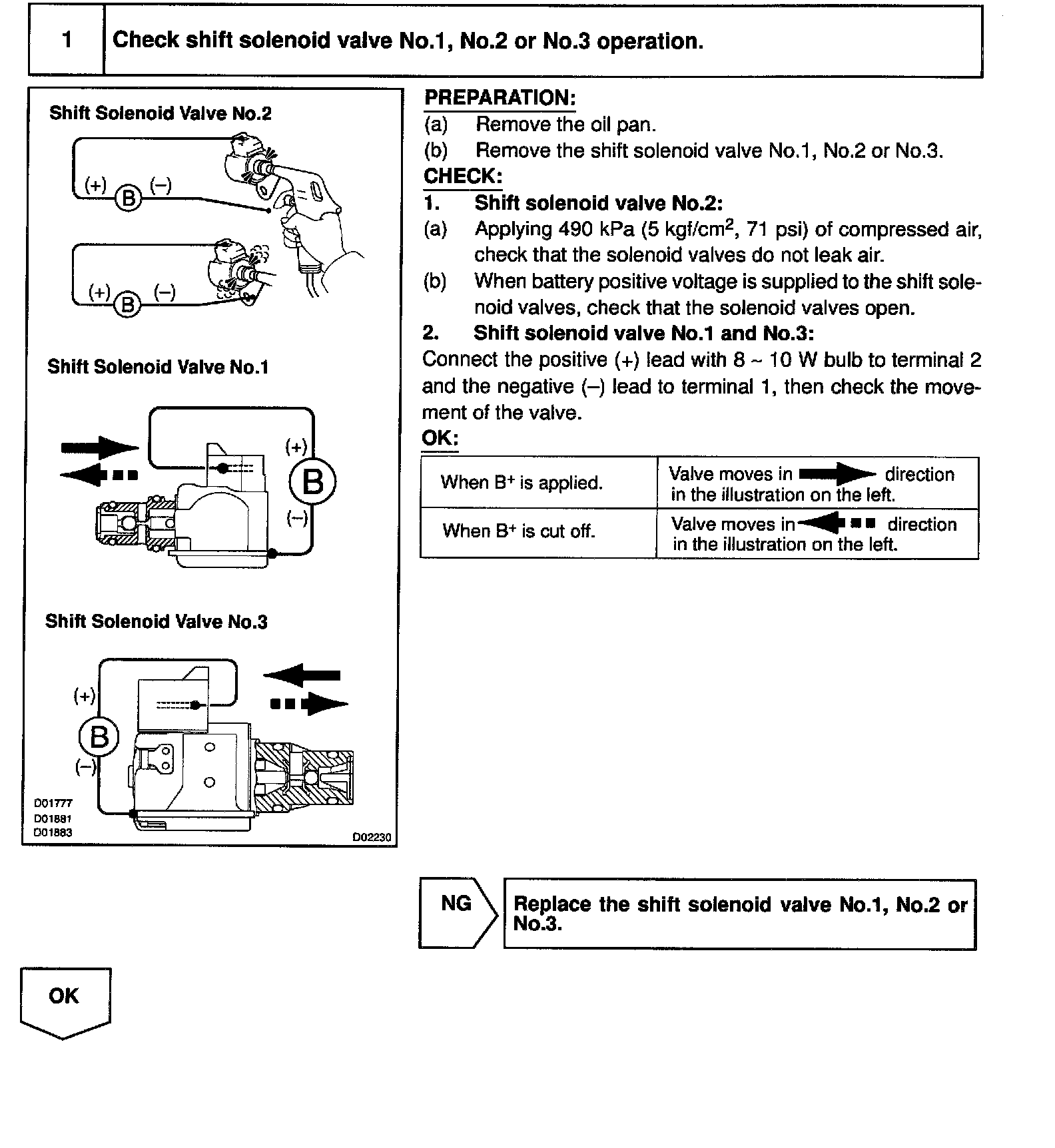

Check the shift solenoid valve No.1 when DTC P0750 is output, check shift solenoid valve No.2 when DTC P0755 is output and check the shift solenoid valve No.3 when DTC P0760 is output.

Step 1:

Step 2:

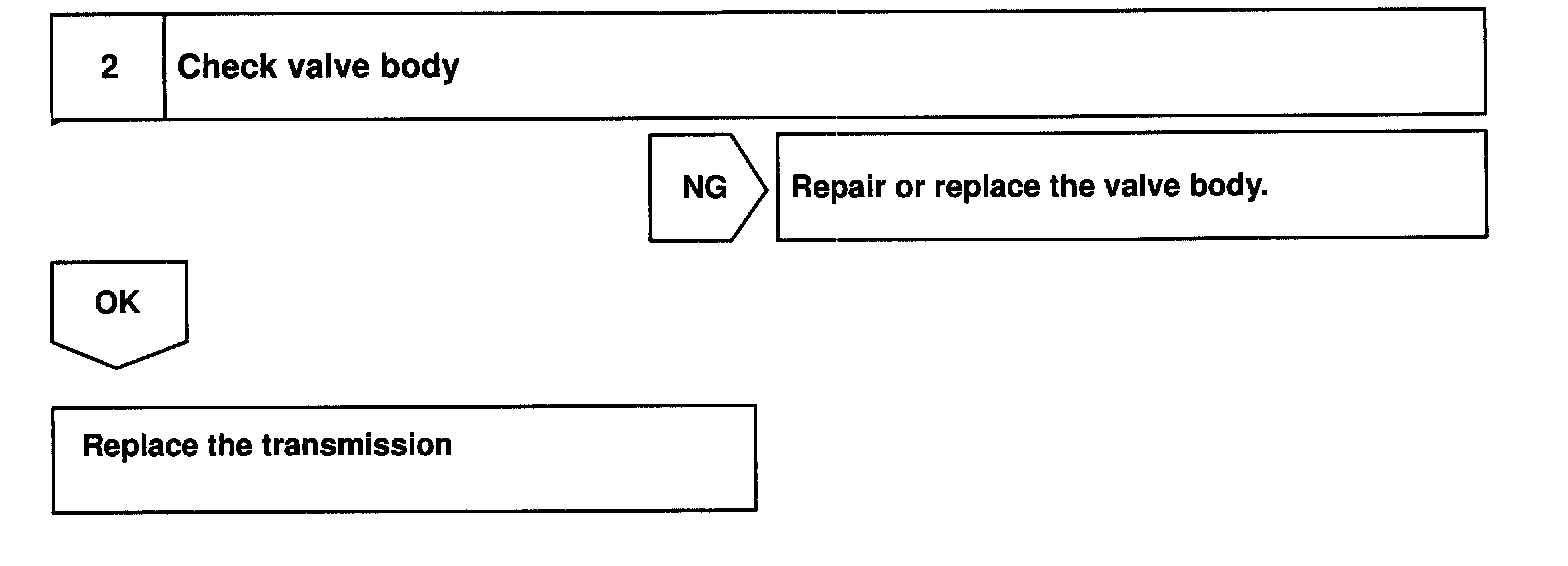

INSPECTION PROCEDURE
