Troubleshooting

CIRCUIT DESCRIPTION

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.




DETECTING CONDITIONS




WIRING DIAGRAM

Step 1:

Step 2:

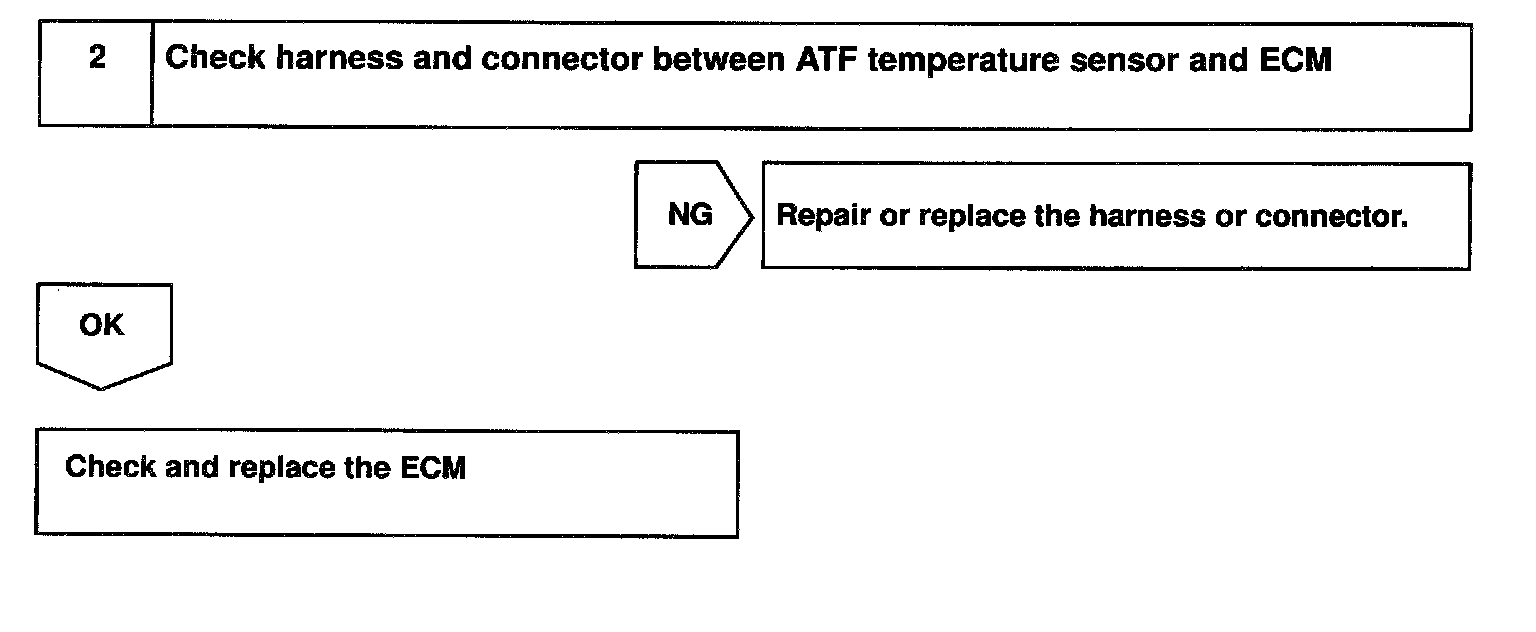

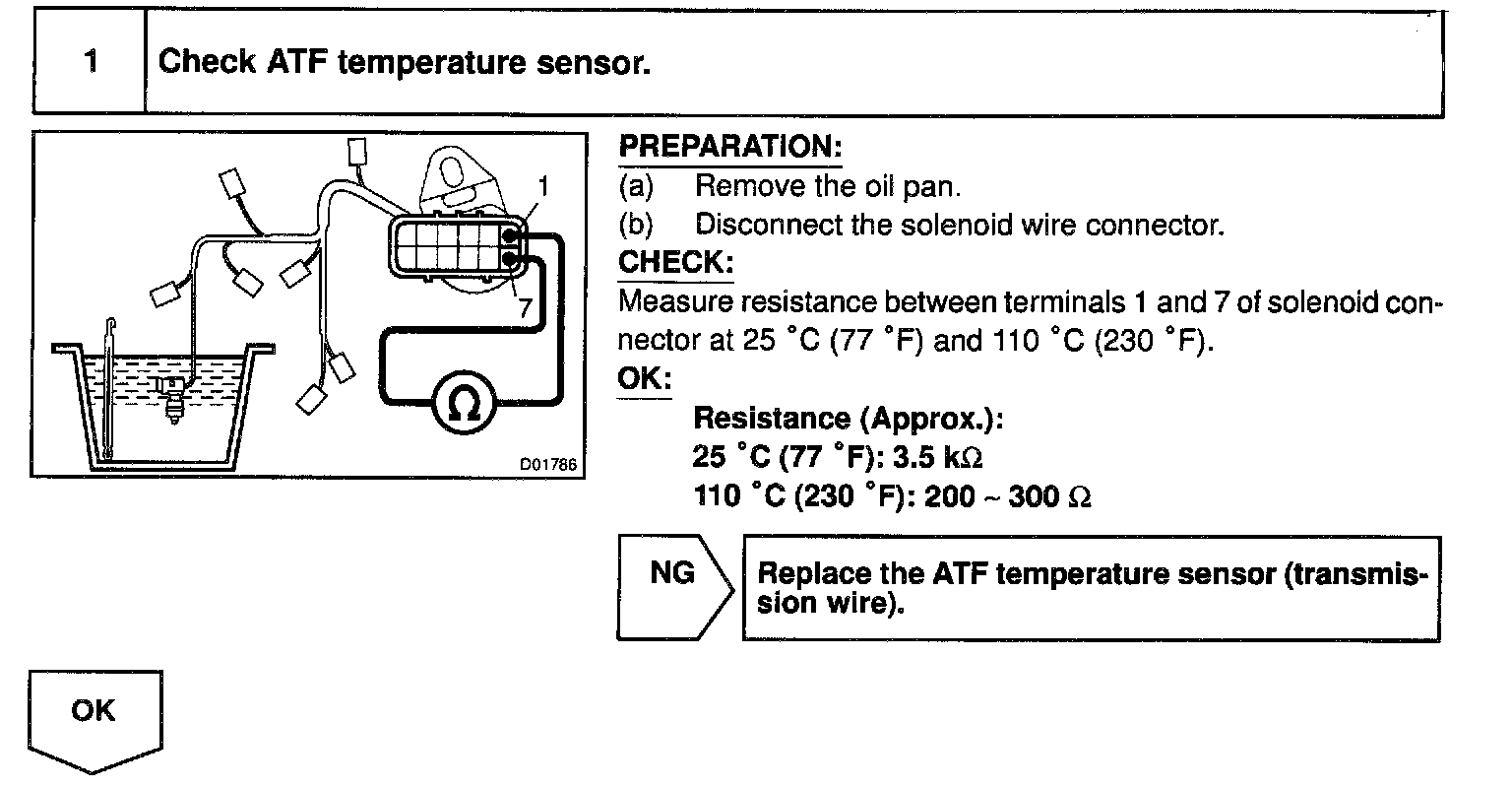

INSPECTION PROCEDURE
