DTC 23

CIRCUIT DESCRIPTION

This pressure switch sends the appropriate signals to the A/C control assembly when the A/C refrigerant pressure drops too low or rises too high When the A/C control assembly receives these signals, if outputs signals via the ECM to switch off the compressor relay and turns the magnetic clutch off.

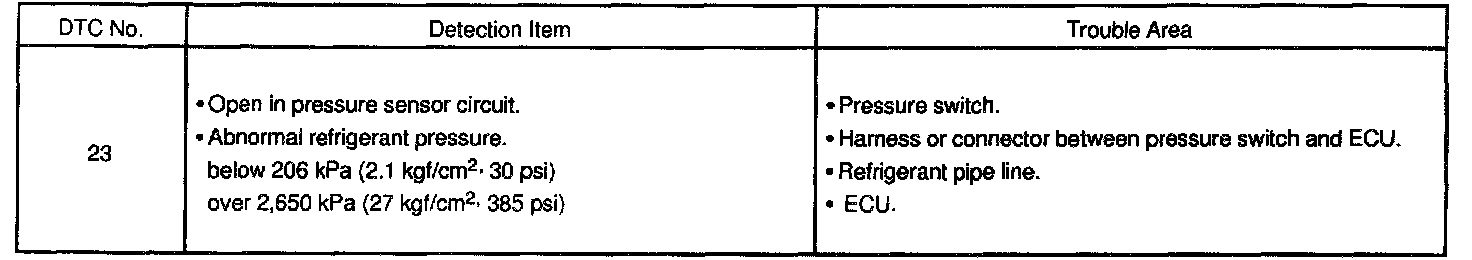

DETECTING CONDITIONS




WIRING DIAGRAM

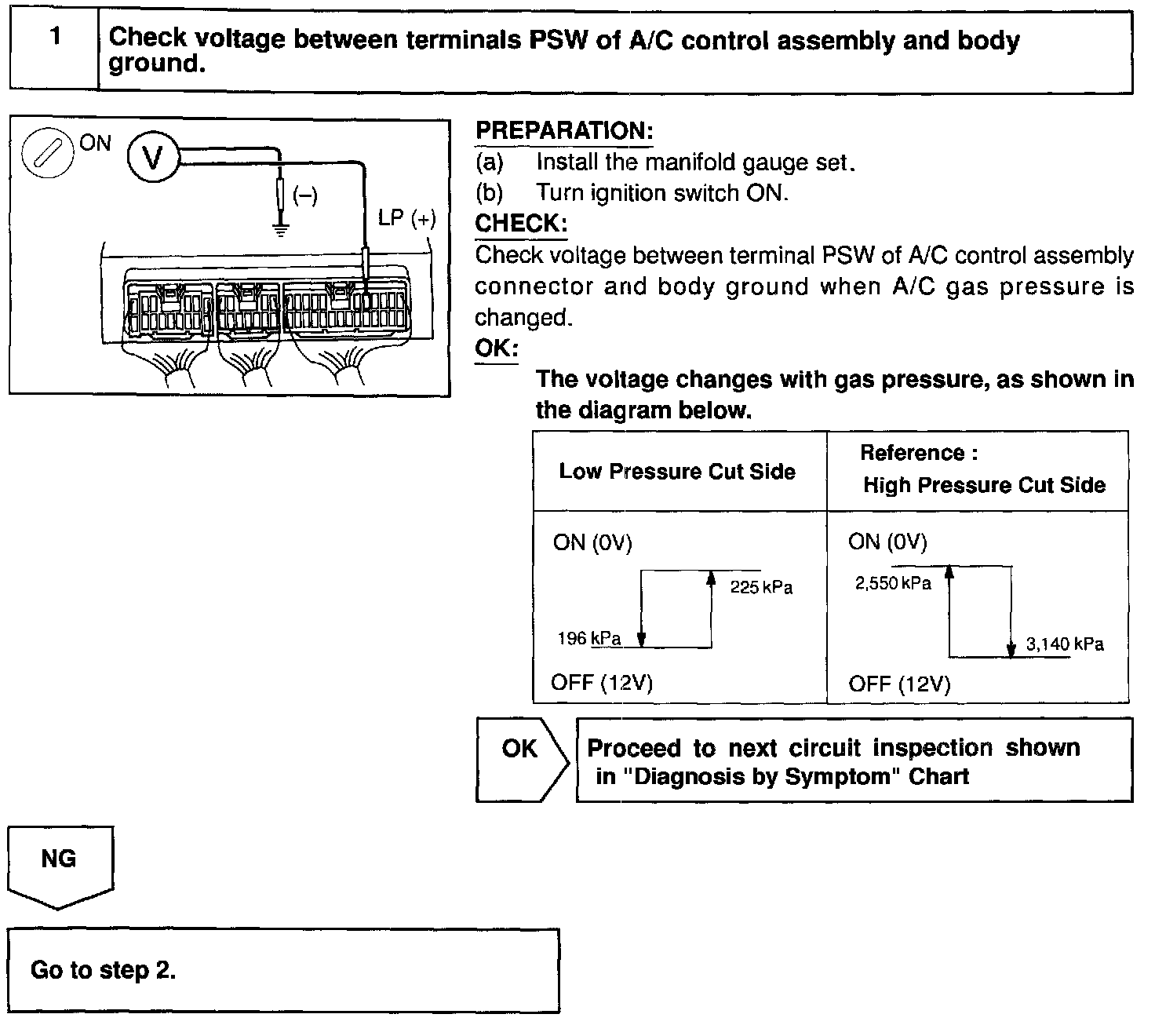

Step 1:

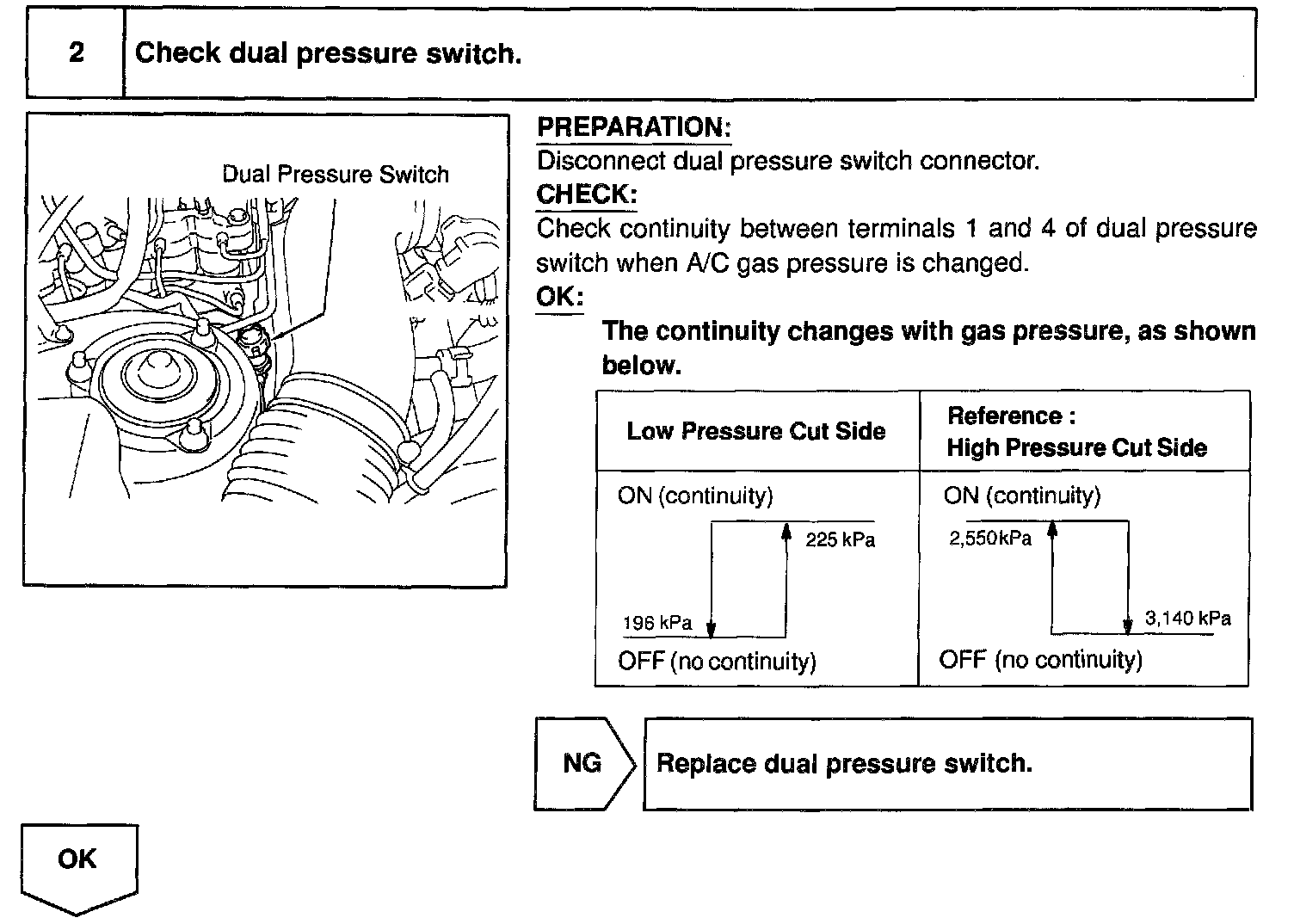

Step 2:

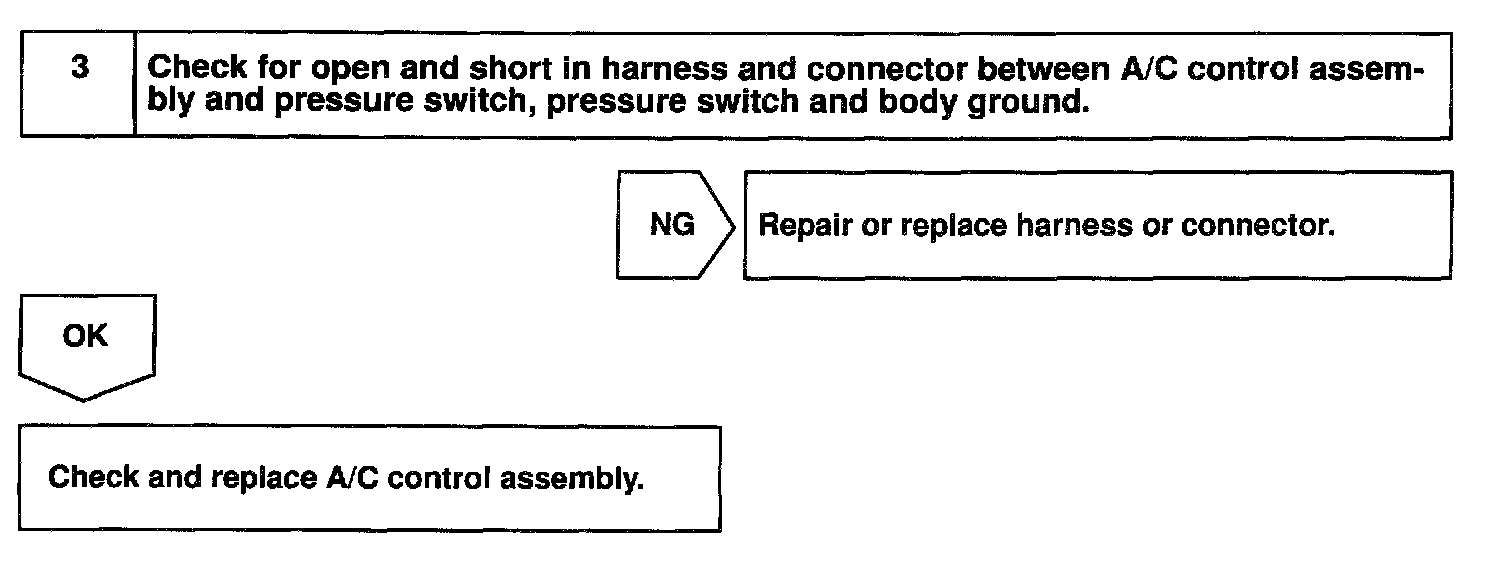

Step 3:

INSPECTION PROCEDURE
