DTC 22

CIRCUIT DESCRIPTION

This sensor sends 1 pulses per engine revolution to the A/C control assembly.

If the number ratio of the compressor speed, divided by the engine speed is smaller than a predetermined value, the A/C control assembly turns the compressor off, and the indicator flashes at about 1 second intervals.

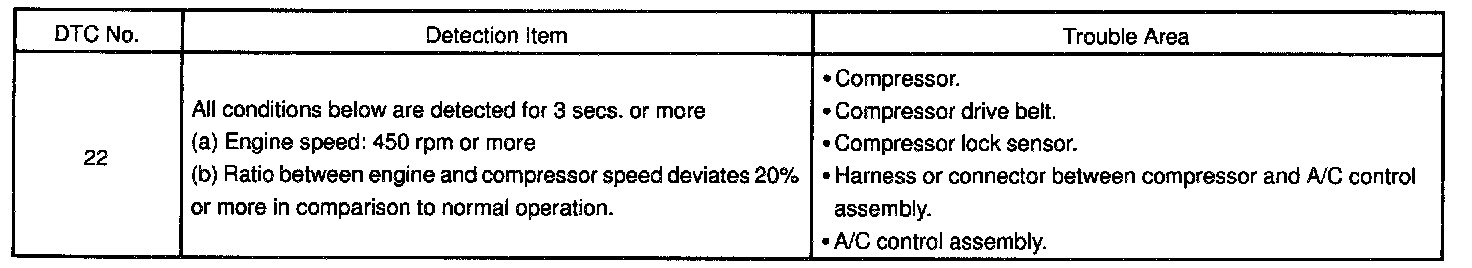

DETECTING CONDITIONS

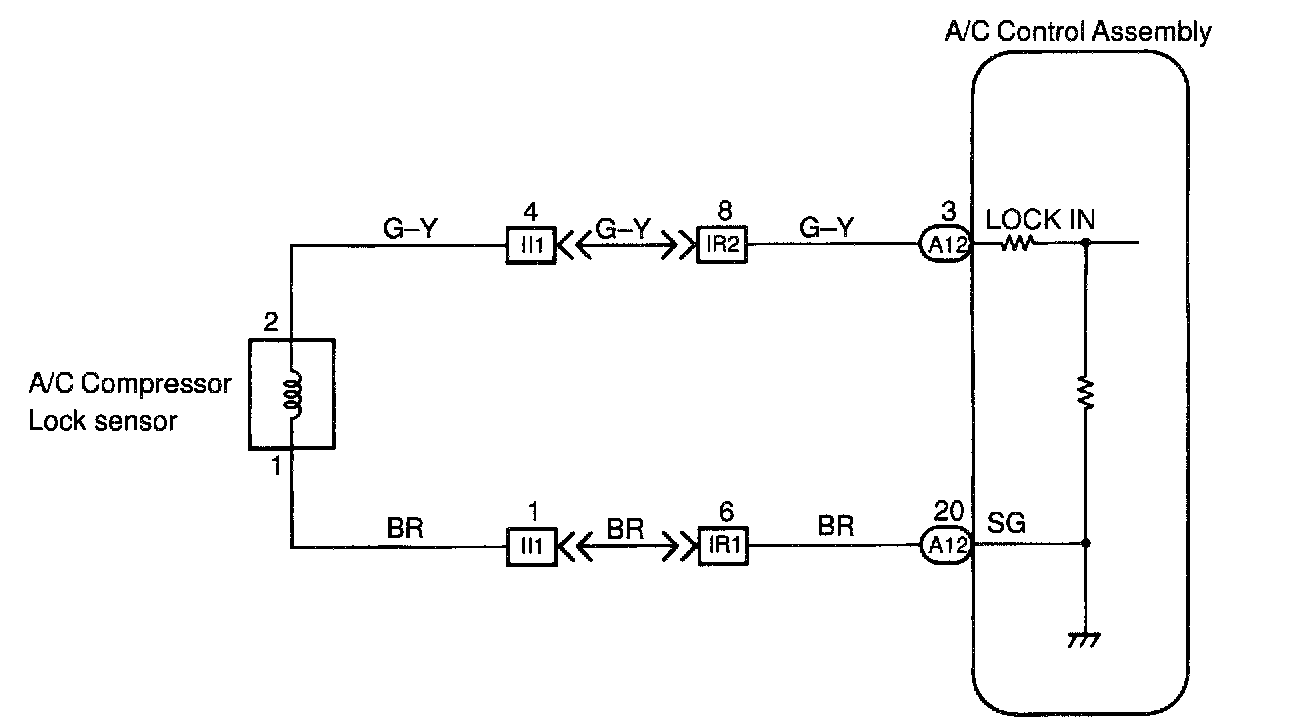

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

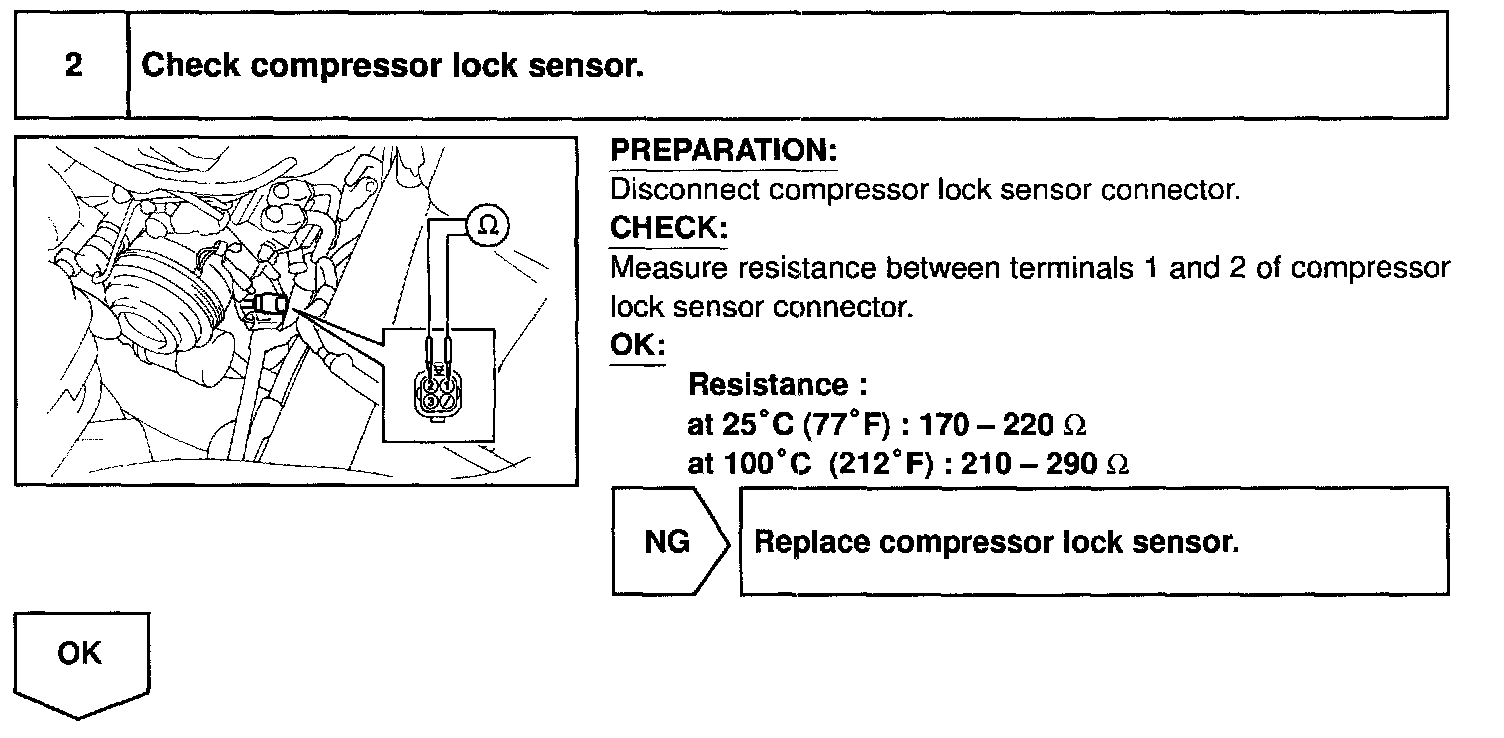

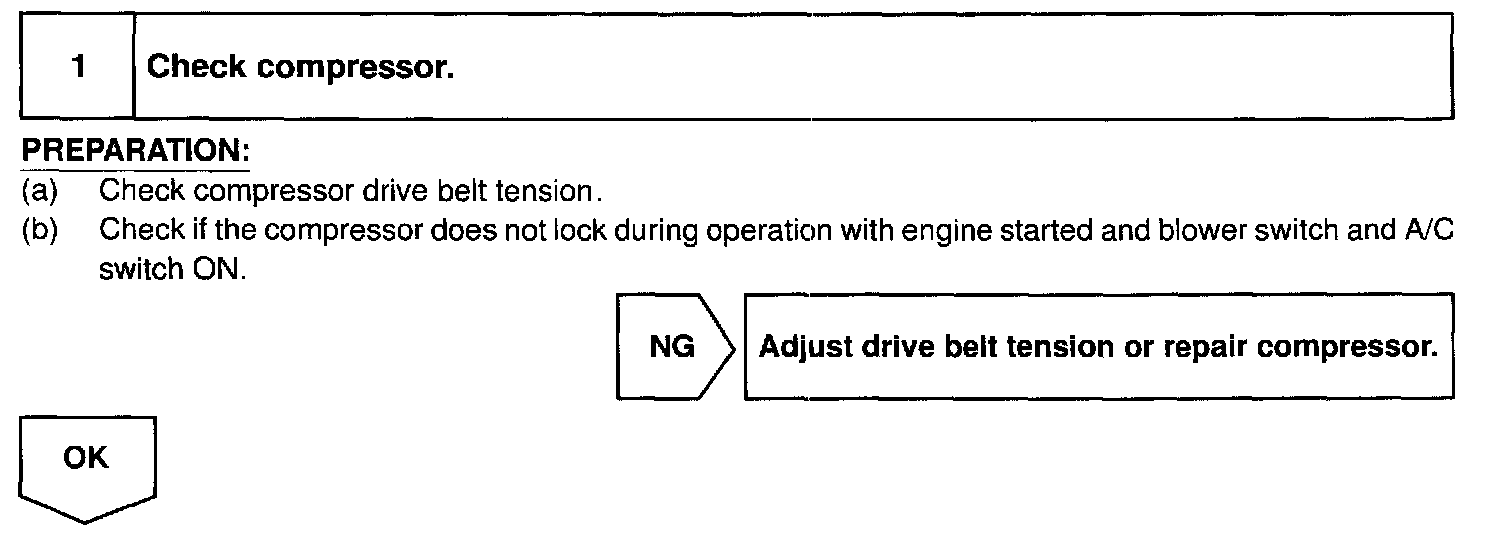

INSPECTION PROCEDURE
