Communication Malfunction No. 2

CIRCUIT DESCRIPTION

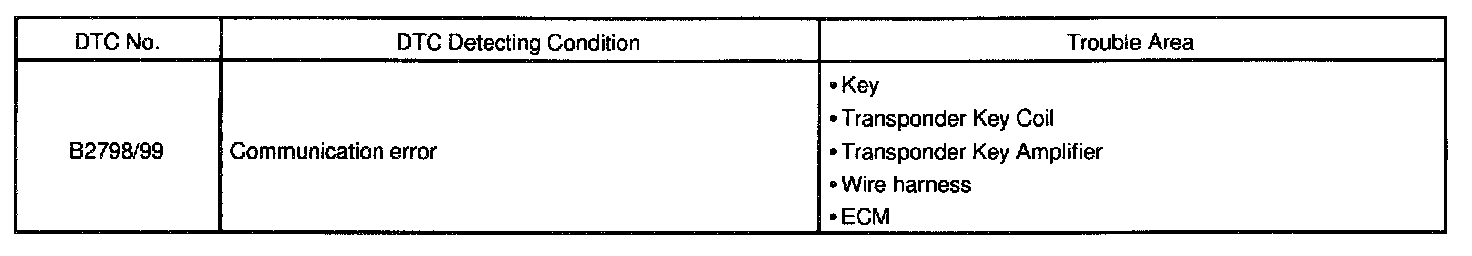

DETECTING CONDITIONS

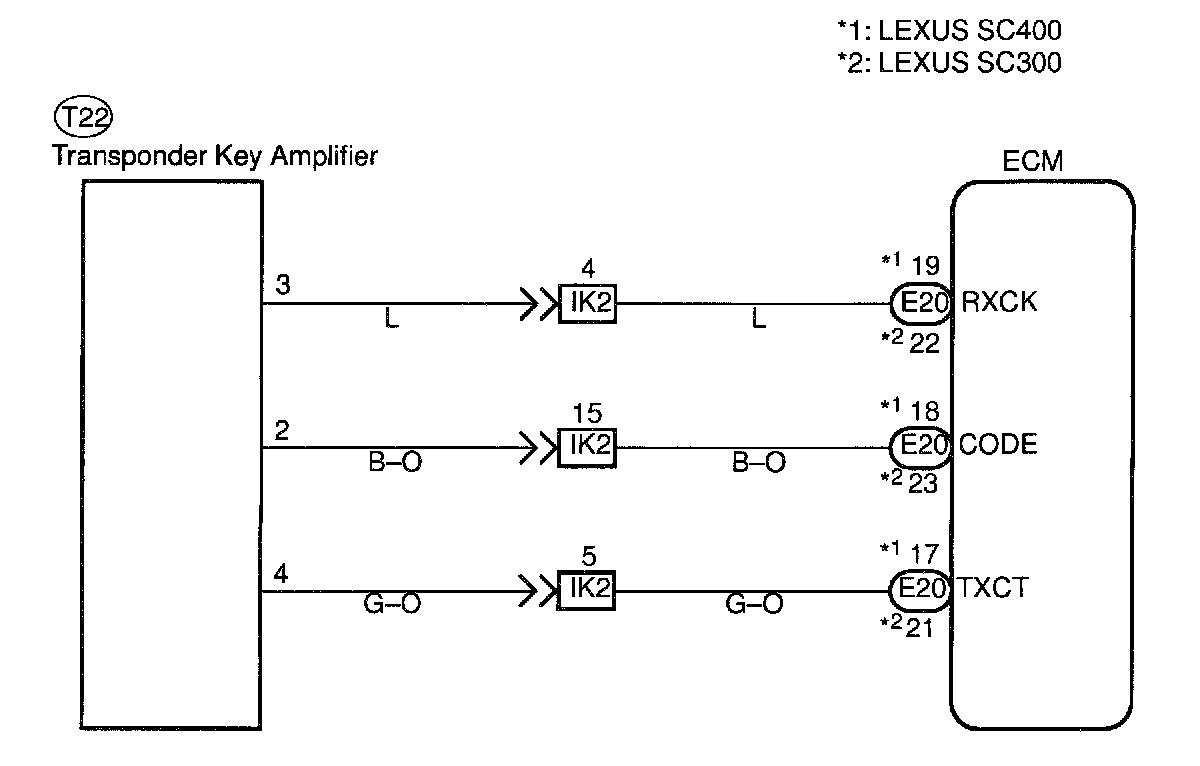

WIRING DIAGRAM

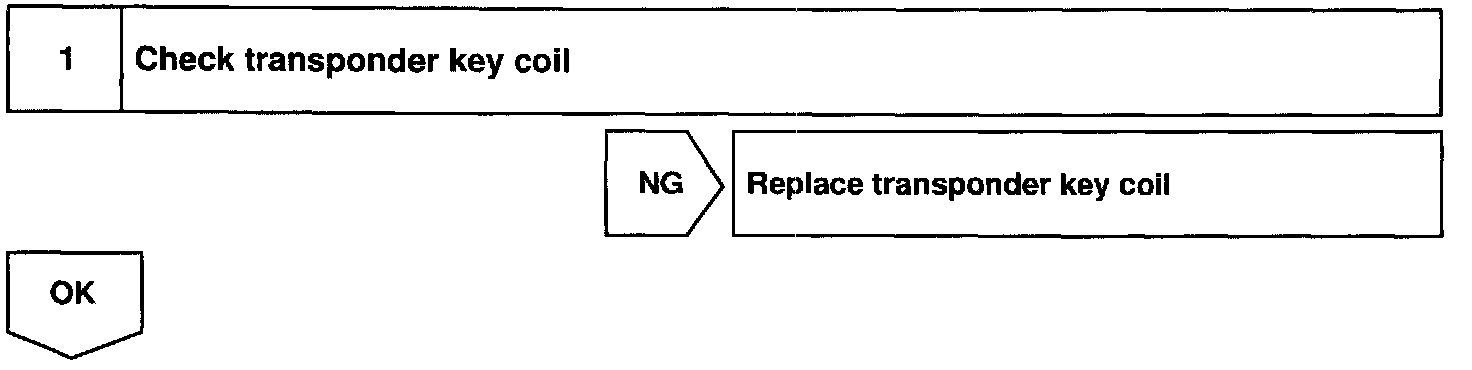

Step 1:

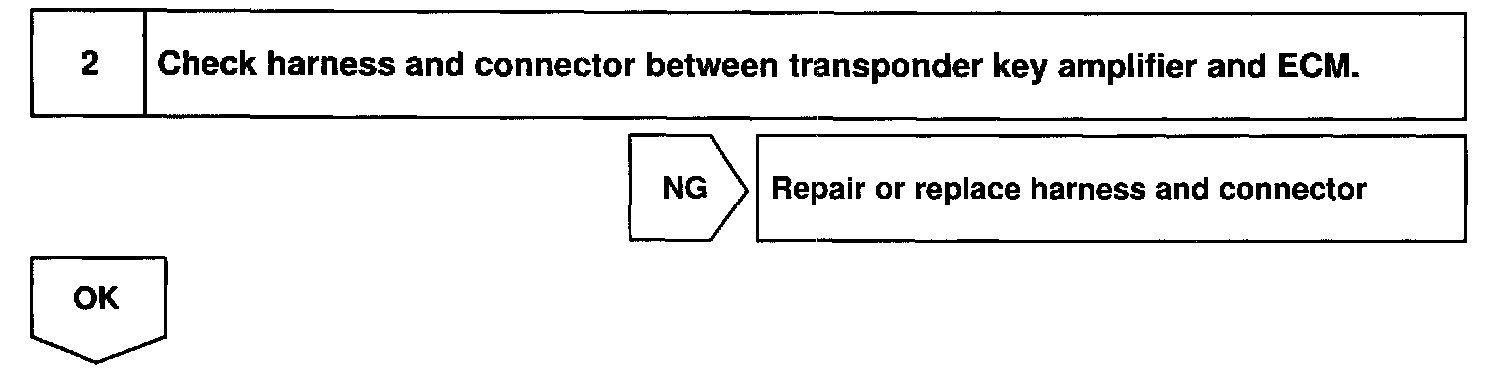

Step 2:

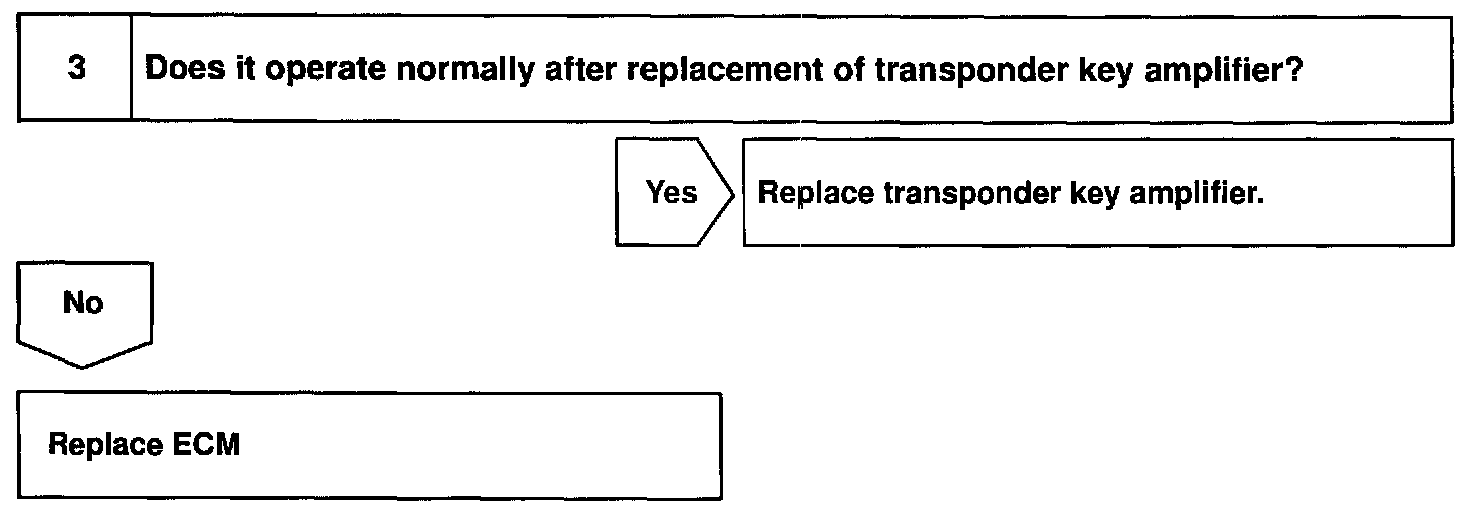

Step 3:




INSPECTION PROCEDURE
