DTC 13

The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the airbag to deploy when the airbag deployment conditions are satisfied.
For details of the function of each component. see OPERATION.

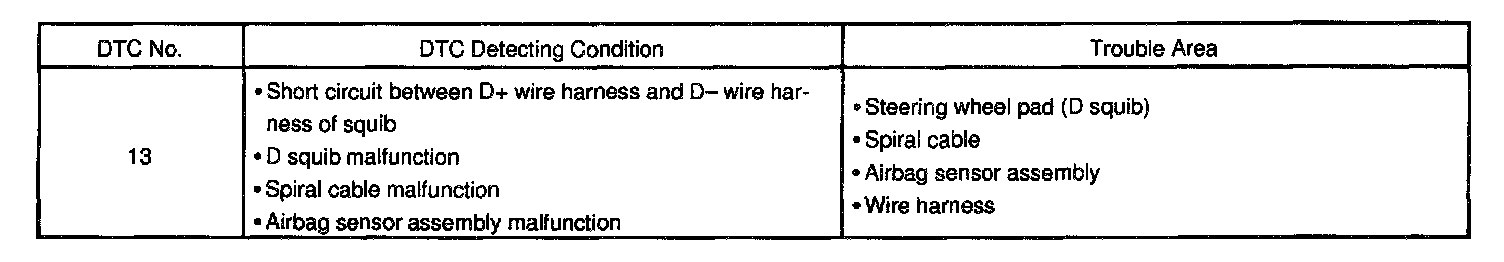

DTC 13 is recorded when a short is detected in the D squib circuit.

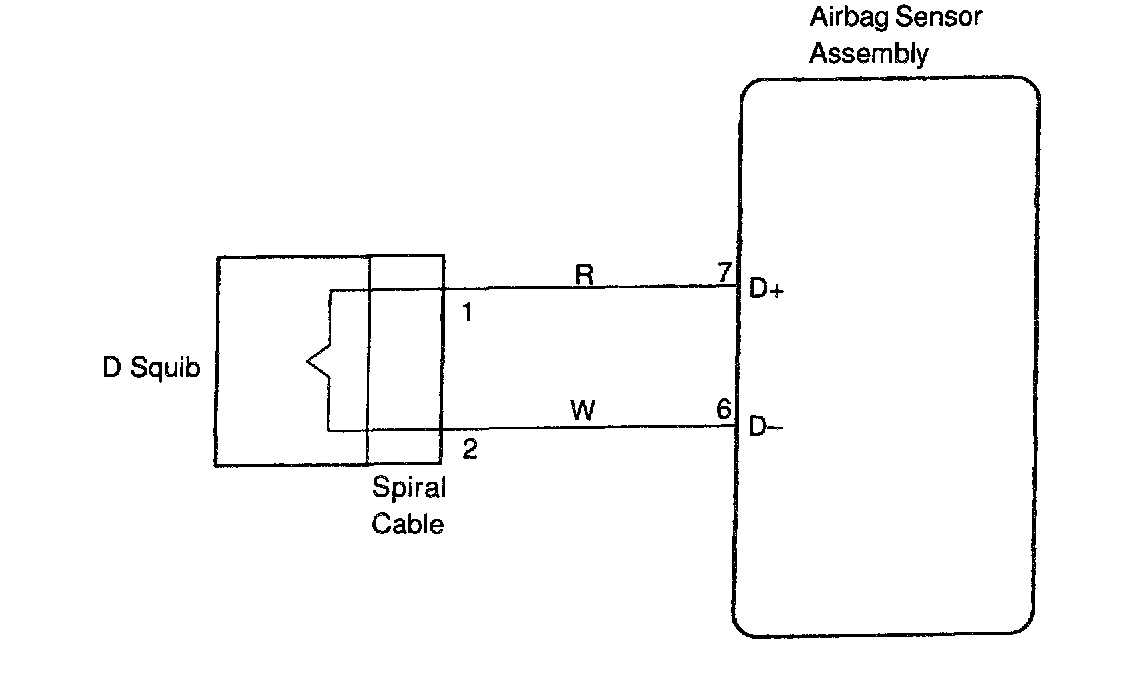

WIRING DIAGRAM

INSPECTION PROCEDURE

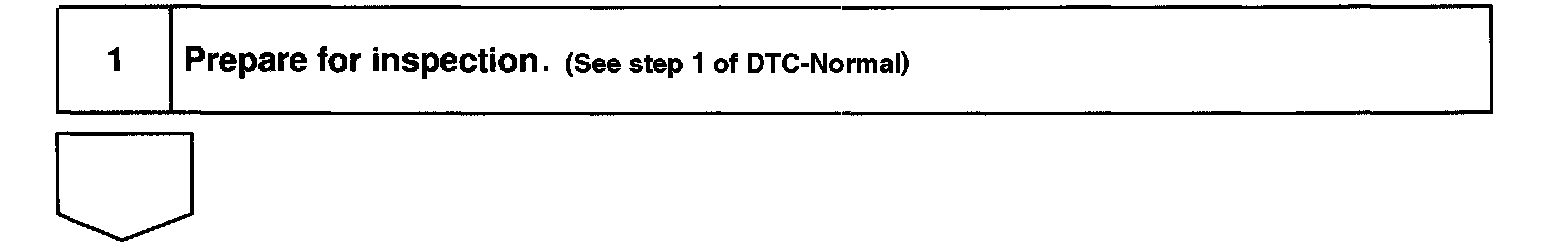

Step 1/Prepare for Inspection

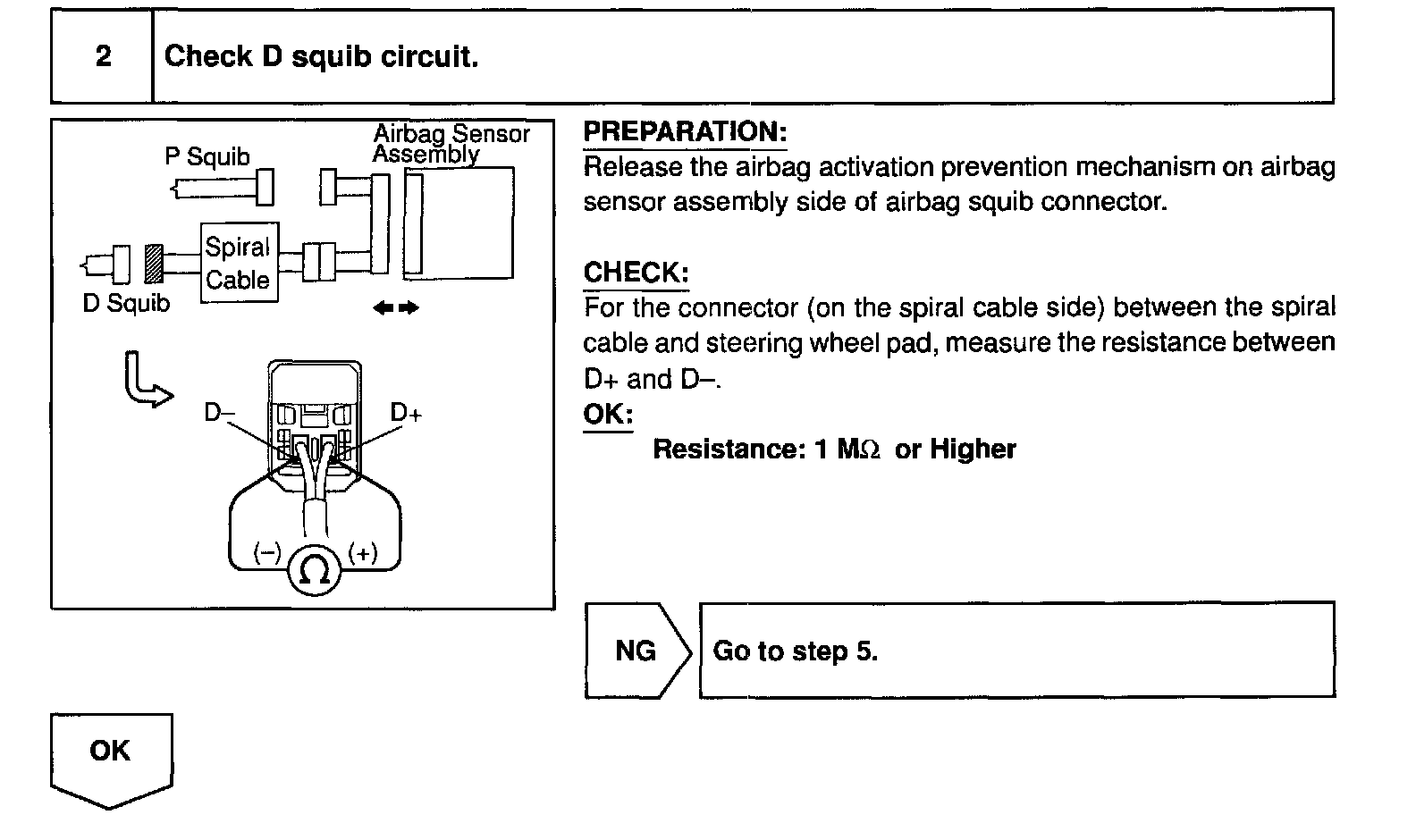

Step 2/Check D squib circuit

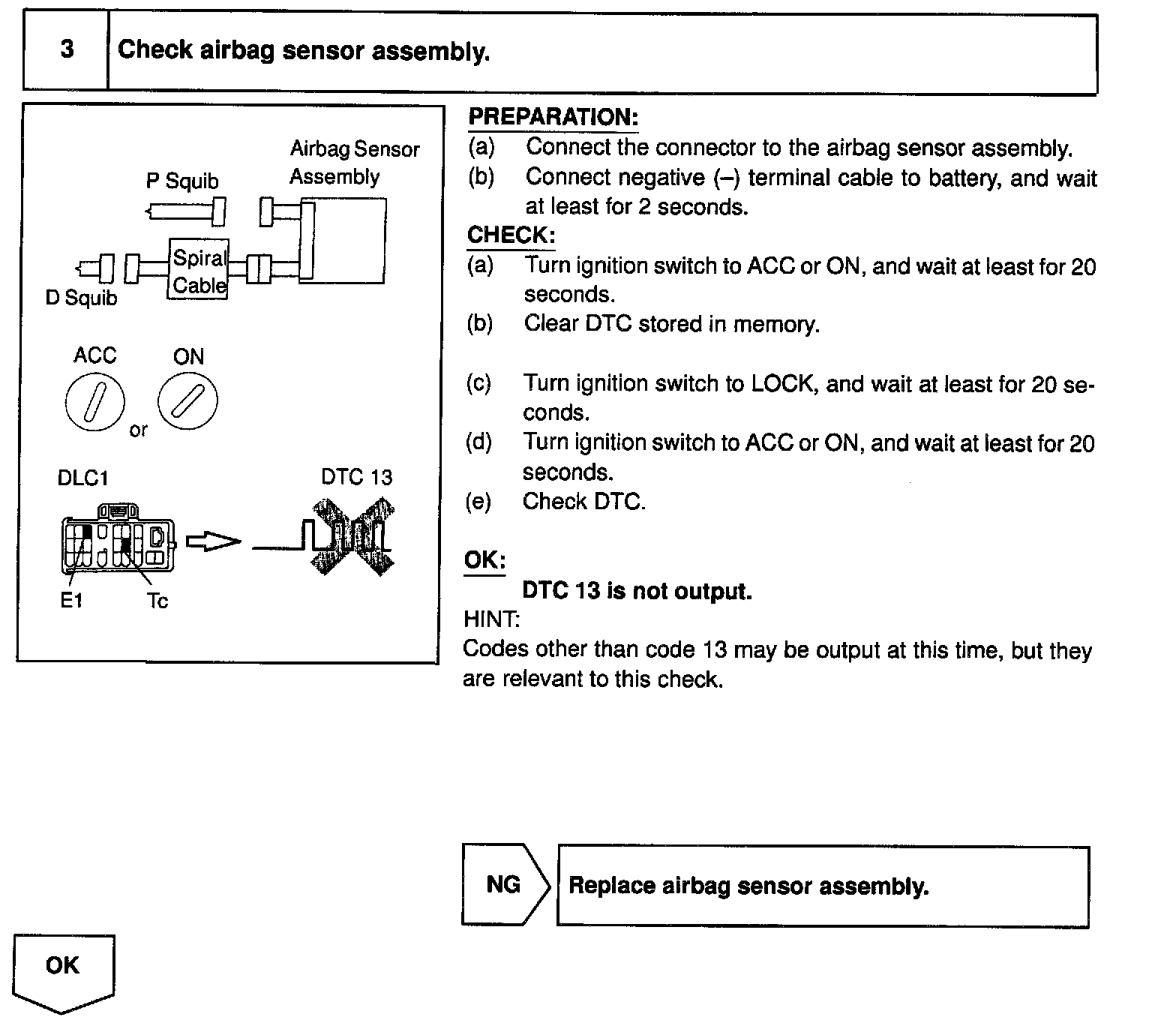

Step 3/Check airbag sensor assembly

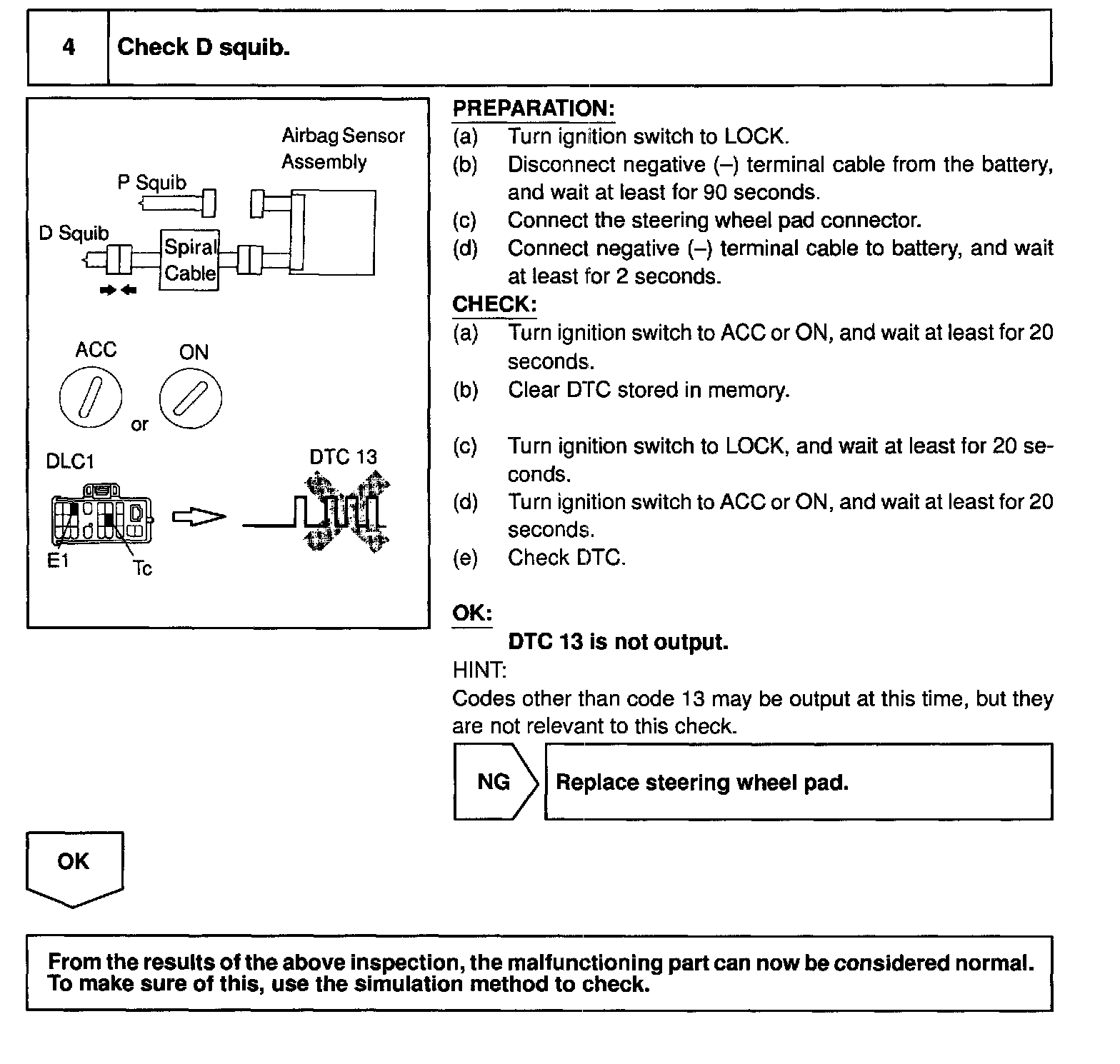

Step 4/Check D squib

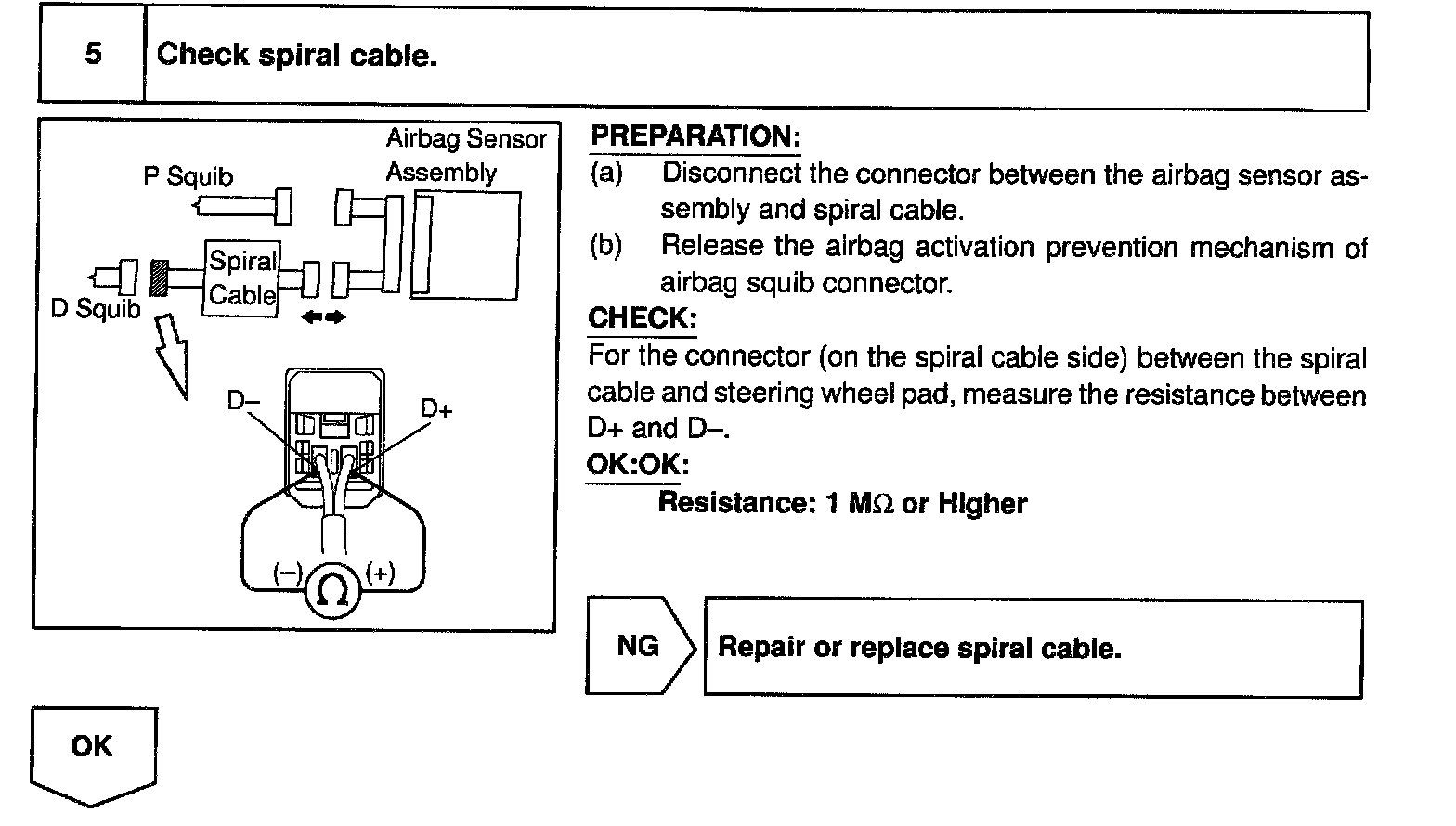

Step 5/Check spiral cable

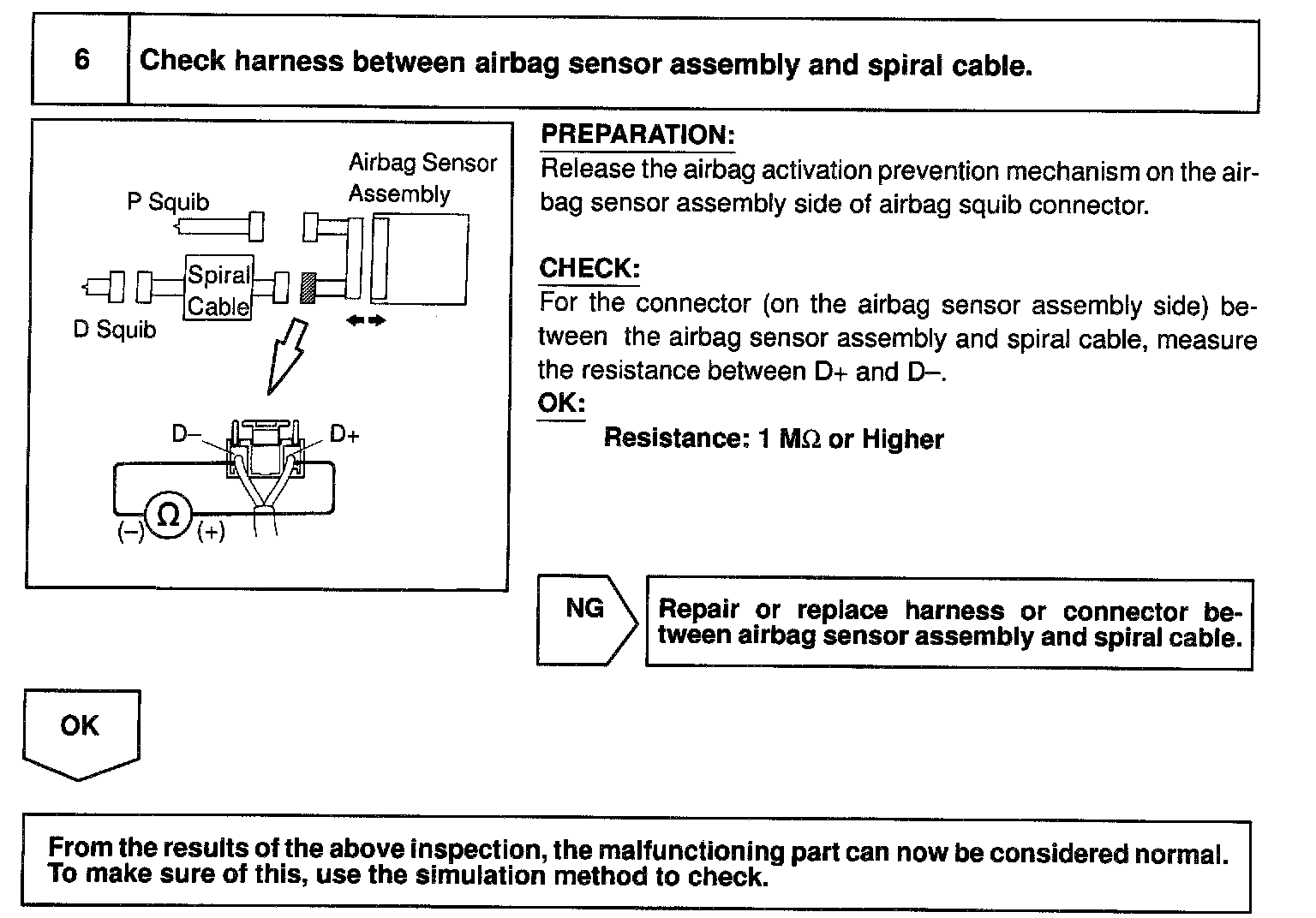

Step 6/Check harness between airbag sensor assembly and spiral cable.
