DTC 11

The squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad and front passenger airbag assembly. It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component. see OPERATION.

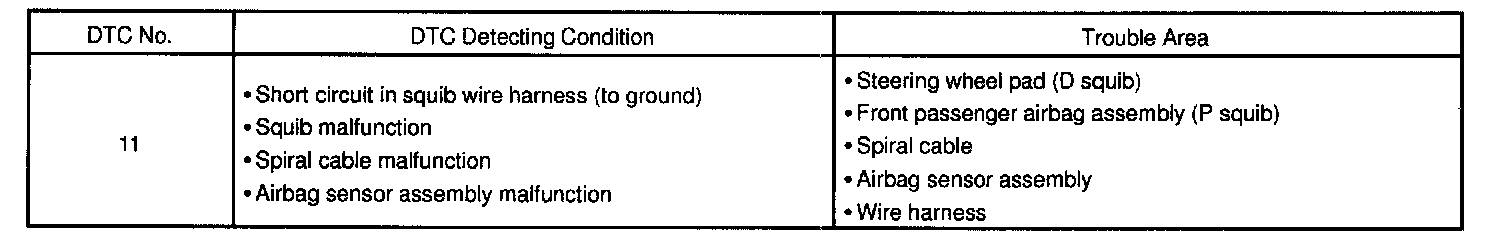

DTC 11 is recorded when a ground short is detected in the squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE




Step 1/Prepare for Inspection

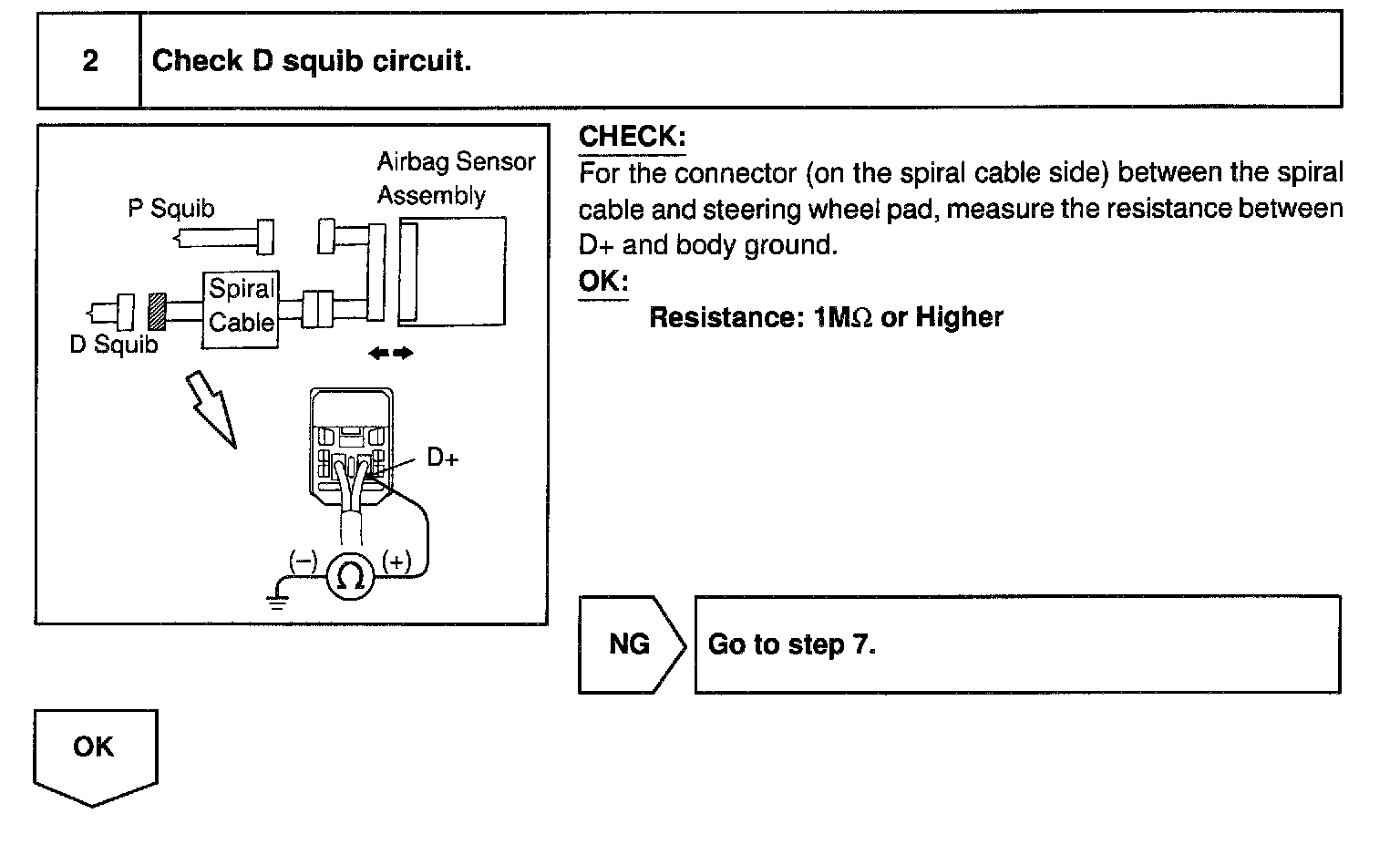

Step 2/Check D squib circuit

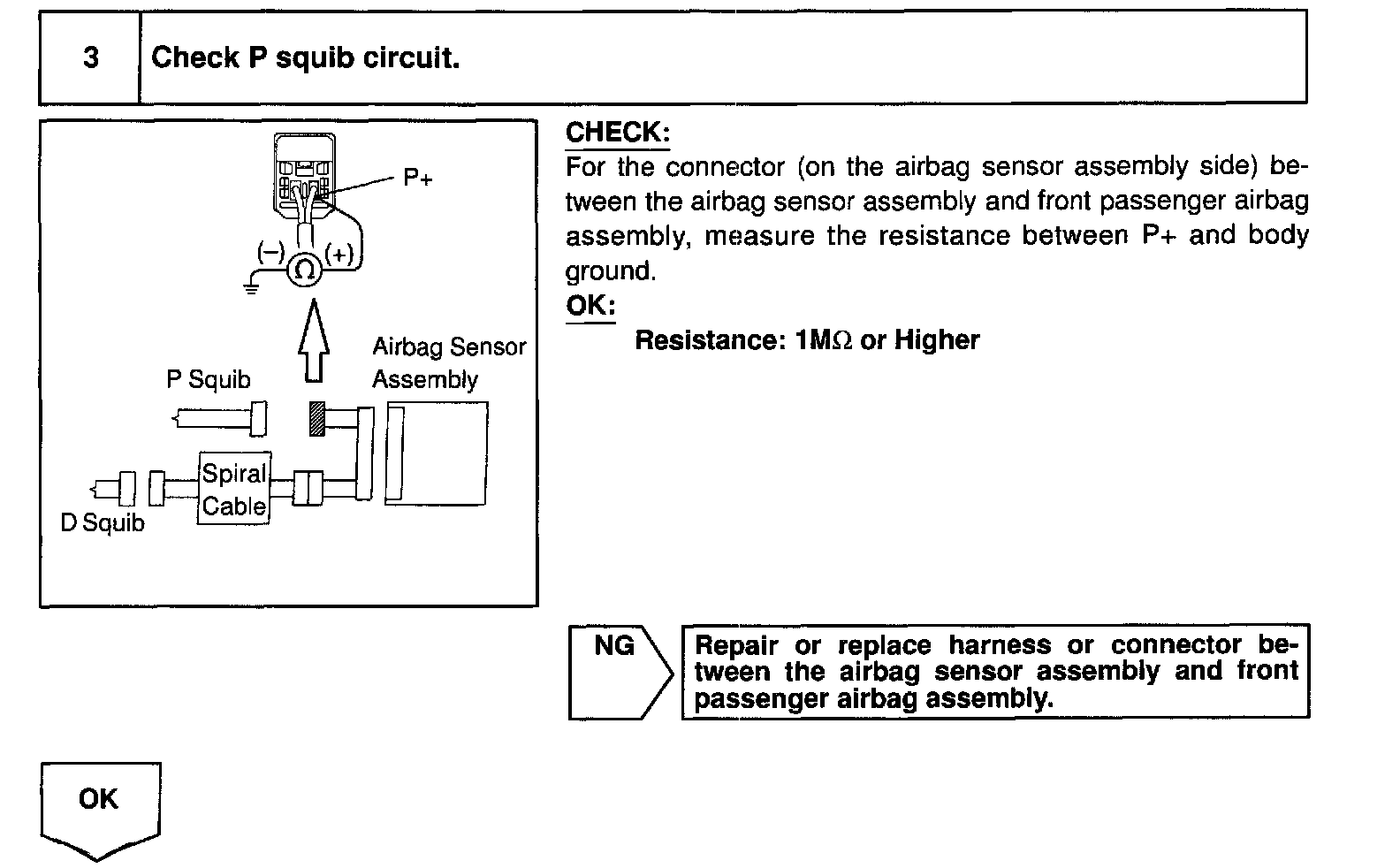

Step 3/Check P squib circuit

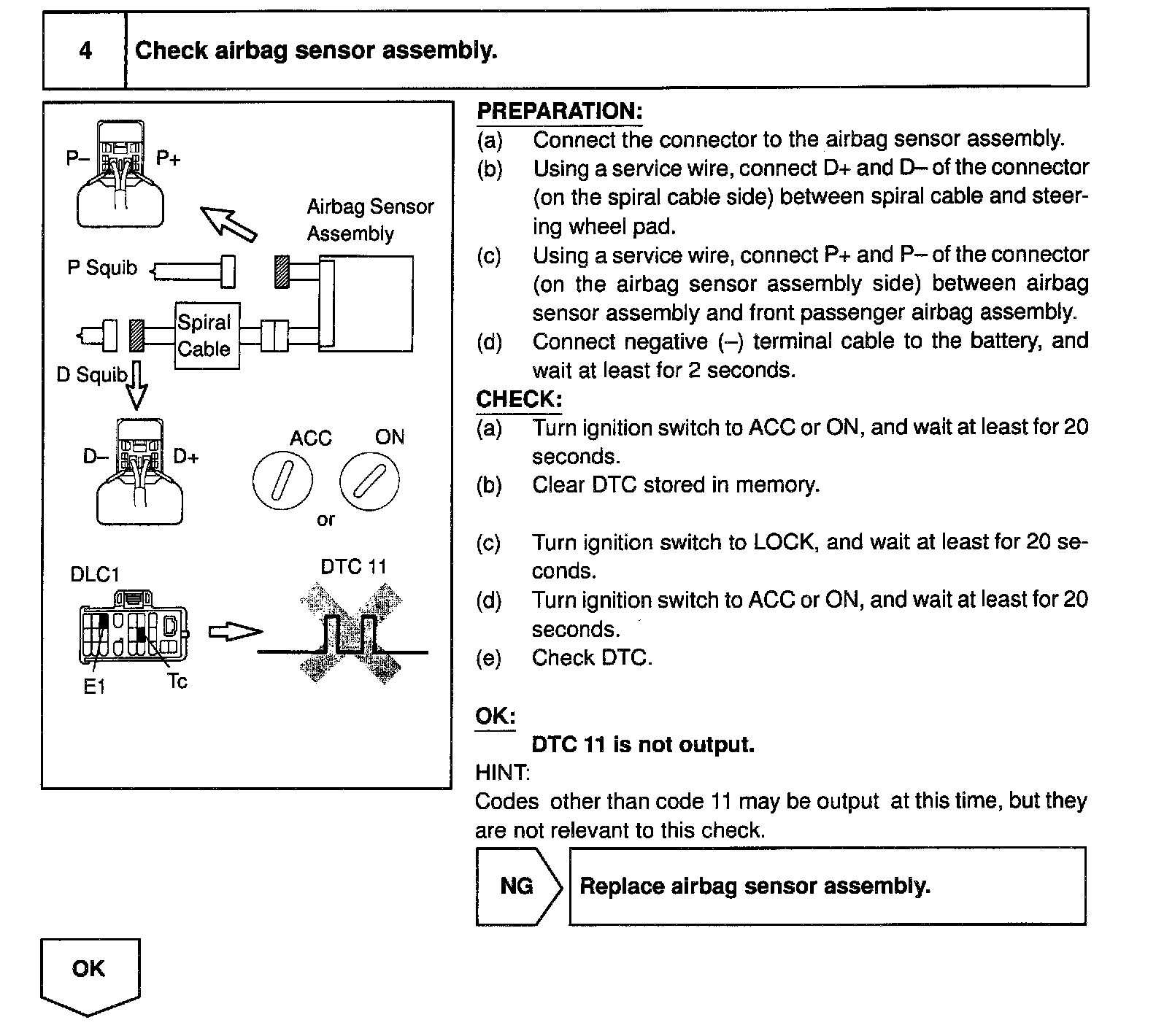

Step 4/Check airbag sensor assembly

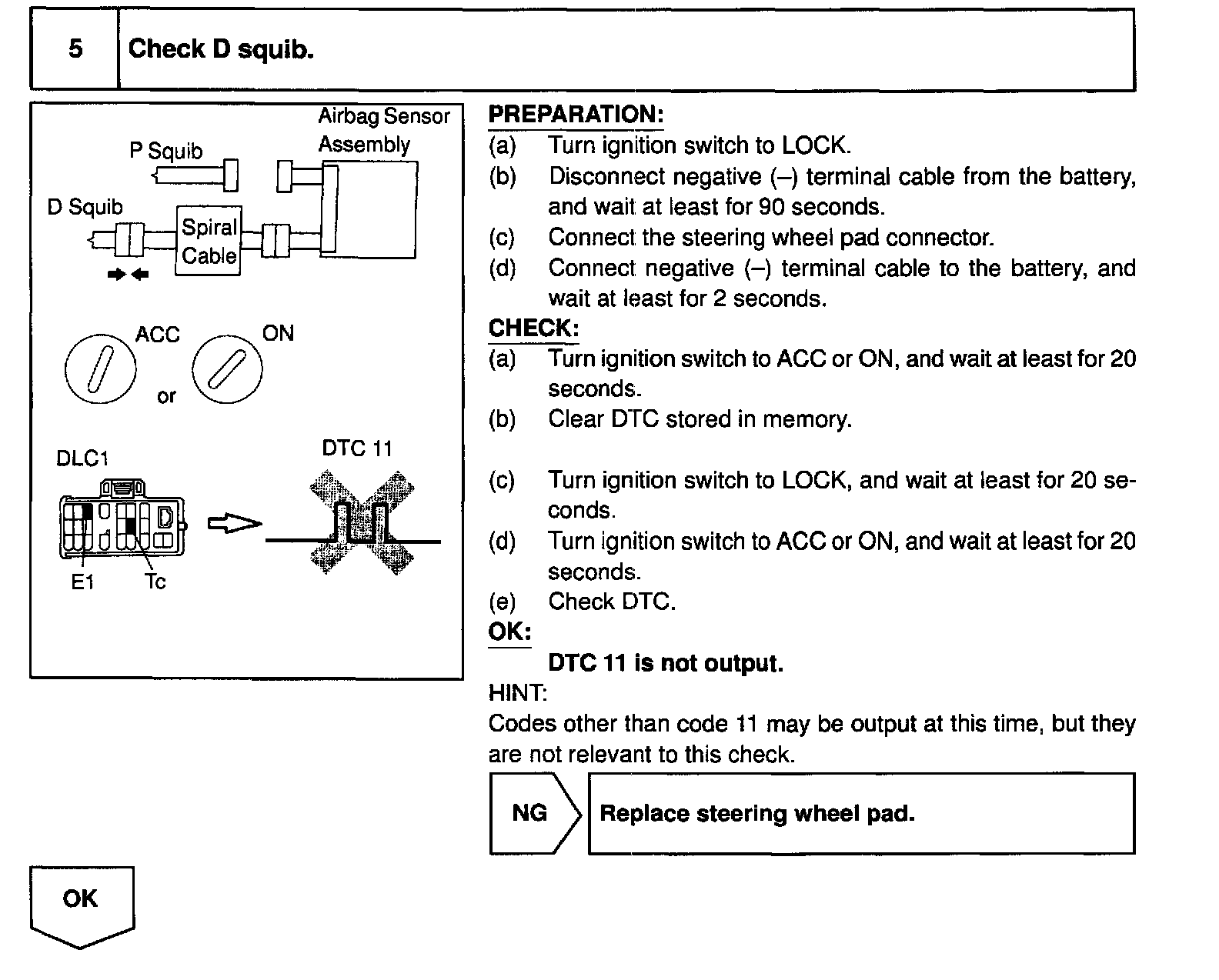

Step 5/Check D squib

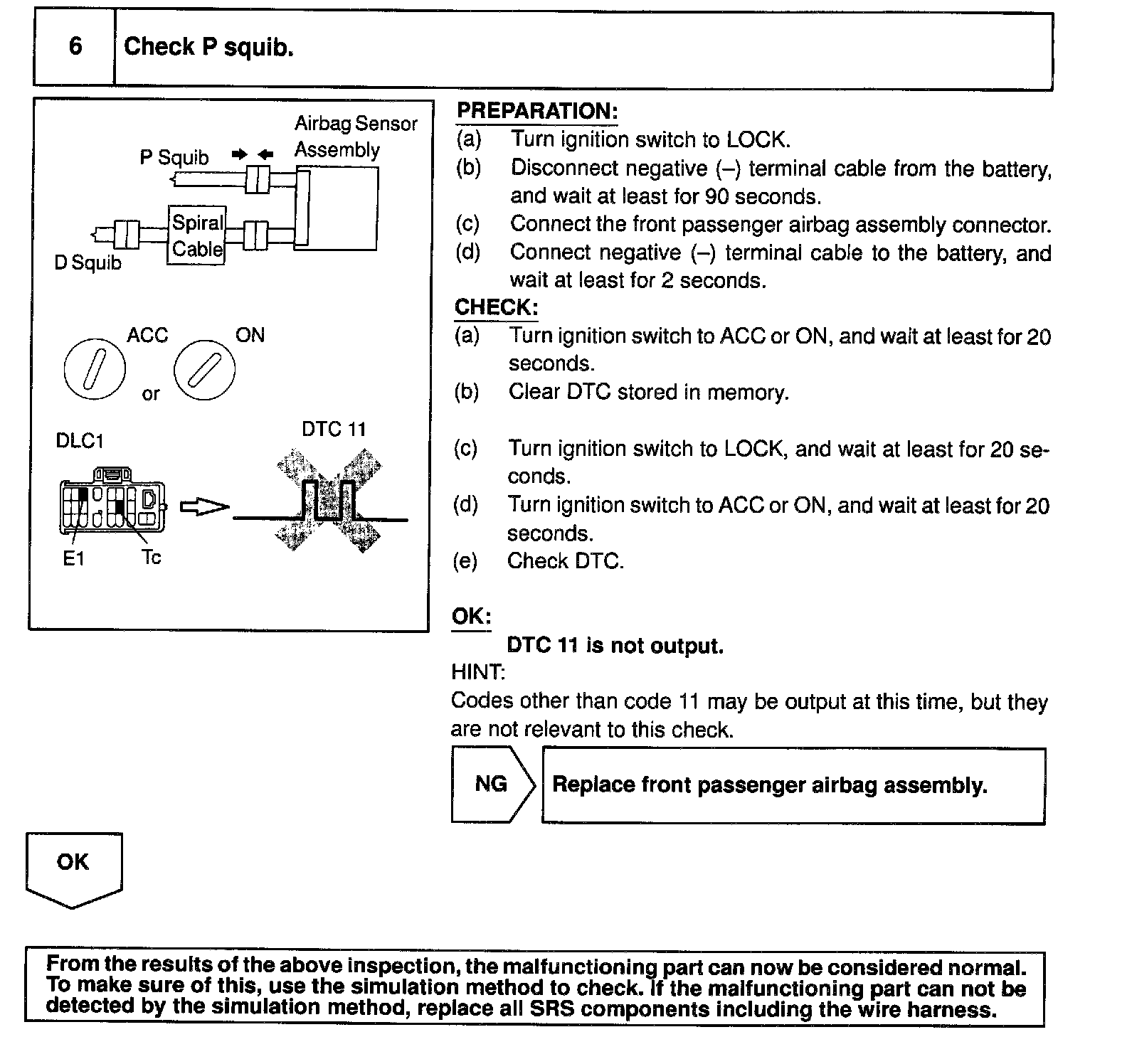

Step 6/Check P squib

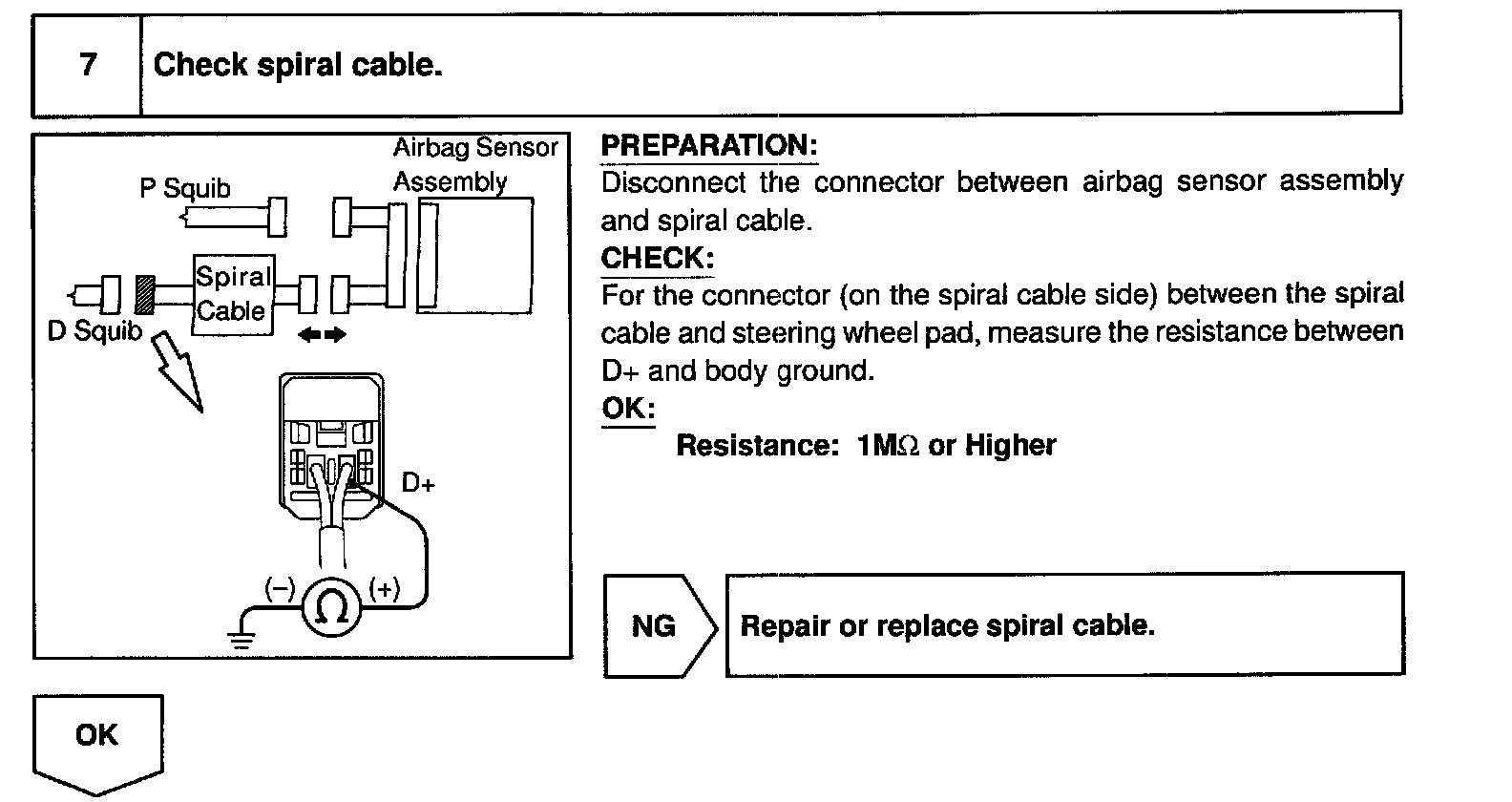

Step 7/Check spiral cable

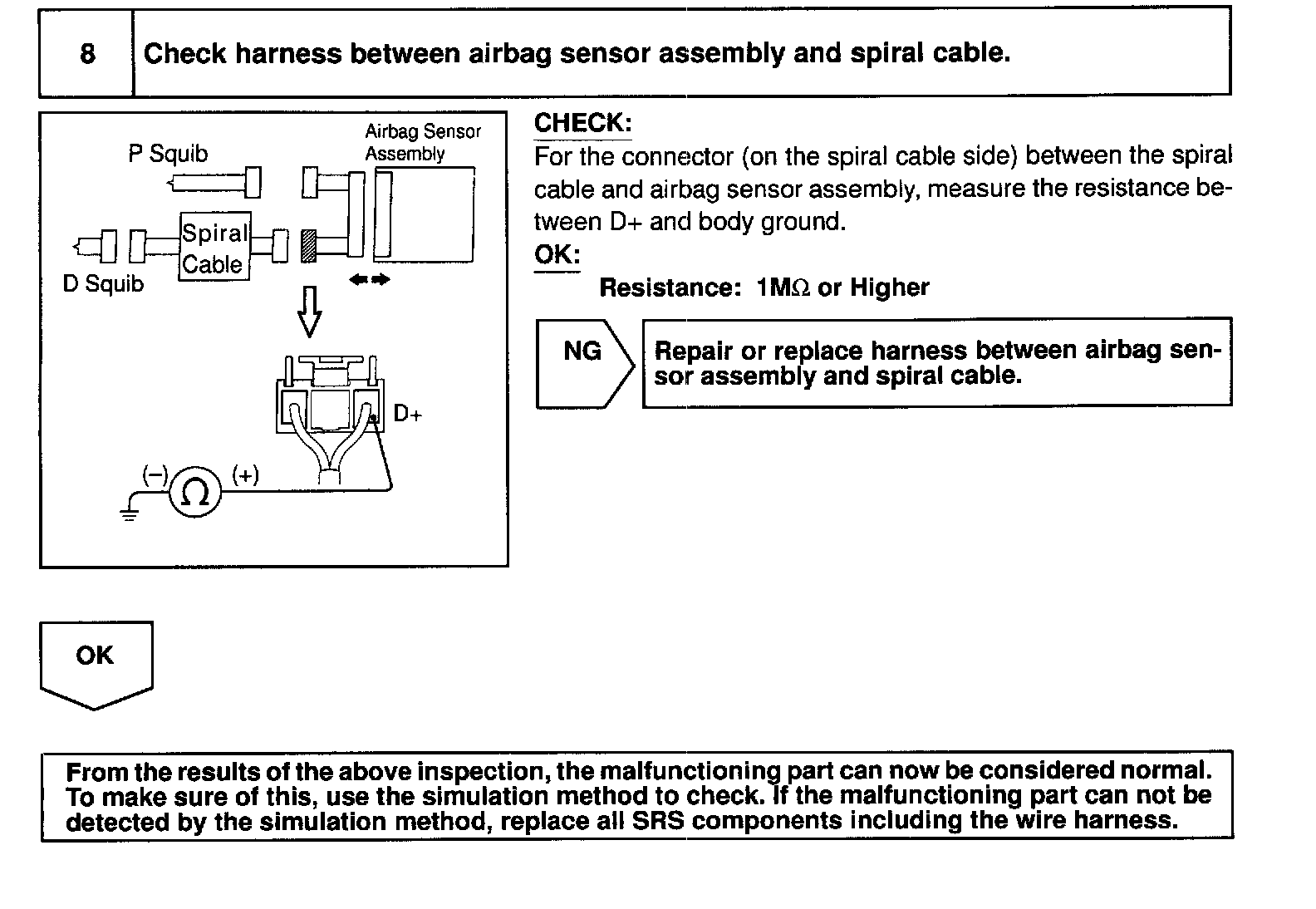

Step 8/Check harness between airbag sensor assembly and spiral cable.
