DTC 53

CIRCUIT DESCRIPTION

The circuit is used to send TRAC control information from the ABS & TRAC ECU to the ECM (TRC+, TRC-), and engine control information from the ECM to the ABS & TRAC ECU (EFI+, EFI-).

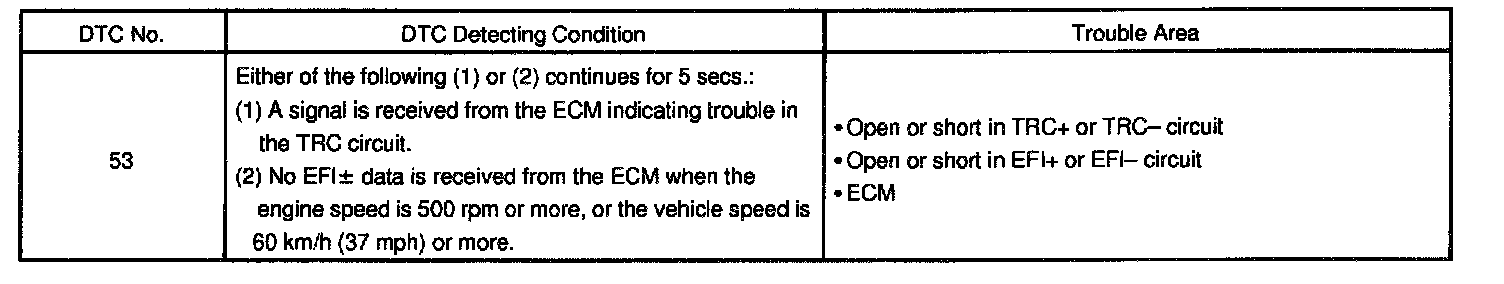

DETECTING CONDITIONS

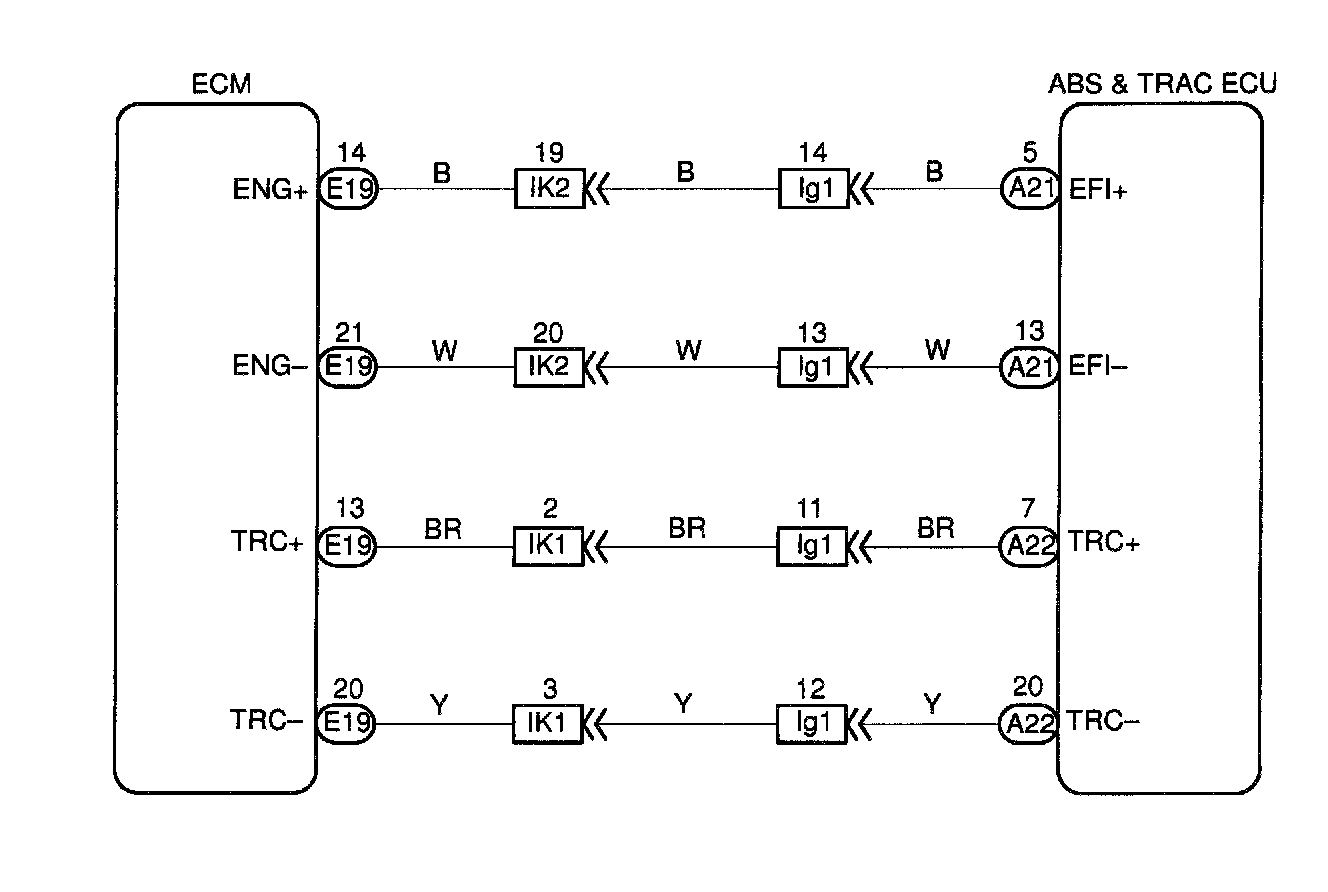

WIRING DIAGRAM

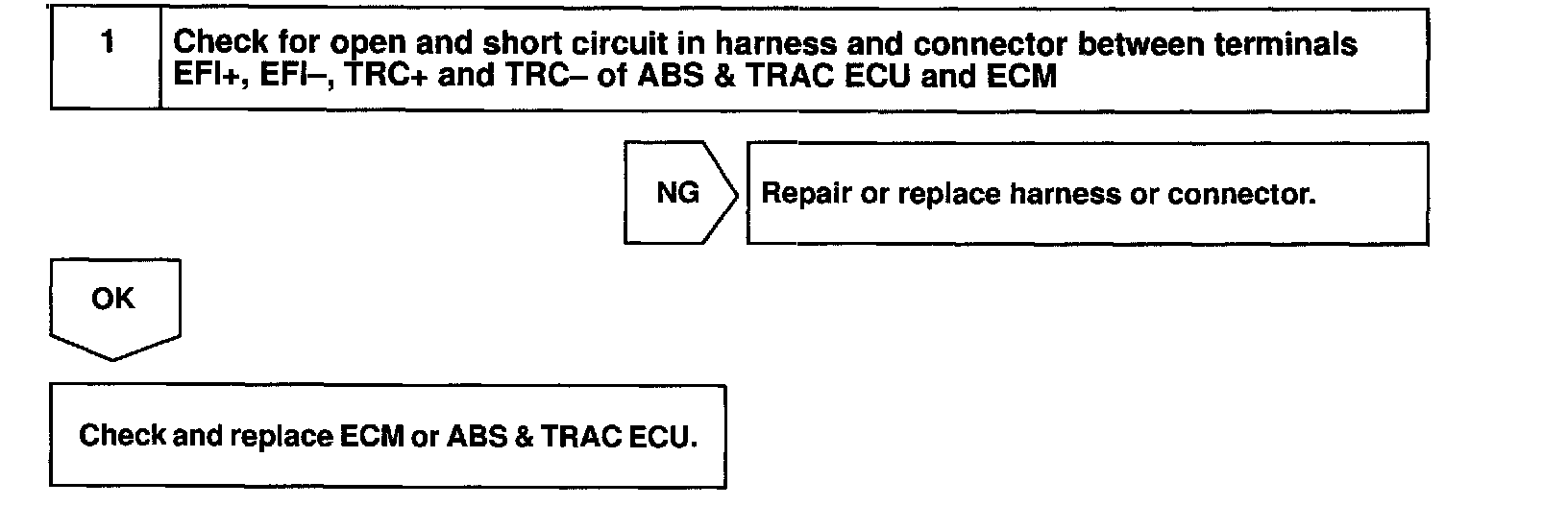

Step 1:

INSPECTION PROCEDURE
