DTC 41

CIRCUIT DESCRIPTION

This is the power source for the ECU and also for the CPU and actuators.

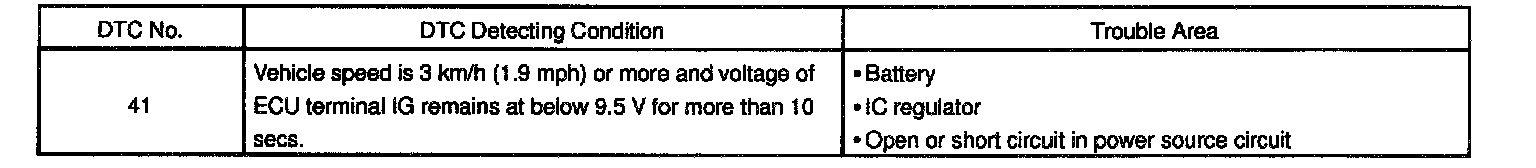

DETECTING CONDITIONS

Fail safe function:
If trouble occurs in the power source circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS (and TRAC) control.




WIRING DIAGRAM

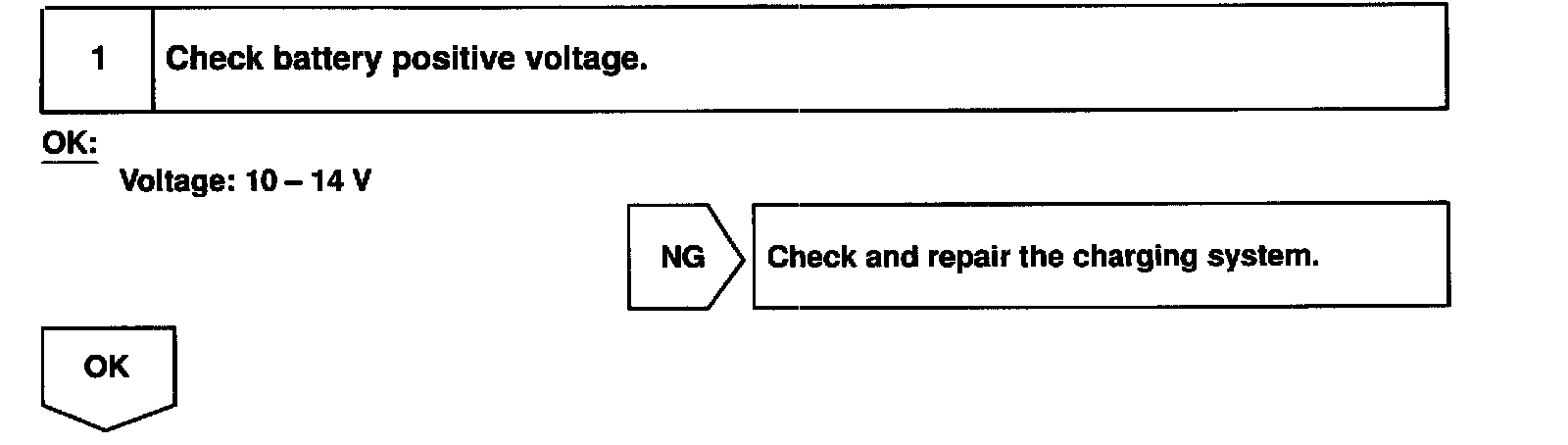

Step 1:

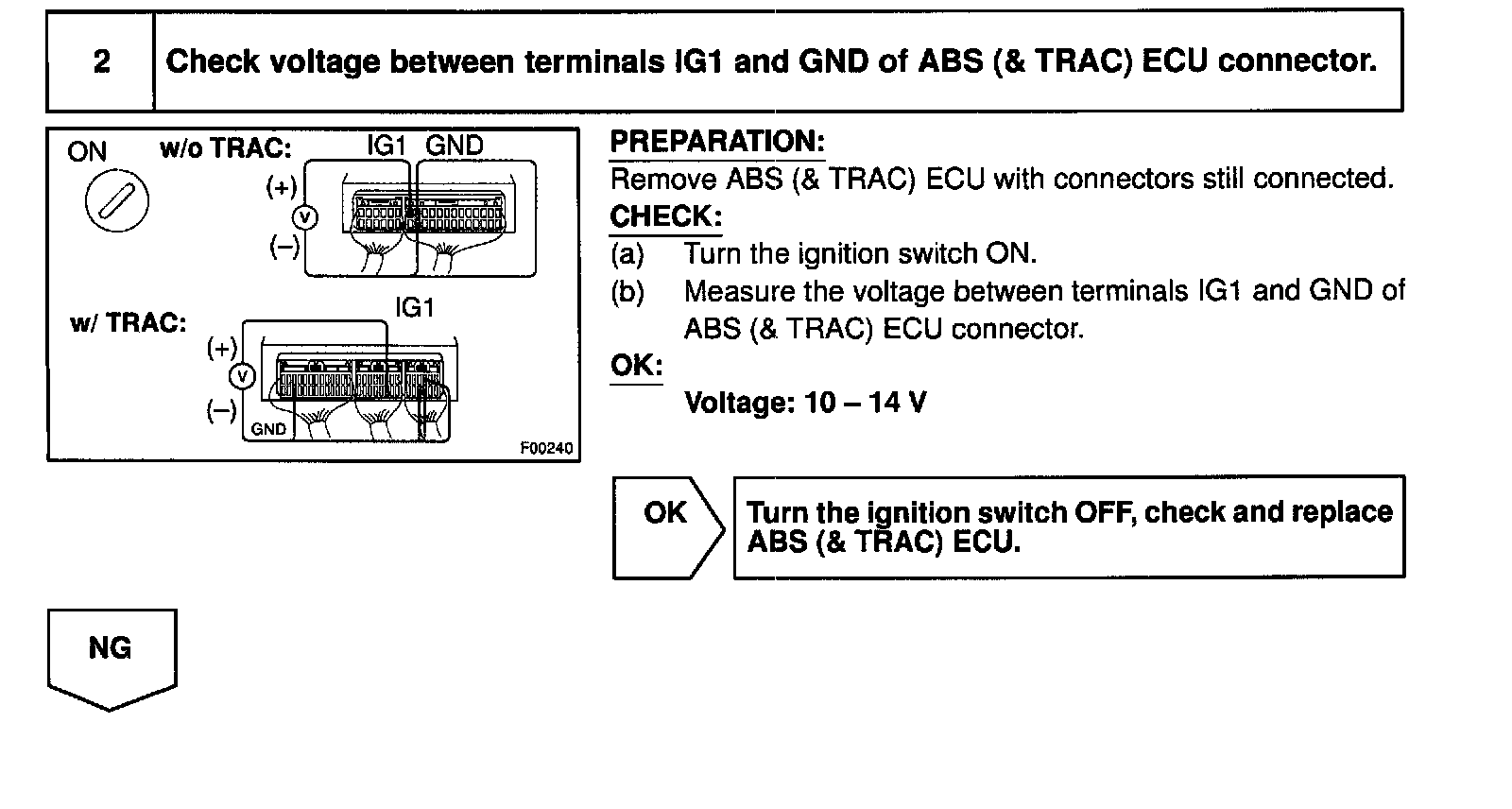

Step 2:

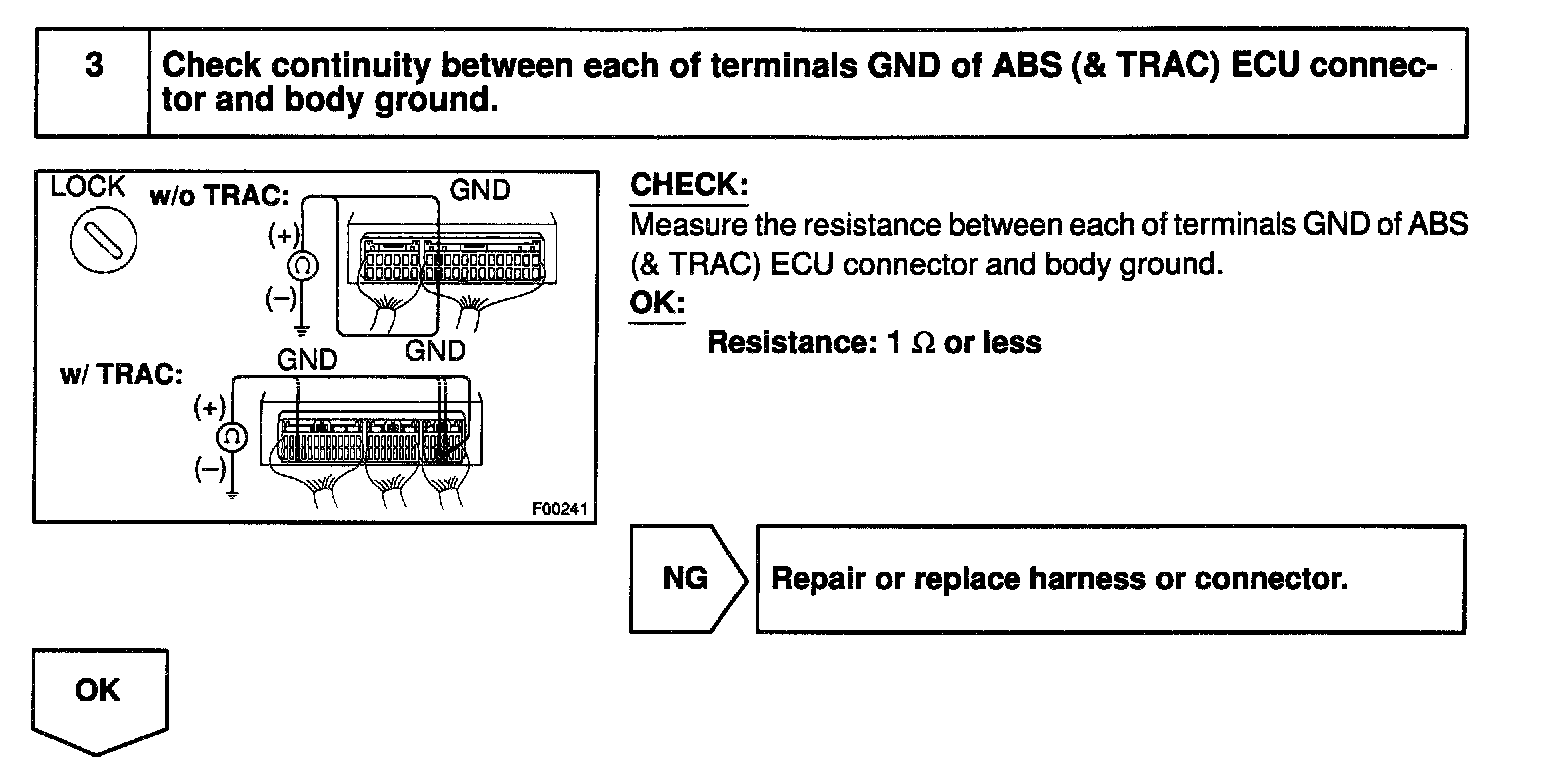

Step 3:

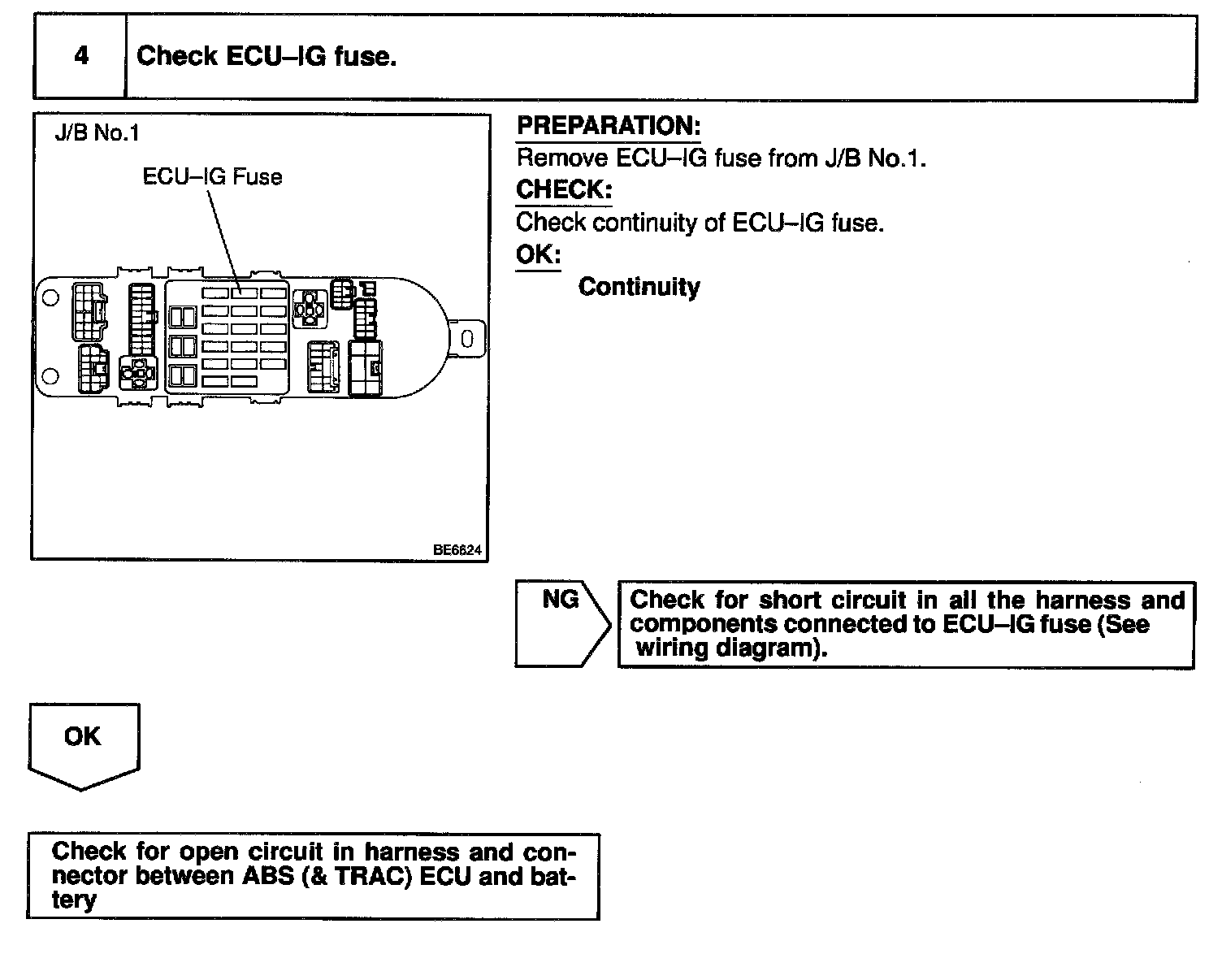

Step 4:

INSPECTION PROCEDURE
